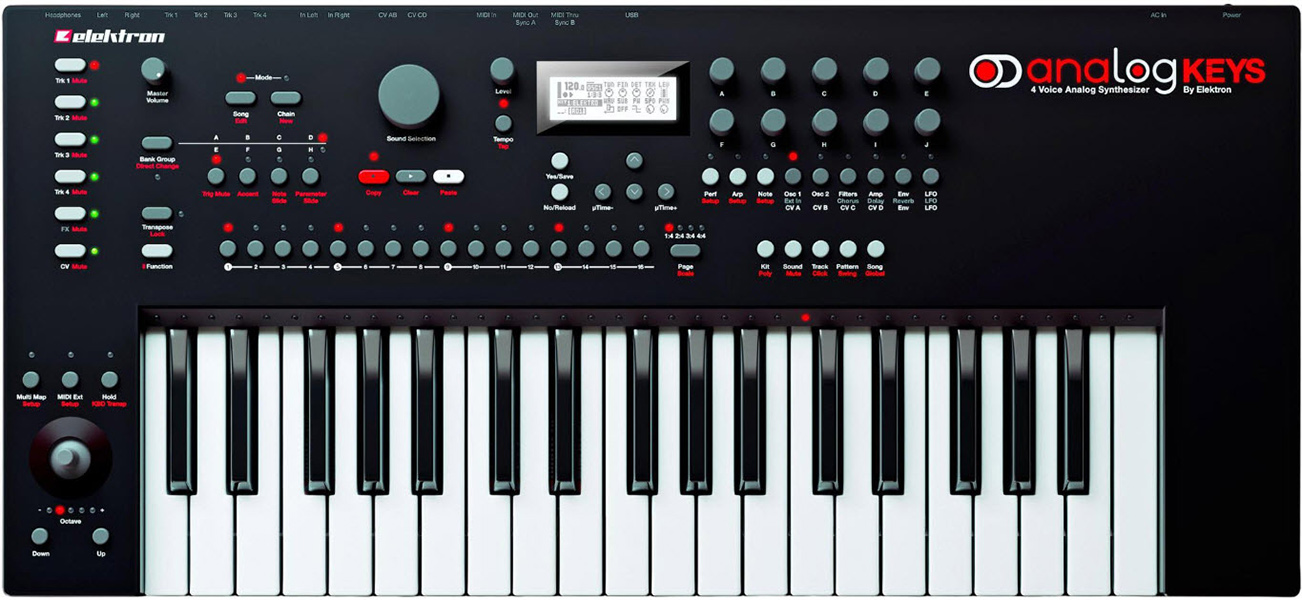

Elektron Analog Keys 4-Voice Synthesizer

OVERVIEW
Compact 37-key analog synthesizer with four voices.


Analog Keys is Elektron's flagship analog synthesizer with digital controls, and unprecedented playability making it the ultimate instrument for the expressive musician. The Analog Keys is a four voice polyphonic analog synthesizer, capable of generating some of the finest basslines, chords, leads, and sounds imaginable. The warm and deep tone represents the pinnacle of analog synthesis and the acclaimed Elektron sequencer stands ready to arrange and warp the analog sounds in real-time. Complete the experience by treating the four voices with incredibly well-crafted master effects. A new world of sounds awaits. Performance optimizedThe Analog Keys is tailor-made for the stage. The 37 semi-weighted keys of the keyboard give instant fingertip control of the analog tones. The special performance mode offers direct access to user-defined parameters, and the joystick, capable of controlling up to fifteen parameters, allows for extreme morphing of sounds. Improvising when playing live has never been this easy. Heart of the rigCompatibility with other instruments is well catered for. Simply press a button to transform the Analog Keys into a MIDI keyboard, ready to control external MIDI gear. Thanks to the dedicated CV sequencer and the CV/Gate and DIN sync outputs, analog instruments of both today and yesteryear can be played, sequenced, and controlled with precision. Use the multitude of control options to breathe new life in vintage and modern rigs alike.




FEATURES


Fully customizable voice control

Create lush chords and huge mono leads
Parameter assignable joystick
4-pole lowpass ladder filter and 2-pole multi-mode filter
Unique effects including Wideshift Chorus, Saturator Delay, Supervoid Reverb and more
Critically acclaimed Elektron step sequencer, full control over synth parameters
Wild modulation possibilites
Massive storage space with +Drive



Get the analog performance advantage, purchase Analog Keys today.



SPECIFICATIONS
Analog Keys 4-Voice Synthesizer


The Sequencer
4 synth tracks
1 FX track
1 CV/Gate track
Up to 64 step per pattern
6 × arpeggiators
Individual track lengths
Swing, slide and accent functions
Track transpose
Micro timing
Parameter locks
Live friendly Performance mode
Sound-per-step change
Instant Pattern, Kit and Sound reload
Full real-time control
Storage
128 Projects
4096 Sounds (+Drive Sound Library)
128 Sounds per Project (Project Sound Pool)
128 Kits per Project
128 Patterns per Project
16 Songs per Project
Send Effects
Wideshift Chorus
Saturator Delay
Supervoid Reverb
Synth voice features (×4)
Fully analog signal path
2 × analog oscillators
Variable waveshape on all waveforms
Oscillator AM and Sync modes
2 × sub-oscillators
1 × noise generator
1 × 4-pole analog lowpass ladder filter
1 × 2-pole analog multi-mode filter
1 × analog overdrive circuit
Filter feedback
2 × assignable LFOs
1 × dedicated vibrato LFO
2 × dedicated waveshape LFOs
1 × amp envelope
2 × assignable envelopes
2 × dedicated LFO fade envelopes
1 × dedicated noise fade envelope
1 × dedicated vibrato envelope
1 × dedicated autobend envelope
3 × individual effect sends
Up to 4 notes of polyphony
Up to 4 part multitimbrality
Up to 4 note unison playback
Full MIDI support
Hardware
37 key velocity sensitive Keyboard with aftertouch
Assignable X/Y joystick with pushbutton
122×32 pixel backlit LCD
MIDI In/Out/Thru with DIN Sync Out
2 × 1/4″ impedance balanced main out jacks
4 x 1/4" stereo separate track audio out jacks
2 × 1/4″ audio in jacks
1 × 1/4″ stereo headphone jack
2 × 1/4″ dual CV/Gate outputs
48 kHz, 24-bit D/A and A/D converters
Flash-EEPROM upgradable OS
USB 2.0 port
Balanced Audio Outputs
Headphones out level: +19dBu (55 Ω )
Main outputs level: +19dBu
Output impedance: 440 Ω unbalanced
Unbalanced Audio Inputs
Input level: +19dBu maximum
Audio input impedance: 9 k Ω
Digital S/N Ratio: 102dBFS (20-20.000Hz)
Separate Track Stereo Outputs
Output level: +19dBu (55 Ω )
Output impedance: 1.2 k Ω unbalanced
Electrical Specifications
Acceptable power supply: 100-250 VAC, 50-60 Hz
Unit power consumption: 14 W typical, 25 W maximum.
Power inlet type: IEC 60320 C8
Recommended power cable type: IEC 60320 C7, rated for 240V and at least 2.5 A.
Physical Specifications
Sturdy aluminium chassis
Dimensions: W660×D309×H93mm (26.0×12.2×3.7″) (including power switch, knobs and rubber feet)
Weight: approximately 5.4 kgs (11.9 lbs)
