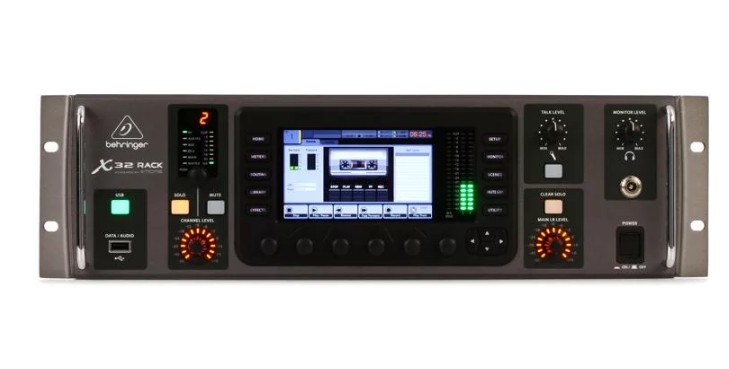

Behringer X32 Rack 40-channel Rackmount Digital Mixer

The Future of Live Mixing
The Behringer X32 Rack will change the way you think about digital mixers. It's packed with the comprehensive control and sound quality you want, such as audiophile-quality mic preamps, but all controls are accessible via your mobile device as this racked X32 has no faders. Every aspect of your mix can be adjusted using the controls on the front of the unit and viewed on the high-resolution 5" color TFT, and Behringer's free iPad and iPhone apps provide total remote operation with no host computer required. You can even use inexpensive CAT 5 cable to run your I/O. Embrace the future of live mixing with the Behringer X32 Rack.

Think virtual
Imagine always being able to mix from the most advantageous spot in the house! Behringer's X32 Rack acknowledges the reality of modern live mixing - that you don't want to be tied down to a fixed front of house mix location. Hear what the audience is hearing at any place in the auditorium. Tweak the mix from the balcony. Adjust the monitors from the performers' perspective. This is live mixing the way it should be — natural and intuitive. The result will be better-sounding shows!
Great-sounding mixes start here
With 16 Midas-designed, fully gain-programmable mic preamps and 40-bit floating-point DSP that delivers virtually unlimited dynamic range with no internal overload and vanishingly low latency, the X32 Rack delivers impeccable sound quality. Behringer didn't stop there — this digital mixer has smart features to make you a sound-mixing hero. Main LCR, six matrix buses, and all 16 mix buses feature inserts, 6-band parametric EQs, and full dynamics processing, plus eight DCA and six mute groups. The virtual FX Rack boasts eight stereo FX slots that include high-end simulations such as Lexicon 480L and PCM70, EMT250 and Quantec QRS. You also get robust scene management for effortless handling of complex productions.
Massive flexibility in three rack spaces
The Behringer X32 Rack gives you massive flexibility in a compact, 3-rack-space chassis. It is 96 x 48 digital snake ready via dual AES50 ports, letting you use inexpensive CAT 5 cable to run your I/O (chaining three S16 Digital Snakes from each port). This protocol features Klark Teknik's SuperMAC networking capability for ultra-low latency and jitter. A USB type-A connector provides file storage for uncompressed stereo recordings and show presets, as well as for convenient system updates. Ultranet connectivity lets you tap into the benefits of Behringer's P16-M Personal Monitoring System. With processing for 40 channels, 25 buses, and up to 152 signal sources, the X32 Rack has the right stuff to handle the big shows.
v3 firmware and software updates bring exciting new features
With v3, the Behringer X32 Rack is more powerful than ever. Auto Mix enables automatic gain sharing, providing increased gain to your main speakers while ducking open mics. This yields a better signal-to-noise ratio without any gating artifacts. Complete X-Touch integration allows direct control of volume, pan, EQ, FX, and more over Ethernet. This is especially useful for X32 Rack and X32 Core users. Set up a full crossover without using a matrix mix. Reverse polarity on your outputs for easy speaker alignment. The X32-Edit app has been completely redesigned, with a new interface, full-screen capabilities, floating windows, configurable fader layers, and more.
Behringer X32 Rack Features:

Auto Mix yields automatic gain sharing and mic ducking
X-Touch integration allows direct control of parameters over Ethernet
Set up a full crossover without using a matrix mix
Reverse polarity on your outputs for easy speaker alignment
Redesigned X32-Edit app features a new interface, full screen capabilities, floating windows, configurable fader layers, and more
40-input channel, 25-bus, 3U rack-mountable digital mixer for live and installed sound application
16 Midas-designed, fully gain-programmable mic preamps for audiophile sound quality
Eight XLR outputs plus 6 additional line I/O
Phones connector and talkback section with XLR mic input
32 x 32 channel USB 2.0 audio interface
iPad and iPhone apps for total remote operation available free of charge (no host PC required)
High-resolution 5" day-viewable color TFT for easy viewing of workflow components and parameters
Main LCR, 6 matrix buses, and all 16 mix buses featuring inserts, 6-band parametric EQs, and full dynamics processing, plus 8 DCA and 6 mute groups
Virtual FX Rack featuring 8 stereo FX slots includes high-end simulations such as Lexicon 480L and PCM70, EMT250 and Quantec QRS
40-bit floating-point DSP features virtually unlimited dynamic range with no internal overload and vanishingly low overall latency (0.8ms)
Robust scene management for easy handling of complex productions
96 x 48 digital snake ready via dual AES50 ports, featuring Klark Teknik's SuperMAC networking capability for ultra-low jitter and latency
USB type-A connector provides file storage of uncompressed stereo recordings and show presets, plus system updates
Ultranet connectivity for Behringer's P16-M Personal Monitoring System (sold separately)
Networked remote control via Ethernet for show setups with on-screen software editor
Built-in expansion port for audio interface cards or digital networking bridges
MIDI In/Out for remote scene recall or controlling other MIDI gear
Future firmware updates downloadable from behringer.com free of charge

Tech Specs

Type:Digital
Channels:40
Inputs - Mic Preamps:16 x XLR
Phantom Power:32 x Channels
Inputs - Line:6 x TRS (Aux)
Inputs - Other:2 x RCA
Outputs - Main:8 x XLR
Outputs - Other:2 x RCA (Aux), 6 x TRS (Aux), 2 x TRS (Monitor)
Inputs - Digital:2 x AES50, 32 x USB (96 Total Channels)
Outputs - Digital:2 x AES50, 32 x USB (96 Total Channels)
Aux Sends:Via Software
Send/Return I/O:Via Aux
Busses/Groups:25 Total (16 x Bus, Main LCR, 6 x Matrix)
Channel Inserts:Via Aux I/O
Talkback:Yes
Data I/O:Ethernet (X-Touch remote features), USB 2.0, MIDI (DIN)
USB:1 x Type A, 1 x Type B
Computer Connectivity:USB (32 x 32)
I/O Expansion Slots:1 x Slot
Headphones:1 x Stereo
EQ Bands:6-band Parametric
Effects:Yes (8 x Stereo)
DAW Control:Yes (via Software)
Rackmountable:Yes
Height:5.25"
Depth:11.3"
Width:19"
