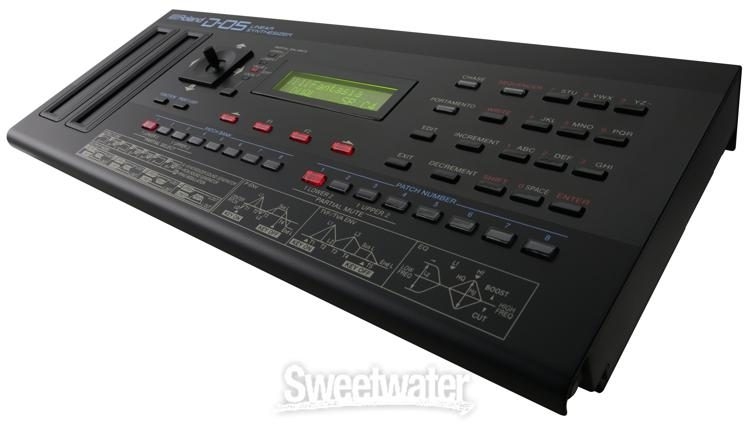

Roland D-05 Linear Synthesizer

Re-creating an Iconic Digital Synth
The Roland D-05 Linear Synthesizer module brings back the original Roland D-50 down to every sonic detail. It's the iconic synth that helped shape the sound of late-'80s film scores and electronic music, fully re-created with Roland's Digital Circuit Behavior modeling technology. It features all the original presets (plus lots of cool new ones), and is even compatible with D-50 patches. Complete with a 64-step polyphonic sequencer and arpeggiator for a bottomless well of creative potential, the Roland D-05 Linear Synthesizer module is sure to gratify old and new Roland fans alike.














Now Playing: The Sounds of the Roland D-05 with Daniel Fisher







Roland Boutique D-05 Linear Synthesizer







Roland Boutique D-05 Walkthrough with Legowelt






"Unabashedly digital"
The Roland D-05 module can proudly claim one of the most highly acclaimed digital lineages in all of synthesis. Think of a famous song or film score from the late '80s/early '90s, and a Roland D-50 likely played a prominent role somewhere in the arrangement. Its unique character comes from its method of combining sampled attack waveforms with synthesized sustaining waveforms, and here at Sweetwater we've yet to hear anything else that sounds quite like it.






Built-in sequencer and arpeggiator
Even before you hook up your favorite controller, the Roland D-05 module offers a ton of creative potential with its built-in 64-step sequencer and arpeggiator. They're great for exploring the D-05's sound design capabilities with a sequence running, and they're also key to creating some of those animated soundscapes and evolving pads the D-50 was known for.

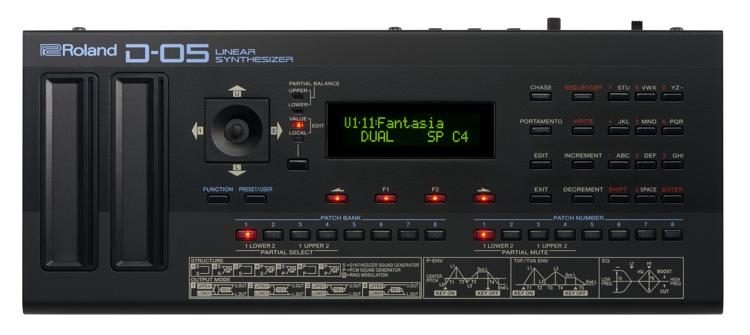

Authentic interface and true D-50 compatibility
Fans of the original D-50 will feel right at home with the D-05 module, complete with a joystick for on-the-fly sound manipulation. And because the D-05 module is a spot-on re-creation of the original D-50, it can even load D-50 patches. Speaking of patches, the D-05 module includes all of the original patches from the D-50, as well as a wide range of new sounds to explore.






Roland D-05 Linear Synthesizer Module Features:

Perfect re-creation of the original D-50 digital synthesizer from 1987
Digital Circuit Behavior modeling and authentic user interface for complete accuracy
Combines PCM sample-based attack waveforms with synthesized sustained waveforms, with ring modulation available
Includes original D-50 sounds plus lots of new ones, and can even load D-50 patches
Built-in polyphonic 64-step sequencer and arpeggiator
Completely portable, with battery power (4 x AA) and built-in speaker
Compatible with Roland Boutique series accessories like the K-25m keyboard unit (sold separately)
Built-in effects (reverb, chorus) and EQ





Tech Specs



Type
D-50 based Linear Synthesizer


Sound Engine Type(s)
Sample with Synthesis Digital Ciruit Behavior engine


Polyphony
16 Notes


Other Controllers
Joystick, 2 x Ribbon controllers


Number of Presets
64 x 6 presets, 64 x 8 user patches


Expansion
Compatible with original D-50 patches


Effects Types
Reverb, Chorus, EQ


Arpeggiator
Yes


Sequencer
64 steps

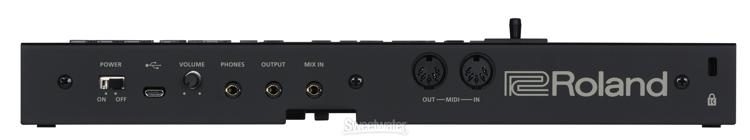

Analog Inputs
1 x 1/8" (mix in)


Analog Outputs
1 x 1/8" (main out), 1 x 1/8" (headphones)


MIDI I/O
In/Out


USB
1 x Type Micro-B


Features
Built-in mini speaker, compatible with K-25m keyboard


Power Supply
USB Bus power / 4 x AA bateries


Power Usage
500mA


Height
1.81"


Width
11.81"


Depth
5.06"


Weight
2 lbs.


Manufacturer Part Number
D-05
