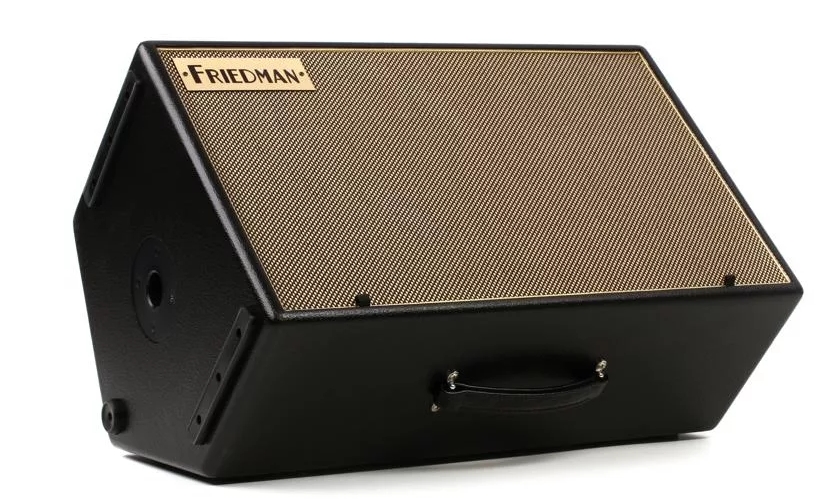

Friedman ASM-12 500-watt 1x12 Active Modeler / Profiler Monitor

Description
The Friedman ASM-12 powered monitor was designed and voiced for use with today’s guitar amp modelers and profilers including Fractal Audio Axe-Fx, Kemper Profiler, Line 6 HD Series and others. The ASM-12 delivers rich authentic tones, allowing you get the most out of these systems in live use and playback applications
The ASM-12 features a Celestion 12″ loudspeaker with a 2.5″ edge wound voce coil and a premium Celestion high frequency compression driver. At the heart of the ASM-12 is a robust 500w Bi-Amp Class-G amplifier that is anything but digital. This proprietary amplifier design delivers rich, full tone and a wide frequency response making it suited for backline, stage monitoring or even as your main PA speaker.
Key features include: Bi-Amp power module with high efficiency Class G low frequency amplification with a high current output stage and custom signal processing; clip/limit, thermal, and short circuit protection; line level output for linking multiple speakers ; optimized acoustic designs using a PETP film compression driver diaphragm; heat vented low frequency drivers; and a hand crafted in the USA, sturdy Baltic birch construction. Controls include level knob, low-cut filter switch, ground lift and power switches. The ASM-12 was designed to operate on the floor as a stage monitor or to be pole mounted on a 1 1/2″ diameter speaker stand.
The Friedman ASM-12 powered loudspeaker was designed using advanced acoustic and audio techniques with premium components, comprehensive protection circuitry, and robust construction to provide years of consistent, reliable performance.
SPECIFICATIONS

Configuration: 12” 2-Way Active Stage Monitor for use with modelers/profilers
Assembly: Made in USA using premium worldwide components
Low Frequency Transducer: Celestion – 12” speaker with 2.5” edge wound voice coil
High Frequency Transducer: Celestion PETP film compression driver with 1.75” voice coil
Frequency Range: 50Hz – 20kHz
Frequency Response: 58Hz -18kHz
High Frequency Dispersion: 75° conical
Maximum peak SPL: 129dB
Power Output: LF: 270Wrms Class G / HF: 80Wrms Class AB+B
Maximum total burst power*: 500W
Input Impedance: 20k Ohm Balanced / 10k Ohm Unbalanced
Electronic Crossover: 4th order
Low Cut Filer (switchable): 3rd order Butterworth @ 100Hz
Controls: Level knob , Low-cut filter switch, Ground lift switch
Power switch, AC fuse, 115/230V switch Indicators Power Power, Protect, Limit, Signal
Cooling: Convection
Amplifier Protection: Short circuit, Clip-limiter, Overheat mute
SOA output stage, Driver DC protection
Subsonic filter, Turn-on mute and soft ramp
Turn-on inrush current limiting
Power Consumption @: 1.7A/0.85A 115Vac/230Vac
(1/8 power pink noise): 150VA
Connectors: Balanced female XLR input / Balanced male XLR link output
Input Sensitivity **: 775mV (0dBu)
Enclosure: Black Warnex® painted, Baltic birch plywood construction
Hardware: Strap handle, Rubber feet / Rubber Strips
Pole mounting cup, Detachable black grille
Dimensions: 26.5” H x 16.5” W x 16” D
Weight: 52 lbs.
