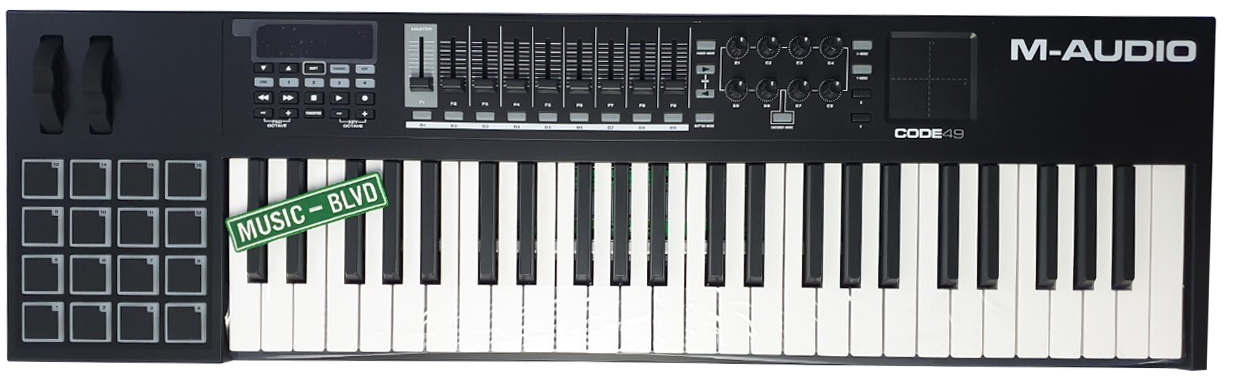

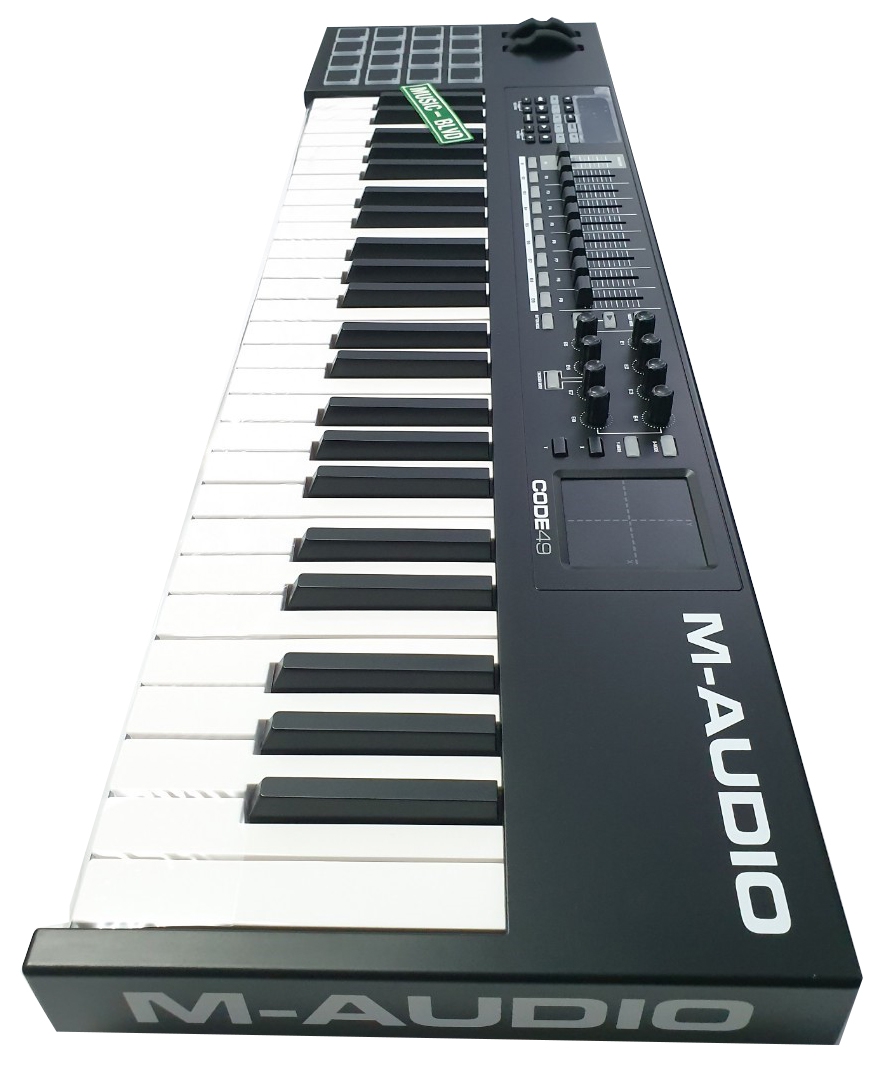

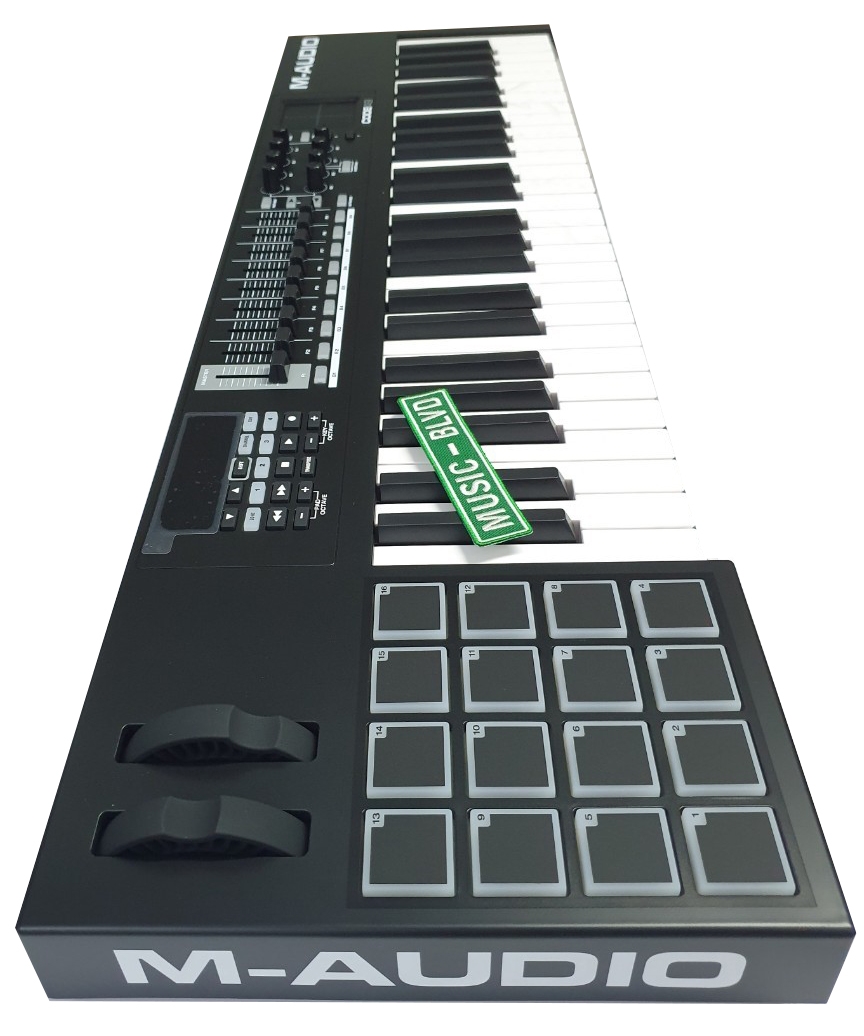

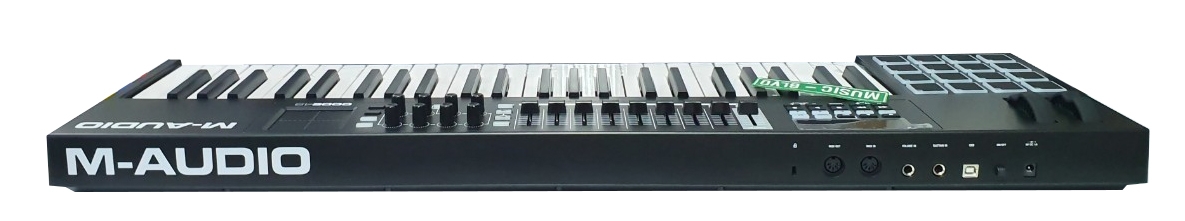

M-Audio Code 49 49-Key USB/MIDI Keyboard Controller with X/Y Touch Pad (Black)

M-Audio CODE 49 BLACK overview







The black Code 49 from M-Audio is a USB bus-powered MIDI keyboard controller that features 49 semi-weighted keys, 16 velocity-sensitive backlit trigger pads, and an X/Y touch pad. This controller is ideal for keyboardists, producers, and composers; it can be used in the studio or onstage.
Featuring a portable yet flexible design, the Code 49 is fitted with assignable pitch & mod wheels, knobs, and buttons. The keyboard can be split into four zones and features assignable faders, while the assignable transport buttons allow you to control your DAW's transport with Mackie Control and HUI modes. Additionally, the controller features sustain & volume pedal inputs and is USB-powered with 5-pin DIN I/O, which allows for sending MIDI data from your computer sequencer to your favorite hardware synths. The Code 49 includes Ableton Live Lite, Hybrid 3.0, Loom by AIR Music Technology, and it ships with a USB cable.






49 full-size, velocity-sensitive keys with aftertouch and four assignable zones for splits and layering
Fully assignable XY pad for HID control and a unique way for controlling multiple parameters in virtual instruments
16 x fully assignable velocity-sensitive trigger pads for beat production, clip launching, and more
8 x assignable 360° encoders for manipulating your DAW, virtual instruments, and plugins
9 x assignable faders let you control your DAW, virtual instruments, and plugins
9 x assignable buttons let you assign keyboard hotkey and MIDI messages for controlling your DAW and virtual instruments
Mackie/HUI transport control enables for a simple setup with the most popular DAWs
LCD provides instant parameter feedback
Sustain and volume pedal input for further creative control
USB-powered with 5-pin MIDI in and out allows for sending MIDI from computer sequencers to your favorite analog synth
Includes Ableton Live Lite
Includes Hybrid 3.0 and Loom by AIR Music Technology




M-Audio CODE 49 BLACK specs






Keyboard
49 x velocity- and pressure-sensitive keys (with aftertouch) 10-octave range available with Key Octave ± buttons 4 x assignable zones Lowest 25 keys send secondary commands in Edit Mode


Pads
16 x assignable velocity-sensitive pads (multicolor and backlit)


Faders
9 x 1.2" / 30.0 mm assignable faders 4 x banks available with Bank >/< buttons


Buttons
9 x assignable buttons (multicolor and backlit) 4 x banks available with Bank >/< buttons


Encoders
8 x assignable 360° knobs 4 x banks available with Bank >/< buttons


X-Y Pad
2.2 x 2.2" / 55.0 x 55.0 mm touch-sensitive pad 2 Independently Assignable Axes: X (horizontal), Y (vertical)


Display
LCD: 3.3 x 1.0" / 85.0 x 25.0 mm


Connections

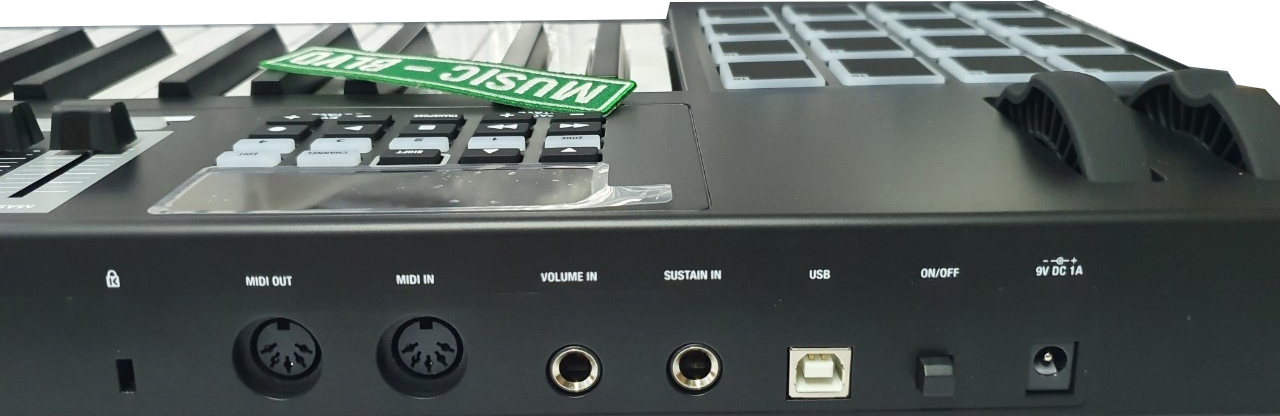

1 USB port 1 x 1/4" / 6.35 mm TS sustain pedal/footswitch input 1 x 1/4" / 6.35 mm TRS volume/expression pedal input 1 x 5-pin MIDI input 1 x 5-pin MIDI output 1 x power adapter input (power adapter not included) 1 x Kensington lock slot


System Requirements
Minimum: Windows 7 (32- and 64-bit); Windows 10 compatible Minimum: OS X 10.7.5


Power
USB bus power Optional Power Adapter: 9 VDC, 1 A, center-positive


Dimensions (W x D x H)
33.9 x 10.0 x 2.8" / 86.1 x 25.4 x 7.1 cm


Weight
11.5 lb / 5.2 kg






Packaging Info


Package Weight
12.0 lb


Box Dimensions (LxWxH)
38.0 x 13.2 x 6.0"
