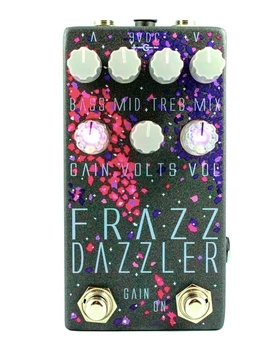

Dr. Scientist Sounds Frazz Dazzler Fuzz - Nebulae

Dr. Scientist Sounds Frazz Dazzler Fuzz - Nebulae
In the outer recesses of space lays Zeta-6 quadrant's largest junkyard. Here, gravity-challenged junkers float about rubbing their rusted hulls together, while the sounds of these frictions reverberate into the worlds around them. Want your tone to sound like two abandoned spaceships crashing in the vacuum of space, their oxidized wings gnashing together and disintegrating into dust? With a wide gain range, the Frazz Dazzler pedal will frazzle dazzle you with its mean-spirited and aggressive fuzz whether you play guitar, bass or an electronic instrument.
Dr. Scientist Sounds Frazz Dazzler Fuzz - Nebulae Features:

Operation: Mono input, mono output
Power Requirements:9VDC @ 50mA
Input/Output Impedance:500k/1k
Bypass: True bypass using soft touch switch and relay
Knobs:

Sizzle: Passive treble cut
Gain: Silicon transistors + 1 watt audio amplifier based, range from gritty overdrive to very high saturation
Vol: Passive resistance to ground
Mix: Dry at 0, wet at full


Switch:

Gain Setting: Left position is low to medium gain with no gate, right position is high gain with gate


PCB Trim-pots:

Bass:+/-15dB peaking filter centred at 100Hz, cut or boost the bass of the signal
Expression Control: Controls Mix knob, TRS input, 50k



www.music-blvd.com $249
