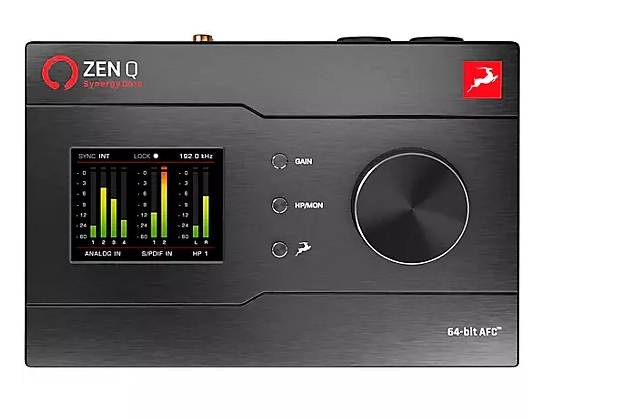

Antelope Audio Zen Q Synergy Core Thunderbolt Audio Interface

Zen Q Synergy Core Thunderbolt Audio Interface Specifications:
Analog

Analog Inputs
2 × Mic / Line Inputs / Hi-Z Inputs
2 x Line inputs / Hi-Z Inputs
48V phantom power and independent preamp gain for each input

Analog Outputs

1 × Monitor Out on TRS 1/4 Jacks, +20 dBu max, signal balanced, DC-coupled
1 × Line Out on TRS 1/4 Jacks, +20 dBu max, signal balanced, DC-coupled
2 × Stereo Headphone Outputs

Mic Preamp

EIN: -128 dBu (A-weighted)
Dynamic Range: -121 dB (A-weighted)
THD: -106 dB
Max input level: +20 dBu
Max Gain: 65 dB

Monitor

Max output level +20 dBu

D/A Monitor Converter

Dynamic Range: 127 dB (A-Weighed)
THD + N: -115 dB

D/A Line Out Converter

Dynamic Range: 127 dB (A-Weighed)
THD + N: -115 dB

A/D Converter

Dynamic Range: 122 dB
THD + N: -116 dB

Digital

Digital Inputs
1 × S/PDIF
1 x ADAT IN (up to 8 channels @44.1/48.0
Digital Outputs
1 × S/PDIF

Computer I/O

1 × Thunderbolt 3

Power

Bus-powered through Thunderbolt 3 port

Clocking

Clocking System
4th Generation Acoustically Focused Clocking (AFC™)
64-bit DDS

Sample Rates (kHz)

44.1, 48, 88.2, 96, 176.4, 192

Interface - Physical Dimensions

198 137 57.5 mm
Weight: 800 g (approx.)

Box - Physical Dimensions

260 205 95 mm
Weight: 1 kg (approx.)
2.8″ IPS Screen
Note: Thunderbolt cable is not included.
