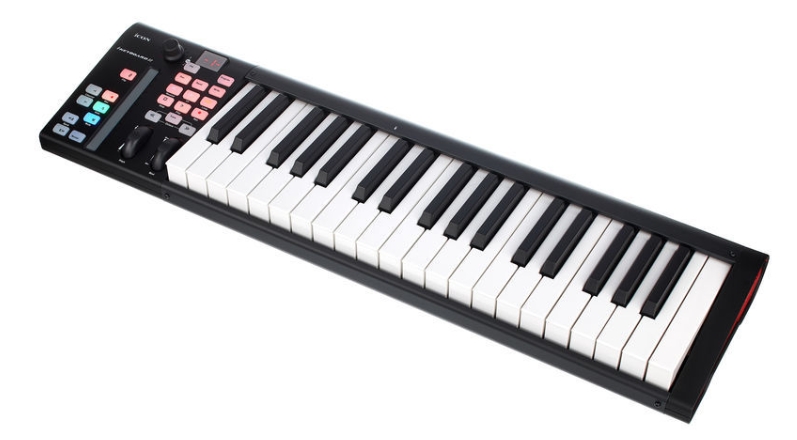

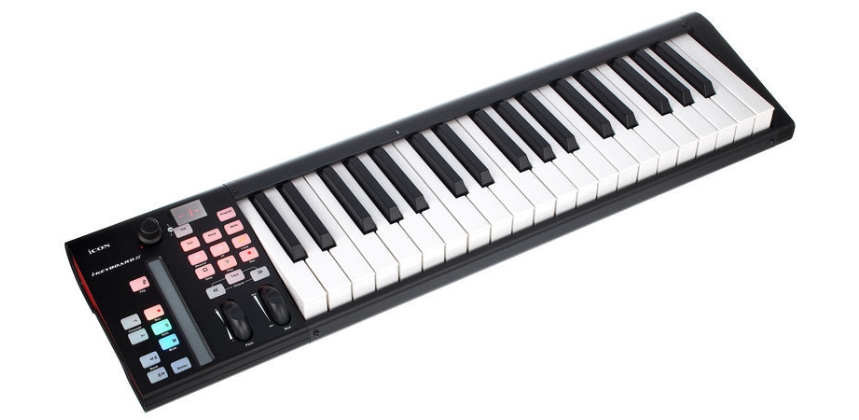

Icon iKeyboard 4X/black

37-note keyboard controller with single-channel DAW controller
Full size, semi-weighted keys with realistic piano action and selectable velocity curves
Keyboard exclusively designed by Icon

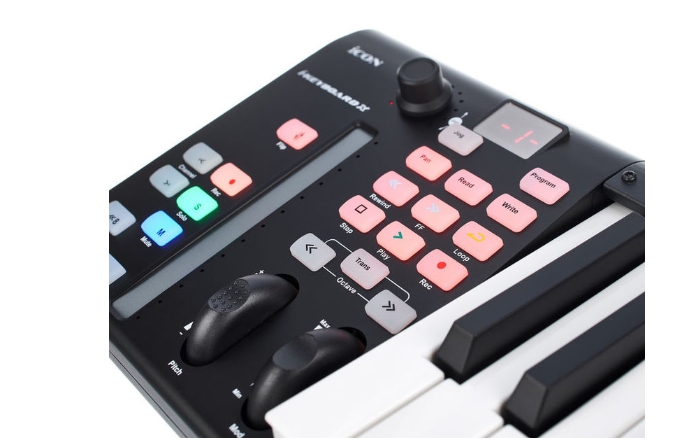

Pitch-Bend and Modulation touch strips
Transpose and octave up/down buttons
Powerful control surface equipped with Mackie Control and HUI protocols.
Includes presets for Pro Tools, Logic Pro, Ableton Live, Cubase, Nuendo, and Samplitude
Backlit LED touch fader to control levels, automation, and more
Rotary encoder with 11-segment LED ring to control panning, sends, and plugins
6 transport buttons including Play, Stop, Rec, Rewind, Fast forward and Loop
Mute, Solo, Rec arm buttons
All buttons are illuminated to provide feedback
3-segment LED screen
Expression & sustain pedal jacks
Midi output
USB 2.0 high-speed connectivity
Includes Cubase LE
Includes iMap software for quick and easy MIDI mapping
Class-compliant with Windows XP, Vista (32-bit), Windows 7 (32-bit & 64-bit), Windows 8 (32-bit & 64-bit),Windows 10 (32-bit & 64-bit) and OS X (10.4 and higher)
Firmware upgradable over USB
Robust aluminum and metal casing with Kensington lock port
Weight: 6.5lb
Dimensions (LxWxH) 25.25″ x 7.4″ x 2.7




OVERVIEW



FEATURES



SPECIFICATION

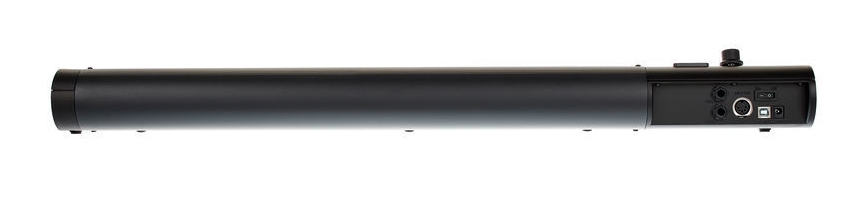

Connector


USB
USB connector (standard type)


Sustain & Expression
2x1/4” TS connectors


MIDI I/O
5-pin Din connector


General


Power supply
12V/100mA DC


Current consumption
100mA or less


Weight
2.99 kg (lb)


Dimensions
641(L)x189(W)x68(H)mm


Dimensions

25.4"(L)x7.44"(W)x2.68"(H)
