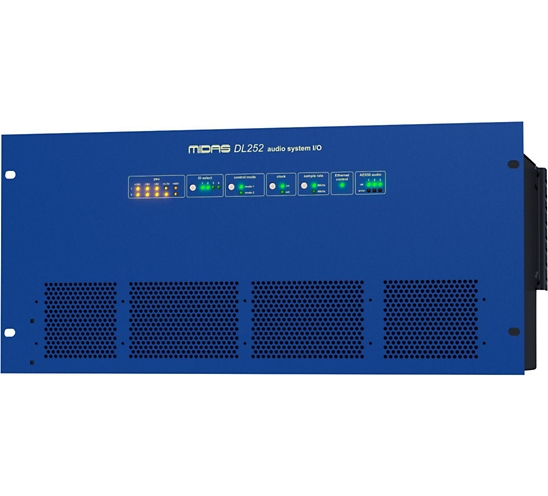

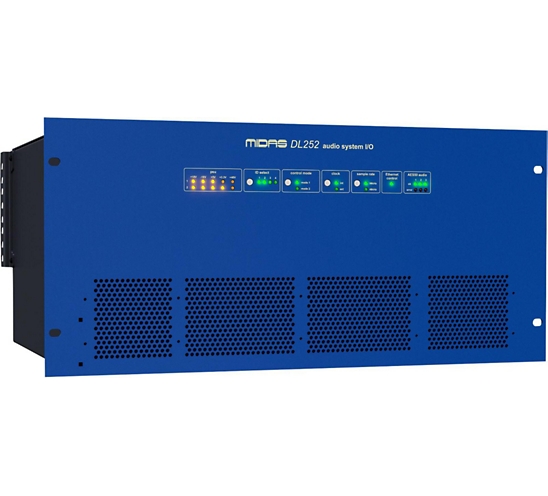

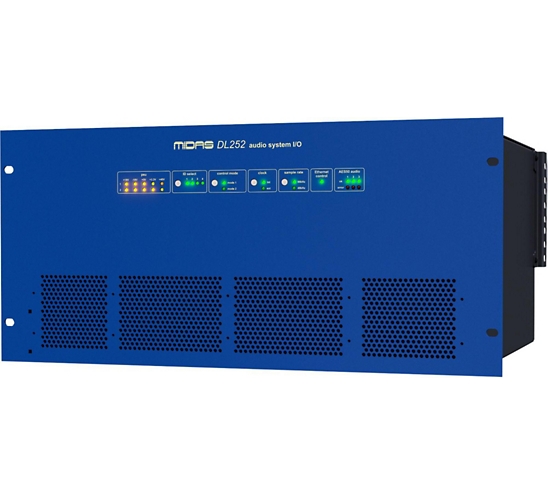

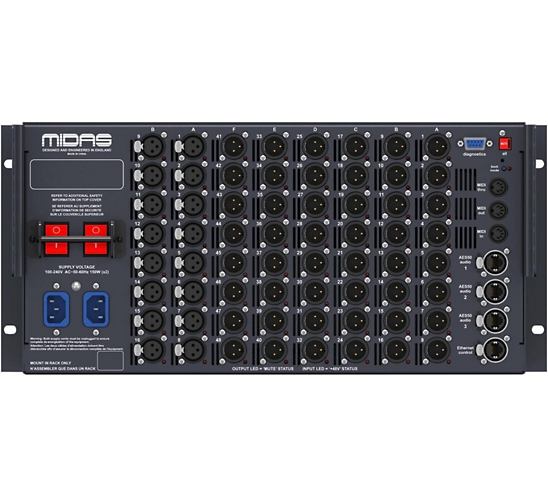

Midas PRO SERIES DL252 Digital Stage Box

OVERVIEW


16 input, 48 output stage box with 16 MIDAS microphone preamplifiers.
DL252 is a 5U 19" fixed-configuration rack I/O unit with 16 mic/line level inputs and 48 line level outputs and delivers legendary MIDAS sound quality utilizing time-tested and road-proven technologies. Featuring award-winning MIDAS microphone preamplifiers with 2.5 dB analogue gain steps and three AES50 network ports providing N+1 redundancy, plus an Ethernet control port and a MIDI Interface (In, Out, Thru), the DL252 is the ideal partner to the MIDAS M32 Series and PRO Series digital consoles, enabling a digital snake connection from Front of House to stage.Award-Winning MIDAS Microphone PreamplifierThe MIDAS microphone preamplifier is considered by leading live sound and recording engineers to be the very essence of the famous MIDAS sound. More than 40 years of design experience paired with the finest choice of premium-grade components lead to the acclaimed warmth and depth - bringing out subtle ambience, maintaining spatial positioning and more effectively capturing a precise sound image. The acclaimed sound of the award-winning MIDAS microphone preamplifier has inspired generations of live sound engineers to their best work, creating sonic panoramas that have captivated audiences worldwide.Digital Audio NetworkingSuperMAC (AES50-Compliant) digital audio networking technology from KLARK TEKNIK simultaneously provides high channel counts, ultra low and deterministic latencies, sample-synchronous and phase-aligned networked clock distribution, error detection and correction, network redundancy, and ease of deployment and use – to meet the demanding requirements of live concert touring.Remote Console or Front Panel ControlAll configuration settings for DL252 can be set either remotely from the mixing console, or directly via the intuitive and easy to understand front panel. DL252 features front panel switches for all configuration options with LED status indicators, which provide highly visible feedback of operational status over wide viewing angles and distances. Clear indication is provided showing power supply output rail condition, AES50 and Ethernet network connection status and activity, choice of internal or external clock synchronization, unit identification and communication mode setting.



FEATURES

16 award-winning MIDAS microphone preamplifiers with switchable +48 V phantom power
48 actively balanced low impedance line level outputs
Selectable 96 kHz or 48 kHz sample rate operation
Remote operation up to 100 m via CAT5/5e cable
All settings programmable from front panel controls or console
PSU status indicator LEDs and configuration switches on front panel
3 AES50 network ports for redundant connections
MIDI In, Out and Thru connectors
Features Neutrik etherCON AES50 network ports
Rugged 5U rackmount chassis for durability in portable applications



Trust MIDAS sound and performance for professional live sound solutions, order today!
