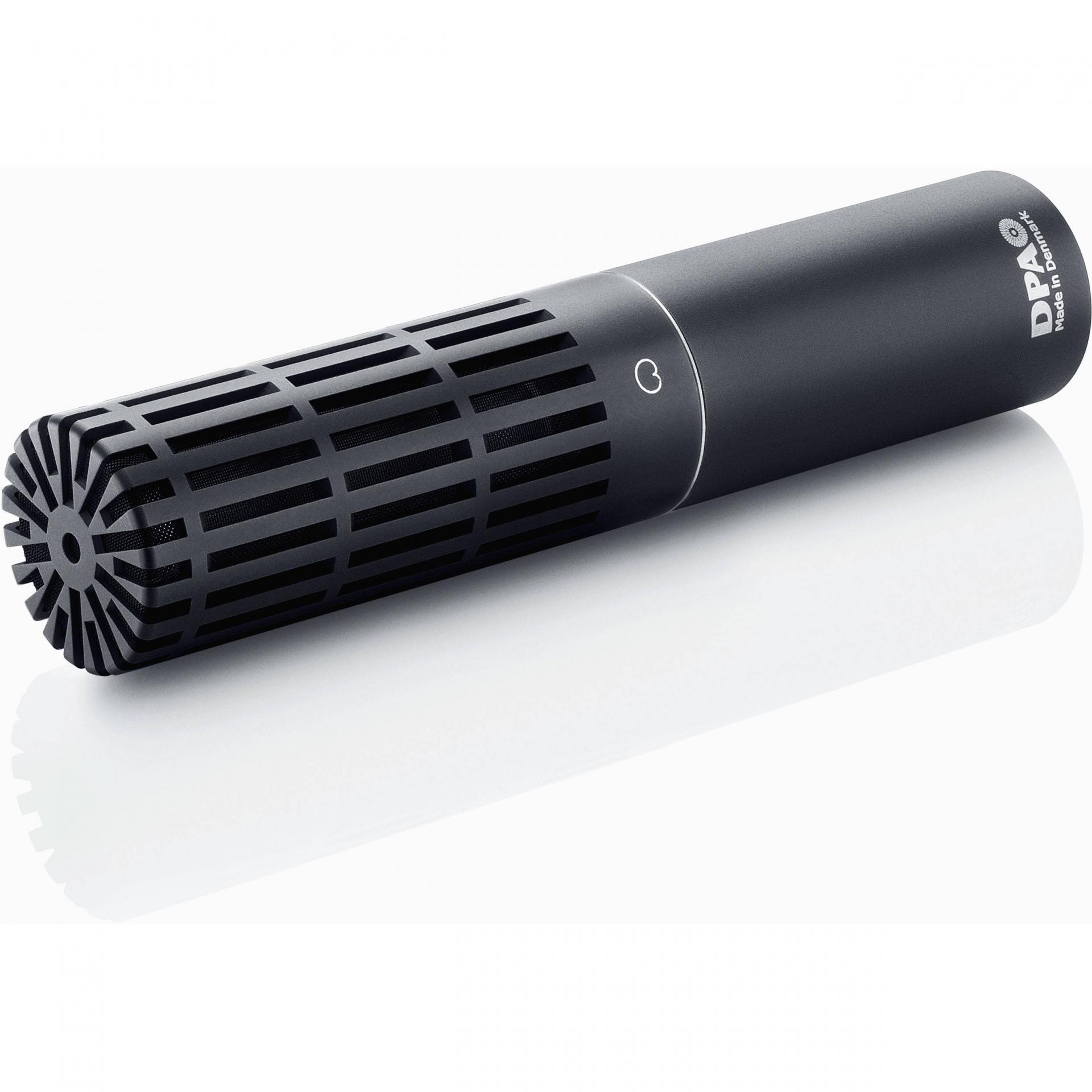

DPA Microphones 2011C Twin Diaphragm Cardioid Microphone (Compact)

The compact 2011C Twin Diaphragm Cardioid Microphone from DPA features a modular capsule design and sonic character. It contains a cardioid condenser capsule suitable for capturing instruments in sound reinforcement applications. The capsule's twin diaphragm is designed to provide a fast impulse response and large frequency bandwidth, resulting in low inherent noise. Additionally, the microphone maintains a linear tonal response when closely positioned near speaker cabinets, percussion, and other instruments. Its modular design allows users to manually switch optional capsules, providing versatility and performance. The 2011C's output stage offers the MMP-C preamplifier for faithful recreations of the original source material. The package includes a microphone clip and windscreen.


Blends clarity, richness, and dynamics


Twin-Diaphragm-Capsule and interference tube technologies


Maximum stage separation and level control


Modular flexibility





Spec:



Operating Principle
Pressure Gradient


Transducer
Condenser


Polar Pattern
Cardioid


Frequency Range
20 Hz to 20 kHz


Signal to Noise Ratio
74 dB A-Weighted


Equivalent Noise Level
20 dB A-Weighted33 dB ITU-R 468


Maximum SPL
146 dB SPL


Impedance
200 ohms


Load Impedance
2 kOhms


Sensitivity
-40 dB @ 1 kHz, re: 1 V/Pa


Power Requirements
48 V+/- 4 V


Output Connectors
3-Pin XLR


CMMR
50 dB


Operating Relative Humidity
90%


Operating Temperature
-40 to 113°F (-40.00 to 45.00°C)


Operating Current Consumption
2.8mA


Dynamic Range
117 dB


THD
< 1.0% up to 137 dB SPL Peak






General


Length
3.62" (92 mm)


Diameter
0.75" (19 mm)


Weight
2.26 oz (64 g)






Packaging Info


Package Weight
1.45 lb


Box Dimensions (LxWxH)
10.7 x 6.2 x 2.7"
