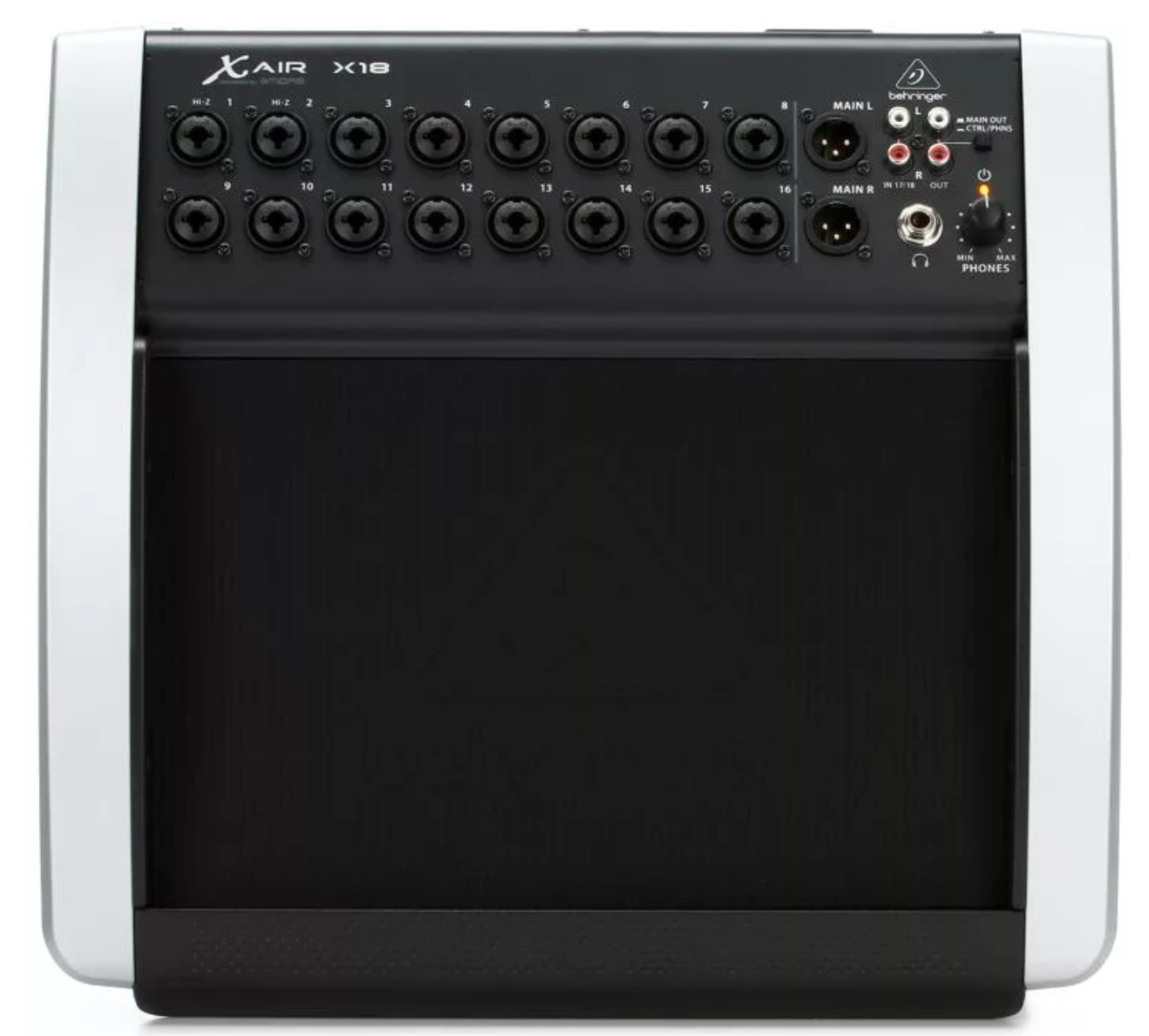

Behringer X Air X18 18-channel Tablet-controlled Digital Mixer

A Better Way to Mix
Behringer's cutting-edge X Air digital mixers integrate with your iPad or Android tablet — and even your smartphone — for unprecedented mixing power and mobility. Plug in your mic and line level sources and mix from anywhere in the venue or studio via the free remote control app. The X18 is an 18-input desktop unit with 16 gain-programmable Midas-designed microphone preamps, Behringer's renowned X32 effects rack, a 100-band Real Time Analyzer on all channels and bus EQs, an 18 x 18 USB interface, integrated Wi-Fi, a convenient tray for your tablet or small laptop, and more. Just add mics, and you have everything you need to mix a live show and record pristine multitrack studio sessions straight to your DAW. The Behringer X18 gives you a whole new way to mix.


Behringer X18 at a Glance:

Built-in Wi-Fi module
Convenient tablet tray
Midas-designed preamps
40-bit floating-point DSP
Full-featured channel processing
FX Rack delivers studio-quality effects
100-band RTA for all channel and bus EQs
Ultranet compatible


Mix From Anywhere in the House

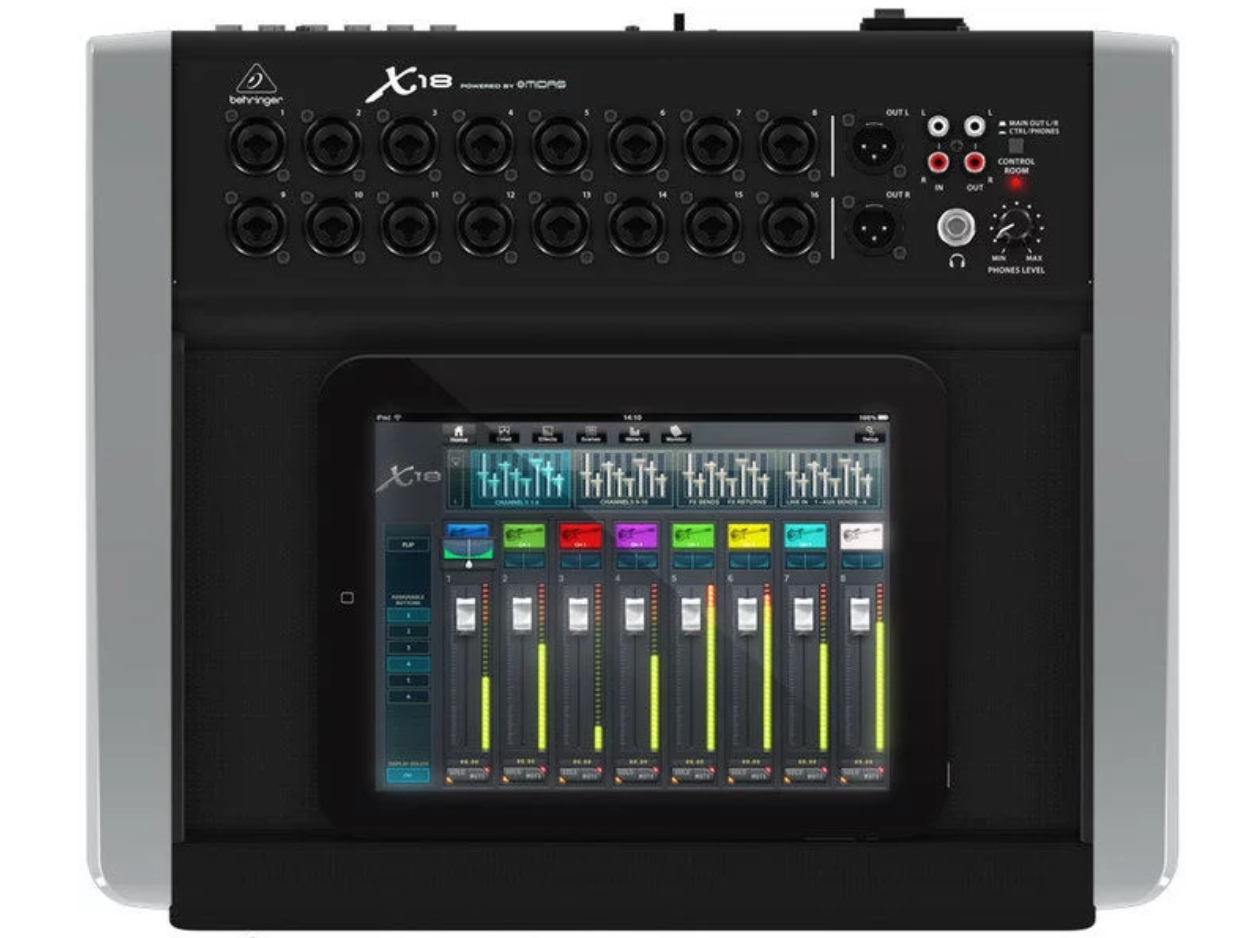

Built-in Wi-Fi and tablet integration for unprecedented mixing mobility
Behringer's X18 gives you the ultimate in mixing mobility. Imagine always being able to mix from the most advantageous spot in the house! The X18 acknowledges the reality of modern live mixing — that you don't want to be tied down to a fixed front-of-house mix location. Integrated Wi-Fi gives you remote control over the mixer's functions from your tablet or laptop without needing to set up and configure an external router. Now you can focus on your mix, moving around the venue to experience what your audience is hearing at any place in the auditorium. Tweak the mix from the balcony. Adjust the monitors from the performers' perspective. This is live mixing the way it should be — natural and intuitive. The result will be better-sounding shows!
Mix fro


m anywhere in the venue
Instant wireless for your tablet or laptop
Complete remote control over mix functions
No need to set up and configure an external router


Let the Performers Mix Their Own Monitors


Compatibility with Behringer's Personal Monitoring System

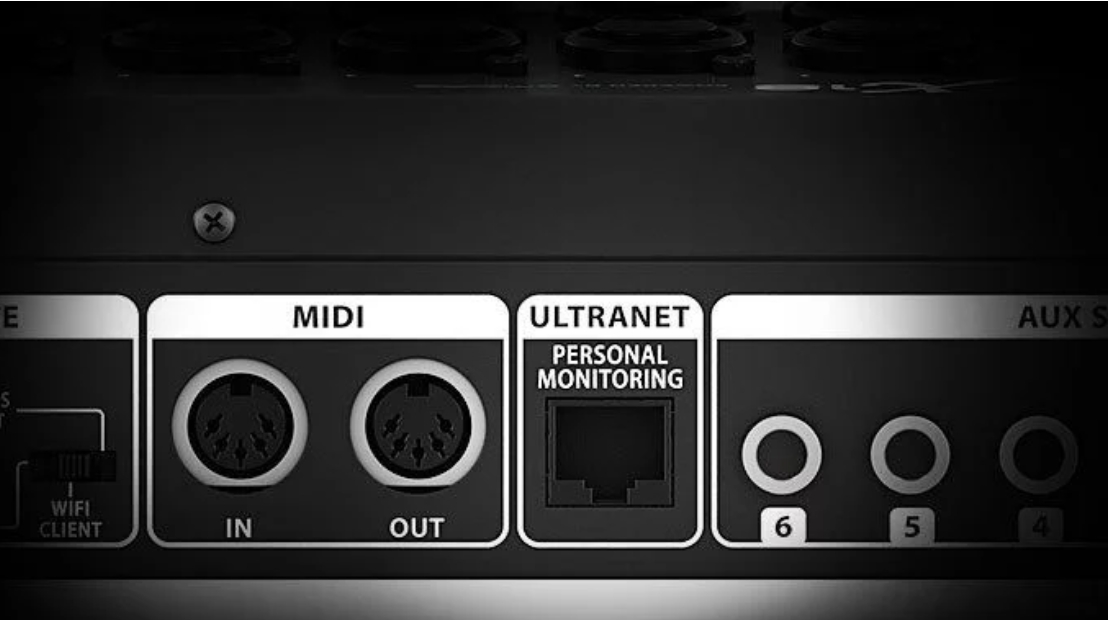

The X18's wireless capability makes it easy for you to modify a monitor mix from the performers' onstage perspective, but why not let the musicians mix their own IEMs or floor wedges? The X18 features an Ultranet port for easy audio routing over Cat 5e cable to other Ultranet-compatible gear. Compatibility with Behringer's P16-M Personal Monitoring System means you can concentrate on whipping up a killer house mix and leave the monitor mix to the performers (trust us, they'll thank you for it). Now that's smart mixing! With 16 channels of personal monitoring, plus six aux sends to feed stage wedges, delayed mixes, or secondary rooms, you have it covered. If you've got big stadium gigs booked, you'll be glad to know that you can easily integrate the X18 into a larger setup using its Ethernet port to connect to a wired network or a monster router. The X18 includes free iOS and Android apps for remote operation.

P16-M Personal Monitoring System compatible
16 channels of personal monitoring
Six aux sends to feed stage wedges, etc.
Ethernet port connects to wired network

Great-sounding Mixes Start Here
Pristine preamps, ultra-wide dynamic range, and more

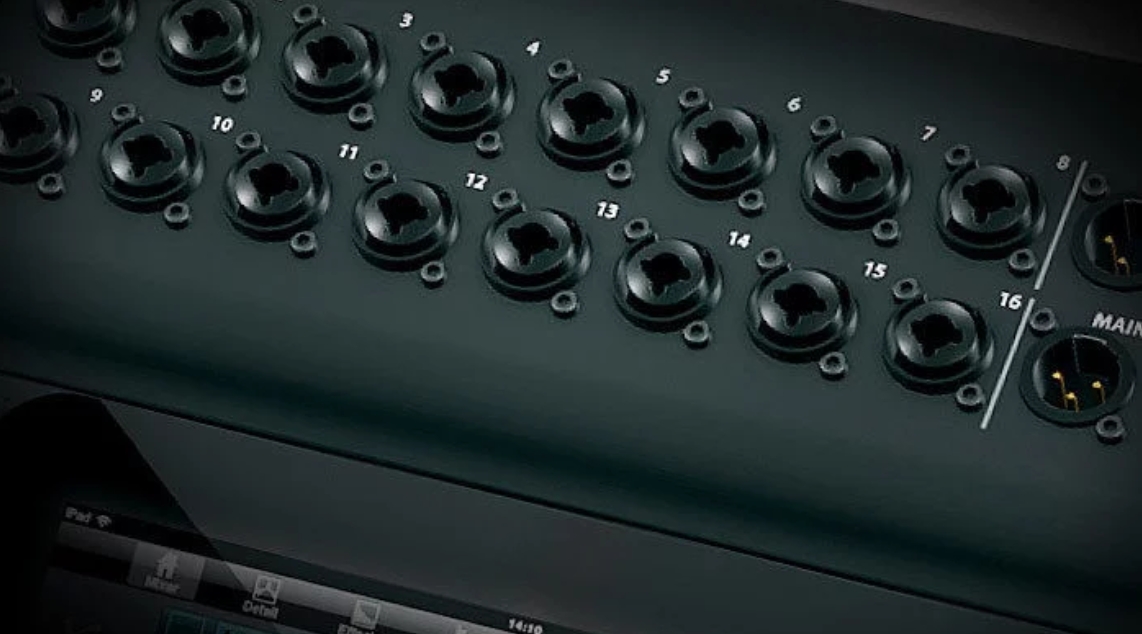

With 16 Midas-designed mic preamps and 40-bit floating-point DSP that delivers virtually unlimited dynamic range with no internal overload and vanishingly low latency, the X18 delivers impeccable sound quality — the same as Behringer's acclaimed X32 digital mixer. The X18's preamps are fully gain-programmable and remote-controllable from your iOS and Android device, for nearly unlimited flexibility in a live show situation. Because applications are loaded to the specific device, you can prepare your channel layout offline while sitting in the tour bus before a


show.

Acclaimed X32 technology for impeccable sound quality
Fully gain-programmable, remote-controllable preamps
Applications loaded to specific device
Facilitates offline pre-production





Comprehensive Processing and Routing
Features that will make you a sound-mixing hero
With so many variables beyond a mix engineer's control, Sweetwater knows just how challenging mixing a live show can be. That's why Behringer designed the X18 with smart features that can make you a sound-mixing hero. The X18's channels are fully loaded, with per-channel low-cut filters, gates, full dynamics (including compression, limiting, expansion, ducking, sidechaining, and more) fully parametric 4-band EQ, and routing to the six aux outputs. When it comes to EQ, the XR18 lets you analyze the frequency content of your tracks courtesy of its 100-band Real Time Analyzer, built into every input channel and then sculpt them with the bus equalizer (currently available in Android, PC, and Mac software — iOS coming soon). With visual feedback built right into the control app, you can see exactly what you need to do, and make fast, surgical adjustments to frequencies that need boost or cut.

Smart features make mixing easier
Extensive per-channel processing
100-band Real Time Analyzer
Visual feedback simplifies EQ

Studio-quality Effects
Virtual FX Rack with four true-stereo multi-effects processors
The X18 has an entire arsenal of effects under the hood. The X18's virtual FX Rack gives you four true-stereo (8 mono) multi-effects processors, including delay, chorus, and dynamics. This engine is beefy enough to simultaneously run high-quality, true-stereo reverbs and 31-band EQ, without the need for additional hardware. Select any combination of high-end simulations of classic studio reverbs such as the Lexicon 480L and PCM70, the EMT250 or Quantec QRS. The X18's onboard processing means your computer won't be tasked with additional heavy lifting during a mixdown session with numerous plug-ins.

Four stereo multi-effects processors
Simulations of legendary studio reverbs
Robust FX engine
Lightens the load on your computer



Record Straight to Your Favorite DAW
18 x 18 USB interface makes recording effortless
The X18 sports a fast, bi-directional 18 x 18 USB interface, making the X18 a powerful digital mixing solution for recording directly to the digital audio workstation running on your iPad or computer. You can see how this arrangement can boost productivity in a live scenario, giving you an effortless, immaculate multitrack capture of the show to take back to your studio for post production. Whether you're capturing a live performance or tracking in the studio, you'll find the X18 makes it amazingly easy to record great-sounding tracks.

Bi-directional 18 x 18 USB interface
Easy direct recording to your DAW
Works easily with tablet or computer
Pristine multitrack capture



Tech Specs

Type: Digital
Channels: 18
Inputs - Mic Preamps: 16 x XLR-1/4" combo
Inputs - Line: 1 x RCA stereo pair
Outputs - Main: 2 x XLR, 1 x RCA stereo pair

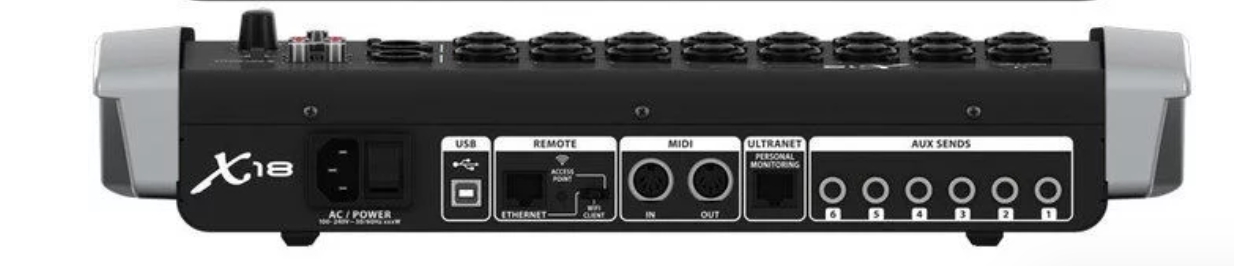

Outputs - Other: Ultranet port (P16-M and P16-D connection)
Channel Inserts: Internal effects/processing inserts
Aux Sends: 6 x 1/4" (aux bus out)
USB: 1 x Type B
Computer Connectivity: USB (18 x 18), Ethernet, Tri-mode Wi-Fi router
MIDI I/O: In/Out
Headphones: 1 x 1/4" TRS
EQ Bands: 31-band graphic EQ, 6-band parametric
Effects: 4 stereo effects/modeling engines including delay, chorus, dynamics, Lexicon reverbs, flangers, exciters
Height: 4.3"
Depth: 16.1"
Width: 14.1"
Weight: 8.8 lbs.
Manufacturer Part Number: 000-AWZ02-00010
