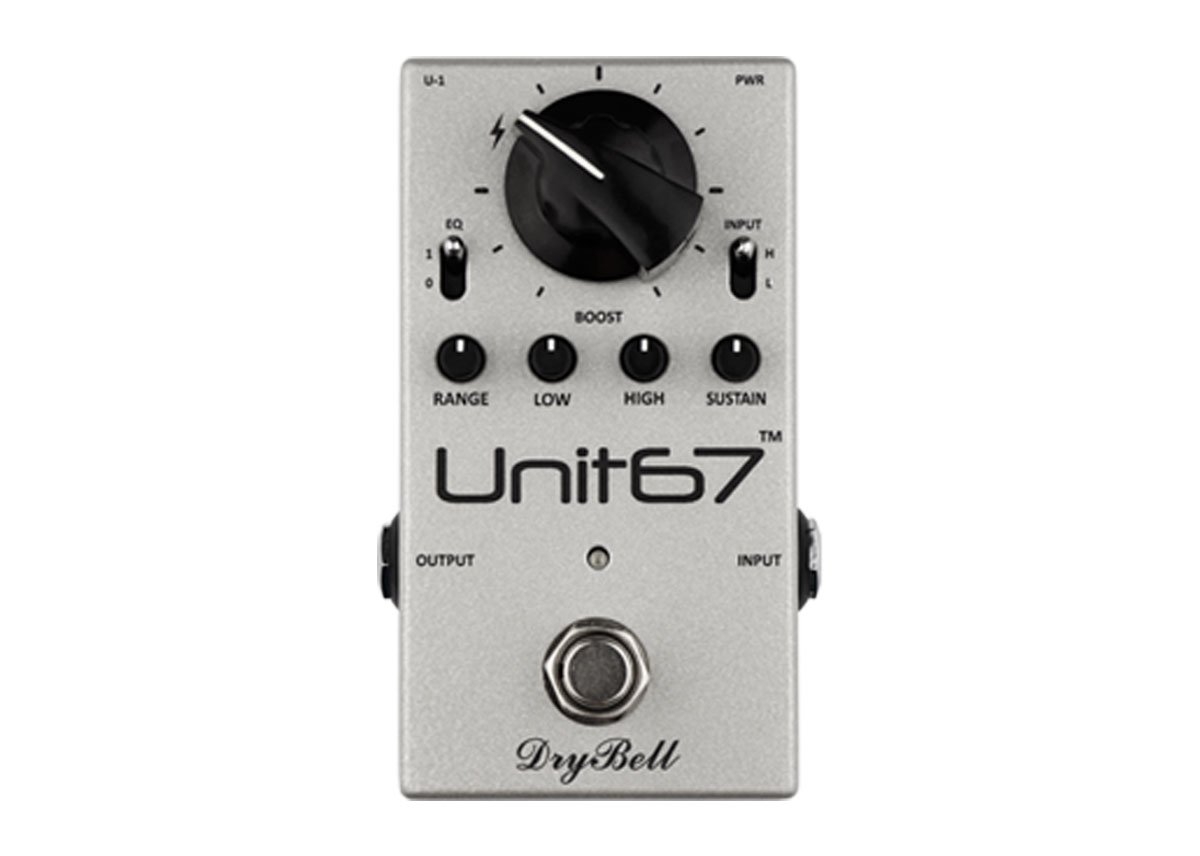

DryBell Unit 67 Boost/Compressor

DryBell Unit 67 Boost/Compressor
The Unit67 is a compact and fully analog device that has a highly versatile EQ set including a „Rangemaster-like“ mid control, a boost and an 1176 type of compressor – all in one extremely practical guitar pedal.
When we started working on this pedal, we wanted to be as unique as possible in today’s pedal world and that was no easy task.
Imagine getting THAT sound you have in your head from just one pedal. You know that playing feel when you play through a loud or overdriven amp, when every note comes out easily and you can play effortlessly? Well, that’s what the Unit67 is all about, only you don’t have to play LOUD or with an overdriven sound to get there.
It doesn’t matter what your playing style is, how loud you want to play or whether you use any other pedals in your signal chain. The Unit67 is a versatile multi-functional tool which will improve almost every tone to the next, harmonically rich level. Unit67 gives you an exciting new playing feel and response which you’ll immediately love.
Connected in between your guitar and amp, the Unit67 becomes an extremely powerful and handy tone shaping tool. It’s also very versatile in terms of pedalboard position, you can place it anywhere you like it and it will work its magic
1176 type of compressor,
EQ set with the Range (Master) mid control AND High output Boost
Based on a clean (and semi-clean, read more) boost, which is the foundation for many guitar setups, we’ve implemented a very carefully tuned combination of fully analog features in the Unit67, useful to a wide range of musicians and playing styles. Also, our goal was to make it the simplest and most practical for the user.
A boosted sound in itself is great, but you can get much more of it. Sustaining notes are often a big helping hand to guitar players, so we decided to implement the next great feature of the pedal: a Compressor.
After serious development and inspired by the unique sound and feel of the 1176’s design, we’ve created our very own low noise compressor circuit for this pedal. It is transparent and it has a parallel compression circuit (blend), so you can add a right amount of sustain while retaining pick dynamics with just one simple knob (Sustain). Yes, you have DryBell’s take on the mighty 1176’s engine in this small box!
Of course, that was not the end of the Unit67’s journey. We’ve implemented additional controllability: an EQ set that consists of low and high controls and also a very specific sounding “Range” control.
The Range (Master) control will help you cut through the mix and will enrich your tone with the glorious sparkle often associated with the old classic Rangemaster. In situations when you’re using darker toned amps or guitar pickups, “The Range” will always add a harmonically rich sparkle to your tone.
Combined with a touch of sustain and boosted just enough to give you THAT tone, “The Range” will give some serious bite to your sound which is another way to push you through the mix while playing lead.

DryBell Unit 67 Boost/Compressor Features:

Model: U-1
Manufacturer Part Number: DB2436
Input impedance: 900kΩ/1kHz
Output impedance: 250 Ω/1kHz
Max input level w/o compressor clipping: 4,5 Vpp / 6,2 dBu
Max output level: 20.0 Vpp / 19,2 dBu
Max bypass level w/o clipping: 14.0 Vpp / 16,1 dBu
Max gain (EQ = off, Sustain = 0): 22,4 dB
Max gain (EQ/BOOST on max): 41,0 dB (mid-range freq.)
External power supply: Adapter 9V DC, (9.0Vmin -18Vmax), 100mA minimum
Power supply connector type: Barrel, Plug 5.5mm/2.1mm, Center Negative
Nominal current (with guitar): 87mA
Length: 112 mm / 4,42 inch
Standard color/finish: Silver metallic matte / Powder Coating
