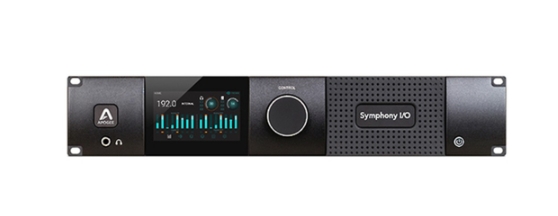

Apogee Symphony I/O Mk II - 8x8 + 8 Mic Pres - Pro Tools HD

Key Features

Best performance of any multi-channel Pro Tools HD interface
Best cost per channel value of any Pro Tools HD interface solution
Connects directly to any Pro Tools HD system (Mac or PC)
Emulates Avid HD I/O interface, including sample-accurate delay compensation
Connect multiple units in a single system (1 unit per HD port)
Easy I/O calibration with front panel touchscreen

For connecting to an existing Pro Tools HD Accel, HD Native or HDX system. Up to 1 Symphony I/O Mk II unit connected to each HD port (max. 32×32 per unit).Symphony I/O Mk II HD is designed for the Pro Tools HD user who needs a multi-channel audio interface with the best sound quality at an incredible cost per channel value. Whether using a Mac or PC based studio, Symphony I/O Mk II HD can connect directly to your Pro Tools HDX, Pro Tools HD Native or Pro Tools Core/Accel systems.Symphony I/O Mk II HD can be utilized alongside or in place of Avid® or Digidesign® interfaces for Pro Tools HD. In fact, each I/O module installed in Symphony I/O Mk II HD appears and functions in Pro Tools HD the same if it were a separate Avid HD I/O interface, so set up is easy and you can take advantage of important Pro Tools features such as sample-accurate delay compensation.A single Symphony I/O Mk II HD unit can have up to 32 simultaneous analog I/O, so you can have more channels with less rack gear. Need even more channels? You can utilize multiple units simultaneously, with one Symphony I/O Mk II HD per every Pro Tools HD port in your system. Calibrating your I/O is easy with Symphony I/O Mk II HD’s front panel touchscreen.




Analog to Digital
THD+N: -115dB @ 22dBu (0.00020%) unweightedDynamic range: 122dB A weightedMaximum input levels:

+4dB setting: +24dBu
-10dB setting: +6dBV

Frequency response at 44.1kHz: 1-20,000 Hz (+/- 0.05dB)Input impedance: 10K


Digital to Analog
THD+N: -119dB @ 21dBu (0.00014%) unweightedDynamic Range: 126dB A weightedMax output levels – ∞ to +24dBuFrequency response at 44.1 kHz: dc to 20kHz (+/- 0.05dB)Output impedance: 25 OhmOutputs are balanced through Apogee’s proprietary Perfect Symmetry Circuitry (PSC)


Headphone Output
1 stereo 1/4″ headphone output on front panelTHD+N:

-110dB @19dBu into 600 Ohm (=80mW)
-101dB @14dBu into 32 Ohm (=470mW)

Dynamic Range: 121db A weightedOutput: Apogee’s proprietary Constant Current Drive™ provides smooth frequency response with any headphones


Power
90-240VAC, 50-60Hz, 150W


Operating System
Any Mac or PC running Pro Tools HD 9 or greater


Symphony I/O Mk II Dimensions
Inches: 17.75 (19 with Rack Ears) x 11.5 x 3.5Centimeters: 45 (48.26 with Rack Ears) x 29.2 x 8.9


PACKAGING DIMENSIONS



Symphony I/O Chassis Box
Inches: 22.875 x 17.75 x 9.25Centimeters: 58.1 x 45.1 x 23.5


I/O Module Box

Inches: 13.75 x 12.25 x 3.25Centimeters: 34.9 x 31.1 x 8.3




THSD www.music-blvd.com $4,995
