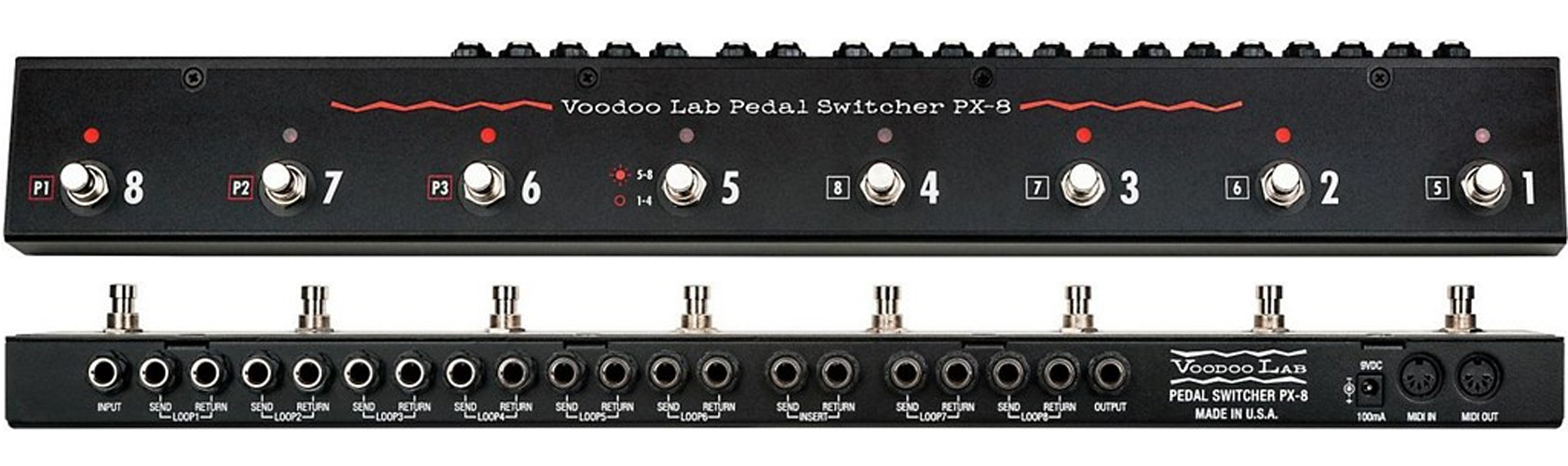

Voodoo Lab PX-8 Pedal Switcher

The Switcher that Puts You in Charge of Your Tone!
Sweetwater guitarists want you to have the best tone possible. That's why we offer you the Voodoo Lab's PX-8 Pedal Switcher! Now you can get true bypass performance from your buffered pedals. But the PX-8 also offers MIDI in and out to interface with a MIDI switcher, giving you one step access to pedal combinations, and also to presets within those pedals. And it carries a thin compact design to give more space for your effects. With the Voodoo Lab PX-8 get the optimal tone from the effects you want, without any of the tone-sucking circuitry you don't.
Voodoo Lab PX-8 Pedal Loop Switcher at a Glance:

True bypass loops remove unwanted effects from the chain
MIDI connections for expanding your MIDI capabilities
Compact design to take up minimal pedalboard space

True bypass loops remove unwanted effects from the chain
Every guitarist has that effect that we just can't live without, but when it's in the chain it wreaks havoc on our signal. You don't have to compromise any longer with the PX-8 pedal switcher from Voodoo Lab. The eight footswitches on the face of the unit bring your effects in and out of the signal chain only when you want them. Your signal runs pure and clean right past any effects not selected. That means you can now crank up that vintage fuzz box on your board, and not even know it's there when it's not in use.
MIDI connections for expanding your MIDI capabilities
For players who want one step access to multiple pedals, the PX-8 is fully MIDI integratabtle. MIDI switchers such as Voodoo Lab's Commander open up a world of possibilities. Now you can pull up a string of any of the effects you want with one stomp. Not only that, but you can even program it to select the presets you've created in some of your favorite digitally controlled effects! Let's face it, you're a guitar player, not a tap dancer. Now you can get down to the business you're there to do with the PX-8 from Voodoo Lab.
Compact design to take up minimal pedalboard space
One design issue that plagues many different pedal switchers is their size. Often bulky by nature, there is little room left on your board for your actual effects. And with airline weight restrictions and travel getting more difficult in general, sometimes just getting a larger pedalboard isn't an option. The PX-8 comes in an impressively compact package. It'll even fit on one rail of a pedaltrain pedalboard. Now all your favorite effects pedals will have room to breath on the board you already have.
Voodoo Lab PX-8 Pedal Loop Switcher Features:

Eight true bypass audio loops using the finest gold contact relays
One-button access to clean, rhythm & lead effect combinations
Instantly recall 128 preset combinations of effects via MIDI
Compatible with Ground Control Pro or any MIDI controller
Insert point between loops six and seven for volume pedals and more
Output buffer preserves tone even with long cable run to amp
Quiet Switching technology for lowest possible noise
Conveniently power from any Pedal Power 9VDC output
Hand built in Voodoo Lab's Santa Rosa, CA factory
Legendary Voodoo Lab quality and reliability
Five-year warranty

Take control of your effects without sacrificing your tone with Voodoo Lab's PX-8!


Tech Specs



Type
Pedal Switcher


Inputs
1 x 1/4", 9 x 1/4" (Return)


Outputs
1 x 1/4", 9 x 1/4" (Send)


MIDI I/O
In/Out
