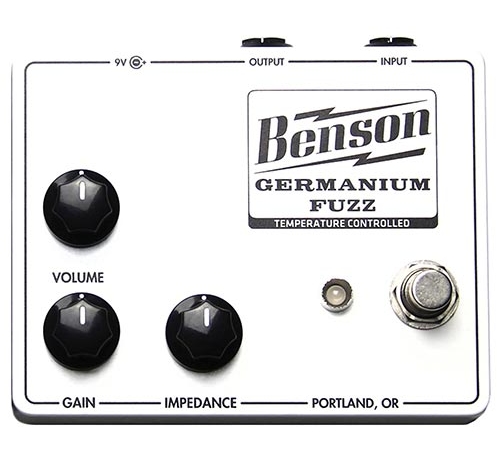

Benson Germanium Fuzz

Benson Germanium Fuzz is a fuzz pedal and designed around two germanium 2N527 OR 2N404 Germanium Transistors. They have been graded for gain and leakage and carefully matched to sound their best. They are set up in the ubiquitous 60’s circular fuzz topology, and tuned for good sound, and include some additional oddities aimed at solving the issues that prevent more widespread use of Germanium devices….detailed below.
The bias of the transistors in this pedal is automatically regulated by a circuit that GENTLY warms the transistors to a preset operating point using analog components, and ensures a consistent sound, no matter the external temperature. When the LED is orange, the transistors are warming up to increase their hFE (transistor gain) and to shift the bias point to the correct voltage. When the LED turns green, the warmer is off because the correct bias and hFE have been set.
Expect the LED to toggle back and forth every so often while the pedal is on…that is how you know its working. The heaters will warm the transistors enough to still be effective on a sunny stage, but far cooler than anything that would harm the transistors. There are two colors: Studio Black is not meant for direct sunlight, Solar White is fine with it.
The low input impedance of the classic two transistor germanium fuzz circuit is both a blessing and a curse….a blessing because it can yield a tight sparkly clean tone when guitar volume is rolled down, and a curse because it sounds nasty (in a bad way) if there are buffers or pedals before it in a signal chain.
Benson installed a class A buffer in the very input of the Germanium Fuzz. This buffer feeds a passive pickup simulator circuit (an audio transformer set up as an inductor, a resistor, and a capacitor). These two additions make compatibility with other pedals possible without losing the desired sound.
The circuit has been tuned to be used as a rich sounding clean boost, an overdrive, all the way up to an aggressive fuzz with some octave overtones. It will sound different, and I think more useful, than the classic versions. There are many colors of tone available with the impedance and gain controls…they are very interactive. This is meant as a “pretty” fuzz a la 60’s-70’s classic rock/psychedelic rock. It is not a spitty, harsh experimental fuzz and more often sounds like an overdrive or distortion until the gain is turned all the way up, and the impedance is turned down.
This pedal is for use only with a 9V DC Boss syle center negative power supply. There is no battery.

Description

Effect: Fuzz
Design: Analog
Mono/Stereo: Mono In, Mono Out
Knobs: Gain, Impedance, Volume
Bypass Mode: True Bypass
Power Supply: 9V DC, center negative
Power Consumption: 100 mA
Works with batteries: No
Type of Battery: –
Format: Medium
Made in: USA

THPRV www.music-blvd.com 329euro
