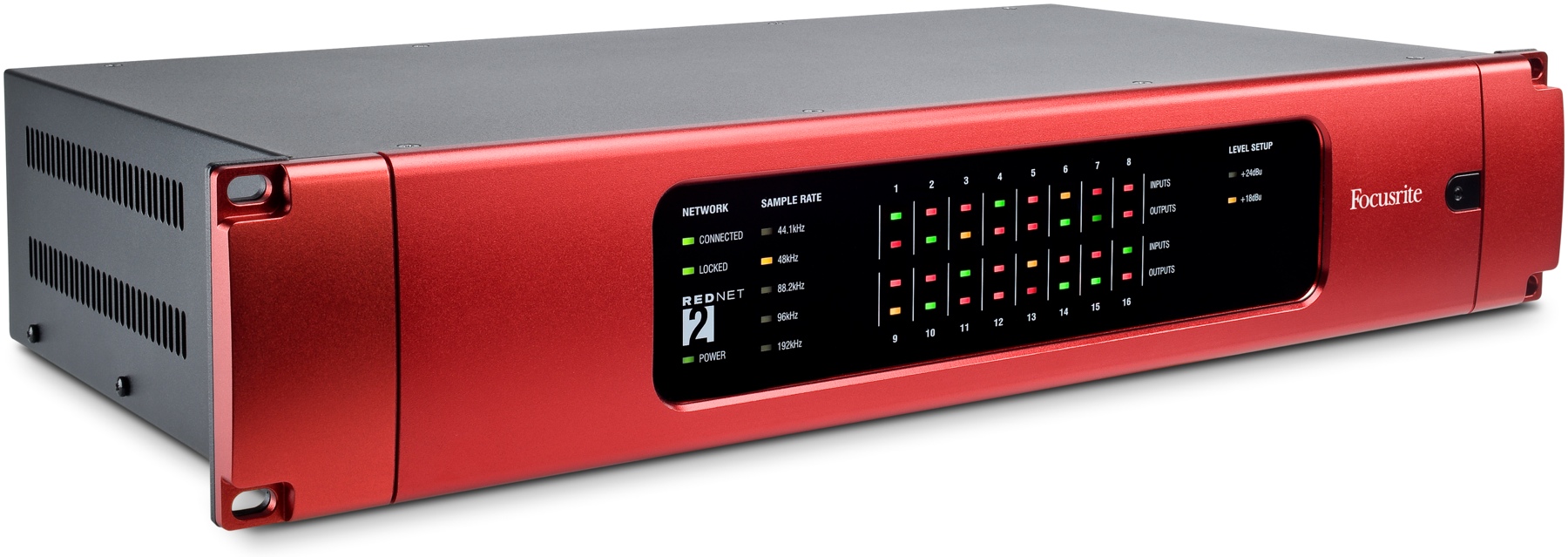

Focusrite RedNet 2

Elegant 16-channel Network Solution!
Focusrite's amazing RedNet 2 audio network interface makes it possible, with a single Ethernet cable, to connect your studio network. The RedNet 2 includes 16 analog inputs and outputs on DB-25 connectors plus a Dante Ethernet port. This interface gives you uncompromising quality; you'll appreciate the 119dB dynamic range, the jitter-minimizing JetPLL technology, the 192kHz quality, and the outstanding onboard Dante networking capabilities. RedNet interfaces take your audio from analog into an incredible world of digital flexibility, with the utmost clarity. Put the RedNet 2 to work in your studio network!




Watch RedNet - Chris Lord-Alge Overview Vi...
Watch Rednet - Sweetwater Video
Watch RedNet - Case Study Video
Watch RedNet - Worship Sound Pro NAMM 2013...




Focusrite RedNet Network Interfaces Features:

Reliable, robust digital audio networking for the studio
24-bit operation at up to 192kHz sampling rate
Up to 128 inputs and 128 outputs at 48 and 96kHz
Superb audio quality with a dynamic range of 119dB
Proven Dante networking technology uses standardnetworking components
JetPLLTM technology provides ultra-low-jitter in all I/O units
Units are hot-swappable, detected and configured automaticallyon plug-in RedNet 2 Features:
Dynamic Range: 119dB
THD+Noise (input and output) <0.001%
Input and output 0dBFS reference levels +18dBu (EBU) or +24dBu (SMPTE-RP155)
JetPLLTM technology minimizes jitter in the conversion process
Supported sample rates: 44.1, 48, 88.2, 96, 192kHz
Analog inputs 1-8 via DB-25 connector
Analog inputs 9-16 via DB-25 connector
Analog outputs 1-8 via DB-25 connector
Analog outputs 9-16 via DB-25 connector
Dante Ethernet port

Focusrite's RedNet audio network interfaces make it easy to get your analog audio into the your studio's digital audio network!

Tech Specs



Channels
16


A to D
Yes


D to A
Yes


Sample Rate
192kHz


Bit Depth
24-bit


Analog Inputs
2 x DB25


Analog Outputs
2 x DB25


Digital Inputs
Ethernet


Digital Outputs
Ethernet


Clock Inputs
No clock inputs


Clock Outputs
No clock outputs


Other I/O
No other I/O


Expansion Slots
No expansion slots


Rack Spaces
2U


Height
3.5"


Width
19"


Manufacturer Part Number
RedNet 2
