Focusrite Scarlett 18i20 (2nd Gen) USB Audio Interface

OVERVIEW


Second-generation 18-in/20-out USB 2.0 audio interface with 24-bit/192kHz performance.


Videos
Focusrite // The New Second Generation Scarlett Range

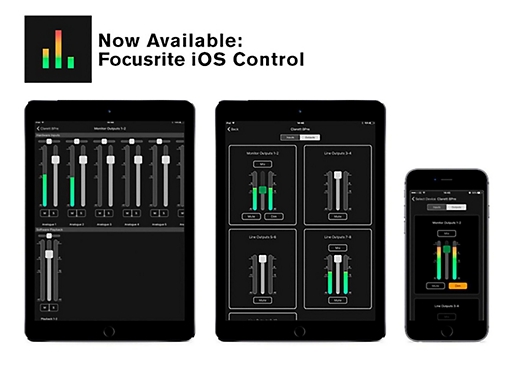

Eight natural-sounding combination input Scarlett mic preamps deliver exceptional headroom, loads of linear clean gain, low noise and minimal distortion. The two inputs on the front panel feature newly designed instrument inputs with extended headroom. The ADAT expansion ports allow you to add an extra eight analog inputs and outputs, particularly useful for anyone who wants to record higher channel counts and integrate lots of outboard gear. When it comes to outputs, Scarlett 18i20 delivers full routing and monitoring flexibility. There are two dedicated TRS jack outputs for studio monitors featuring anti-thump circuitry, plus eight more analog jack outputs, two stereo pairs providing mirrored independent headphone outputs on the front panel. With MIDI connectivity, you can also integrate your favorite hardware synths with your DAW. Wordclock Out is also on hand for sync'ing to external devices.Remote control from iPhone or iPadDownload the free Focusrite iOS Control app and adjust cue mixes created with the Focusrite Control desktop app remotely from an iPad, iPhone or iPod touch. New Generation - Better in Every WayThe second generation Scarlett range is packed full of upgrades. The lowest roundtrip latency in its class (2.74ms*) brings confidence to your performance, letting you record and monitor with software effects in real time. New metal gain controls and a sleeker red metal chassis reassure you of its improved industrial design, built to go anywhere. The Scarlett range also now operates at sample rates all the way up to 192kHz, and the input channels have evolved too. The latest Scarlett mic preamp features a more even gain structure, so you can accurately set your levels, and the instrument input has also been completely redesigned with increased headroom to handle seriously hot guitar pick-ups. Finally, Focusrite have provided analog protection circuitry across both the inputs and the outputs, guarding your interface against unwanted power surges.Intuitive Mix Control, Red Plug-ins and MoreThe included 'Focusrite Control' is a brand new software mixer for easy configuration of monitoring and routing setups. Simple and intuitive to use, Focusrite Control offers a traditional mixer workflow and allows immediate access to internal hardware functions. Also included are the software and effects you need; an exclusive version of Pro Tools | First - Focusrite Creative Pack (featuring 12 additional plug-ins including the Eleven Lite for real life guitar amp emulations), Ableton Live Lite, the Softube Time and Tone Bundle, Focusrite's Red Plug-In Suite, 2GB of Loopmasters samples and more.*Roundtrip latency was measured at 2.74ms, working at 96kHz with a 32 samples buffer on Logic Pro X, running on a Mac Pro and OS 10.11




FEATURES

Eight Scarlett mic preamps with plenty of even gain, exceptional headroom, low noise and minimal distortion
Two newly designed instrument inputs, now with increased headroom for seriously hot pick-ups
Class-leading digital conversion at up to 24-bit / 192kHz
Lowest roundtrip latency* in its class lets you perform and produce using effects in real time, with no need for DSP
ADAT expansion ports allow you to add an extra eight analog inputs and outputs
Ten balanced analog outputs, including a dedicated stereo pair with anti-thump circuitry
Two headphone outputs with dedicated volume controls
Focusrite Control software to easily configure your monitoring and routing setups
Includes Pro Tools | First - Focusrite Creative Pack and Ableton Live Lite
All the additional software and loops you need to record
Use it with all major DAWs on Mac and PC
MIDI I/O connectivity, ideal for sending/receiving MIDI
Stereo S/PDIF In and Out for connecting other digital devices



Bigger, faster, easier than ever before. Experience the 2nd generation Scarlett series today!



SPECIFICATIONS
Scarlett 18i20 (2nd Gen) USB Audio Interface



A-D Dynamic Range: 109 dB A-weighted (all inputs)

D-A Dynamic Range: 108 dB A-weighted (line outputs)Supported sample rates: 44.1 kHz, 48 kHz, 88.2 kHz A 96 kHzClock jitter:

Microphone InputsFrequency Response: 20 Hz ± 0.5 dB, 20 kHz ± 0.1 dB (min. gain)THD+N: -96 dB (1 kHz, –1dBFS, 20 kHz BW)Noise EIN: –122 dBu CCIR-RMS (measured at 60 dB of gain with 150 ohm termination)Maximum input level: +9 dBu (without pad)

Line Inputs (Front Panel)Frequency Response: 20 Hz ± 0.5 dB, 20 kHz ± 0.2 dB (min. gain)THD+N: -83 dB (1 kHz, –1dBFS, 20 kHz BW)Noise (NiPoS): –105 dBFS CCIR-RMS (measured at min. gain with 50 ohm termination)Maximum input level: > +28 dBu

Line Inputs (Rear Panel)Frequency Response: 20 Hz ± 0.5 dB, 20 kHz ± 0.1 dB (min. gain)THD+N: –96dB (1 kHz, –1dBFS, 20 kHz BW)Noise (NiPoS): -110dBFS CCIR-RMS (measured at min. gain with 50 ohm termination)

Instrument InputsFrequency Response: 20 Hz ± 0.3 dB, 20 kHz ± 0.1 dB (min. gain)THD+N: -83 dB (1 kHz, –1dBFS, 20 kHz BW)Noise (NiPoS): –103 dBFS CCIR-RMS (measured at min. gain)Maximum input level: +8 dBu (without pad)
Line Outputs 1 & 2Maximum Output Level (0 dBFS)+16 dBu, balancedTHD+N: -99 dB (1 kHz, –1dBFS, 20 kHz BW)

Weight and DimensionsWeight: 3.6 lb. (1.64Kg)Height: 2.6” (66 mm)Width: 8.94” (227 mm)Depth: 7.1” (180 mm)
