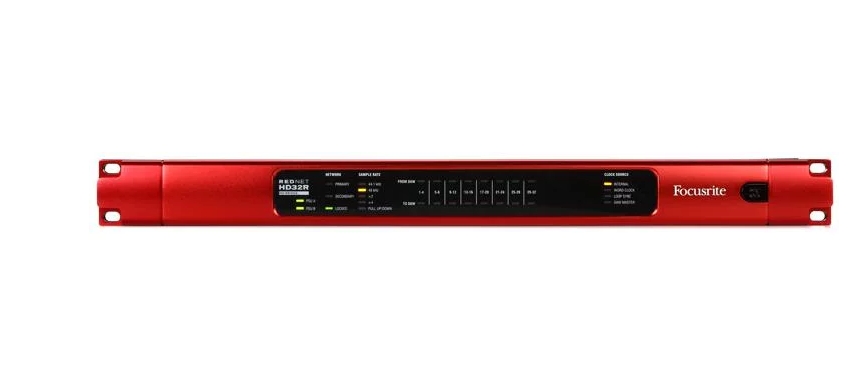

Focusrite RedNet HD32R

Pro Tools - RedNet Bridge with Redundancy
Connect your RedNet network to Pro Tools | HD or Pro Tools | HDX systems with the Focusrite RedNet HD32R 32-channel HD Bridge, with redundant power supplies and redundant networking for maximums stability and peace of mind in live sound and broadcast applications. We've helped configure countless RedNet systems here at Sweetwater, and the RedNet HD32R is amazingly easy to integrate with any Pro Tools rig. Via a simple Ethernet cable you can take up to 32 channels of audio and, with the help of a single RedNet HD32R unit, bridge them into Pro Tools | HD via DigiLink. Connect multiple units for larger track counts. Focusrite's RedNet HD32R syncs your entire RedNet system to any incoming digital clock or word clock. Get your audio into Pro Tools with the Focusrite RedNet HD32R 32-Channel HD Bridge.


Focusrite RedNet HD32R 32-channel HD Bridge Ethernet Network Connection Features:

Route up to 32 inputs and 32 outputs from your RedNet network direct into Pro Tools | HD via DigiLink
Connect up to 3 RedNet HD32R units for 96 inputs and outputs - the max supported by Pro Tools | HD
Redundant networking via two Neutrik Ethercon locking network connectors
Redundant power supplies for maximum system reliability in any environment
Upgrade to RedNet interfaces while remaining fully compatible with your saved sessions
Synchronizes your RedNet system to any incoming digital clock or a word clock source
JetPLLTM jitter-reduction technology
Up to 6 RedNet systems can be connected to a Pro Tools | HDX system for a total of 192 tracks @ 96kHz
Sample rate accuracy (internal sync source): <10ppm
Supported sample rates: 44.1, 48, 88.2, 96, 192kHz
Word Clock input via BNC port
Word Clock output via BNC port
Dante Ethernet port

Tech Specs

Computer Connectivity:IP Network
Form Factor:Rackmount
Simultaneous I/O:32 x 32
Digital Inputs:1 x BNC (Loop Sync)
Digital Outputs:1 x BNC (Loop Sync), 2 x DigiLink
Clock I/O:1 x Word Clock (In), 1 x Word Clock (Out)
Data I/O:2 x etherCON Ethernet
Rack Spaces:1U
Height:1.75"
Width:19"
Manufacturer Part Number:AMS-REDNET-HD32R
