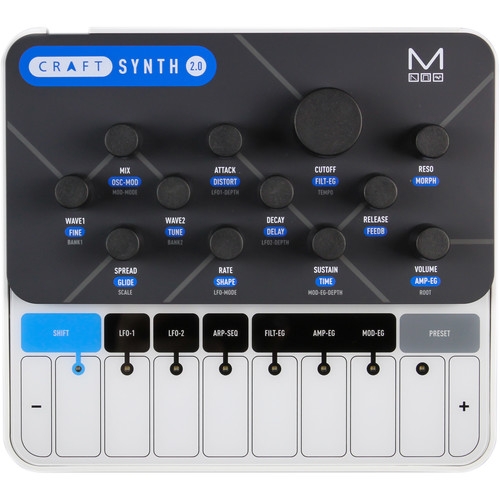

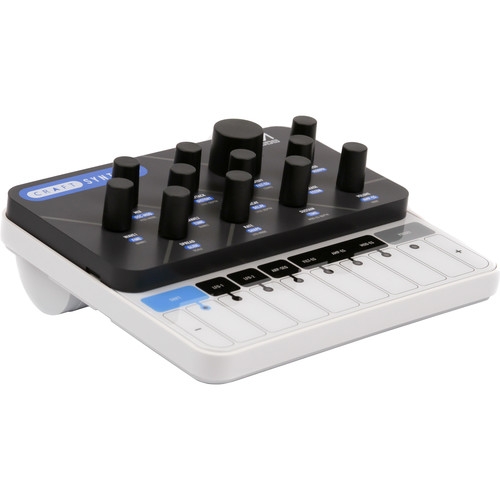

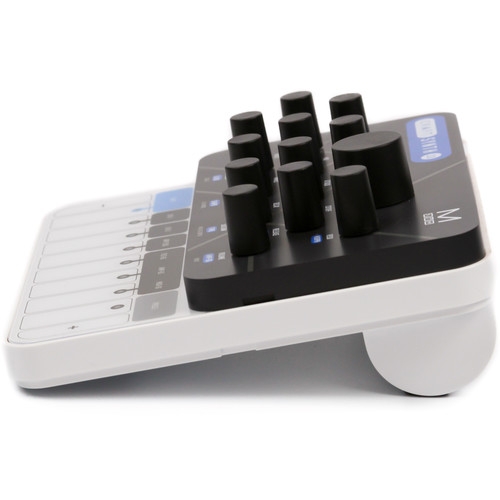

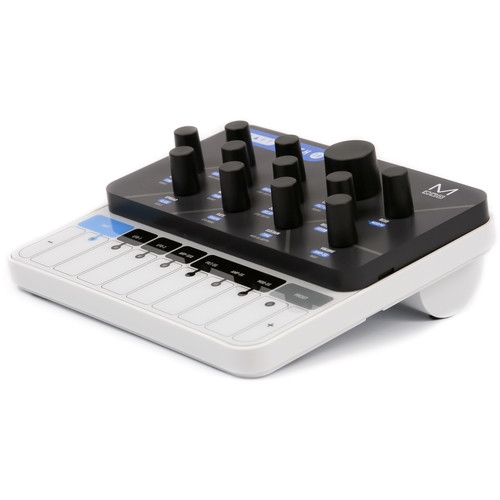

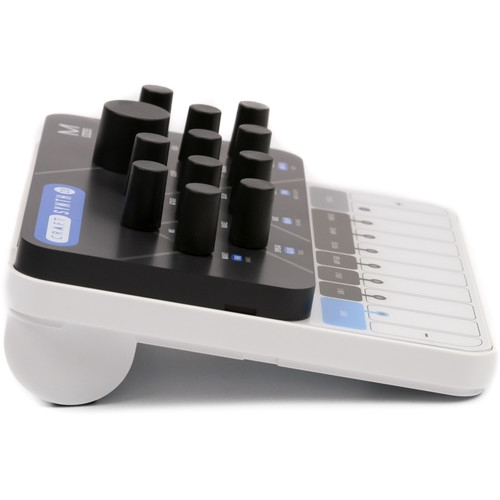

Modal Electronics CRAFTsynth 2.0 Monophonic Wavetable Synthesizer

Modal Electronics Craft Synth 2.0 Overview





The Modal CRAFTsynth 2.0 is a portable monophonic 8-oscillator wavetable synthesizer, featuring 45 morphable waveforms, 16 oscillator modifiers, a state-variable 2-pole filter, a 36-destination modulation matrix with 8 modulation slots, two audio rate LFOs, and a programmable sequenced arpeggiator. There are 8 oscillators in total with 2 selectable waveforms and mixer stage. Each of the 40+ waveforms available are split into 8 banks of 5 morphable waveform sets plus a sine/noise bank available on Wave 2 only. VA, digital, and generative waves are available along with selections from the Modal 002. It is possible to process and cross-modulate waveforms with 1 of 16 oscillator modifiers including frequency, phase modulation, hard/window sync, ring/amp modulation, derez/bitcrush, wavefolders, and waveshapers. Other notable features include a multi-option Unison/spread, which detunes the 8 oscillators for a huge sound, three envelopes for filter, amplitude, and modulation, and two audio-rate LFOs. The 8x8 modulation matrix allows you to pair one source with one destination. The onboard arpeggiator can be programmed and transposed for a variety of rhythms and sequences. The rear panel offers a 3.5mm main output and headphone output, as well as MIDI I/O on 5-pin DIN connectors and sync I/O on 3.5mm connectors. The CRAFTsynth 2.0 can be powered by three AA batteries or via the micro-USB port. The instrument also offers Class-compliant MIDI over USB. The free MODALapp is available on iOS, Mac, Windows, and Android platforms, allowing for deep editing of patches, presets, and advanced MIDI configurations, plus firmware update. What's more, the optional MODALplugin is available as an audio plugin version of MODALapp for tightly integrating the CRAFTsynth 2.0 with your DAW.






Key Features



Monophonic wavetable synthesizer
8 oscillators in total with 2 selectable waveforms and mixer stage
40 unique waveforms available split into 8 banks of 5 morphable waveform sets
VA, digital, and generative waves are available along with selections from the Modal 002
Process and cross-modulate waveforms with 1 of 16 oscillator modifiers including Frequency / Phase Modulation, Hard / Window Sync, Ring / Amp Modulation, Derez / Bitcrush, Wavefolders, and Waveshapers
Multi-option Unison/spread to detune the 8 oscillators for a huge sound
3 x envelope generators for Filter, Amplitude, and Modulation
2 x audio rate LFOs
8-slot modulation matrix with 8 sources, each source can have 1 destination. (LFO1, LFO2, and MOD-EG assignable from CRAFTsynth, Velo, Note, ModW, AftT, and Expression assignable from MODALapp)
Program and transpose patterns with the built-in sequenced arpeggiator
2-pole resonant filter that can be morphed from low pass, through band pass, to high pass
Delay and distortion (waveshaping overdrive, not bitcrushing) effects
Optional MIDI clock sync for LFOs and Delay
64 preset storage locations
8-key touch MIDI keyboard with 8 custom scales and root note selection
MIDI DIN in and out
Analog clock sync in and out (configured to the KORG / Teenage Engineering specification)
Class-compliant MIDI provided over USB connection to host computer or tablet
Headphone and line outputs
Powered by USB or 3 x AA batteries
Optional software editor available for macOS, Windows, iOS, and Android
Portable and compact design

Modal Electronics Craft Synth 2.0

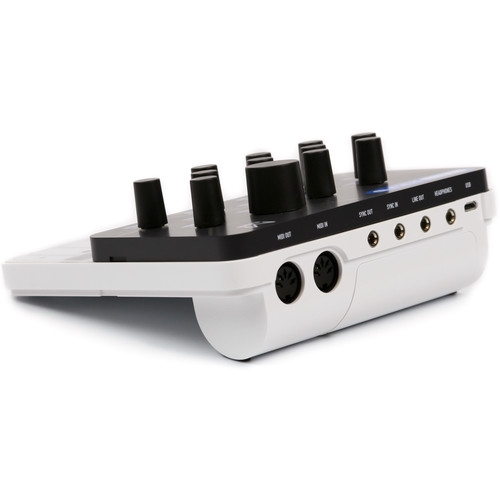

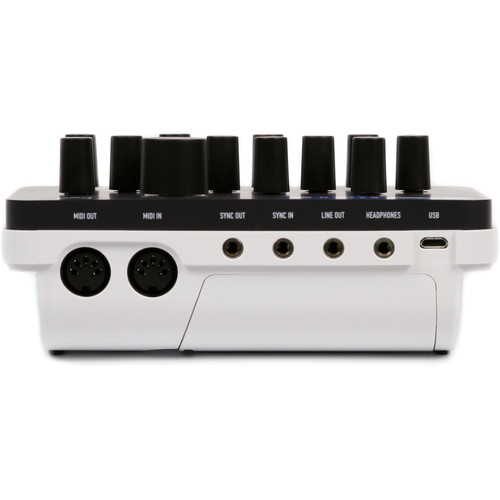

Connections
Master Line Output: 1/8" / 3.5 mm Connector Headphone Output: 1/8" / 3.5 mm Connector Analog Clock Sync I/O: 2 x 1/8" / 3.5 mm Connectors MIDI I/O: 2 x 5-Pin DIN Connectors Micro-USB Port


Power
3 x AA Batteries USB Power


Dimensions
6.0 x 5.5 x 3.0" / 152.4 x 139.7 x 76.2 mm


Weight
Not Specified by Manufacturer





Packaging Info



Package Weight
1.04 lb


Box Dimensions (LxWxH)

8.2 x 7.1 x 3.7"












Shipping approx 3 lbs.
