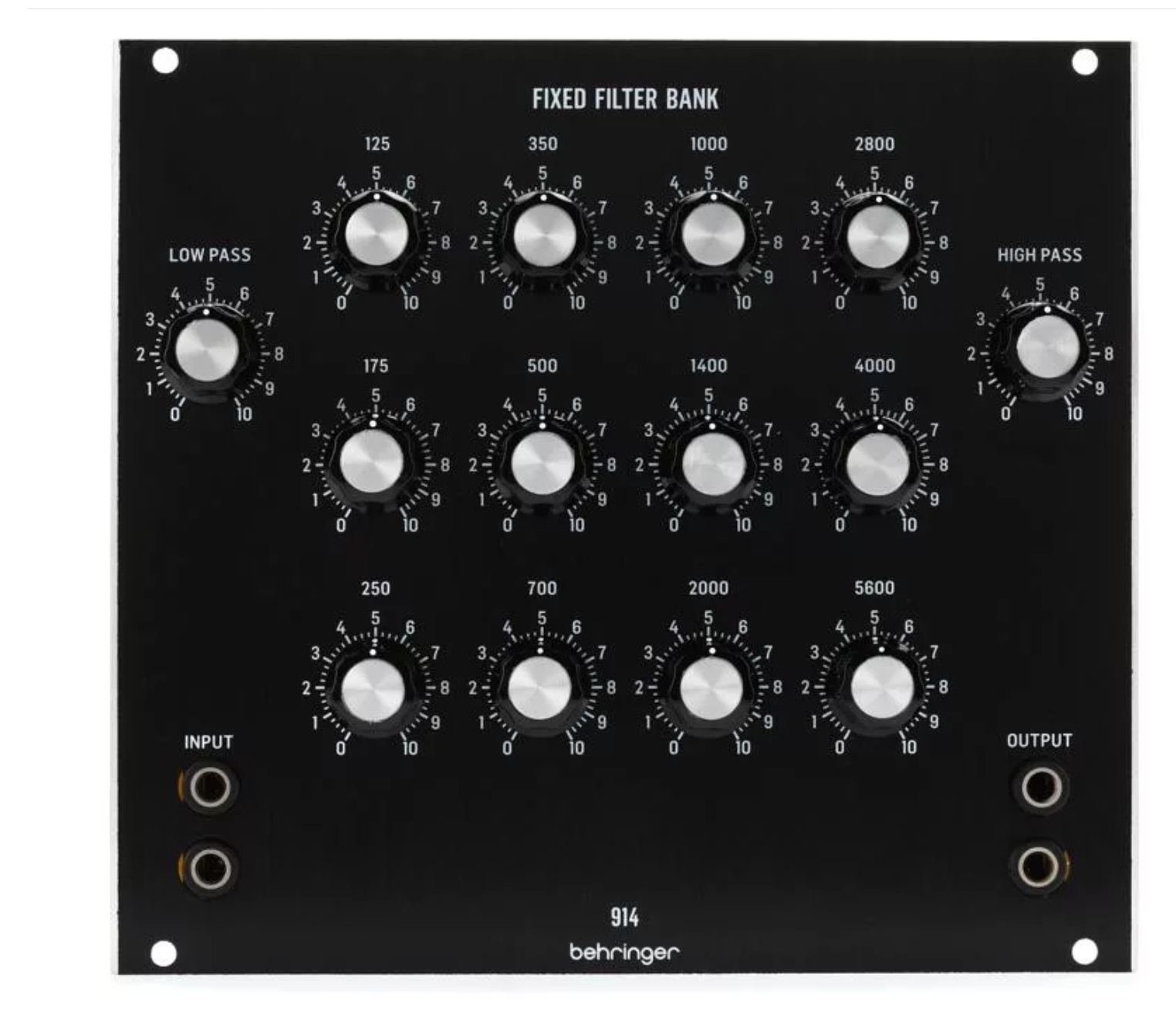

Behringer 914 Fixed Filter Bank Eurorack Module

Vintage-style Analog Toneshaper for Eurorack
A faithful reproduction of one the most famous analog toneshaping modular synth units, the Behringer 914 Fixed Filter Bank gives you unprecedented control over the timbre and resonance of your synthesized sound creations. The Behringer 914 is loaded with twelve active bandpass filters — ranging from 125Hz to 5.6Khz — and 24dB/octave highpass and lowpass filters. Not simply an EQ, the Behringer 914 has a characteristic sound that adds harmonic richness to any signal. Whether using it alongside Behringer’s other System 55 Eurorack modules or their favorite third-party modules, synthesists at Sweetwater agree that the Behringer 914 brings a new level of dimensional and detail to any sound it touches.










Behringer 914 Fixed Filter Bank Eurorack Module Features:

Authentic reproduction of a legendary analog fixed filter bank module
Provides detailed shaping of a sound source’s timbre and resonance
12 bandpass filters at 125Hz, 175Hz, 250Hz, 500Hz, 700Hz, 1kHz, 1.4kHz, 2kHz, 2.8kHz, 4kHz, and 5.6kHz
24dB/octave highpass and lowpass filters
2 inputs and 2 outputs wired in parallel
28HP Eurorack module






Tech Specs

Type: Fixed Filter Eurorack Module
Depth: 1.7" (42mm)
HP Size: 28HP
Power Usage: +12V/60mA, -12V/70mA
Power Supply: Requires Eurorack case and power supply
Manufacturer Part Number: 000-E2800-00010

THBS: www.music-blvd.com $99
