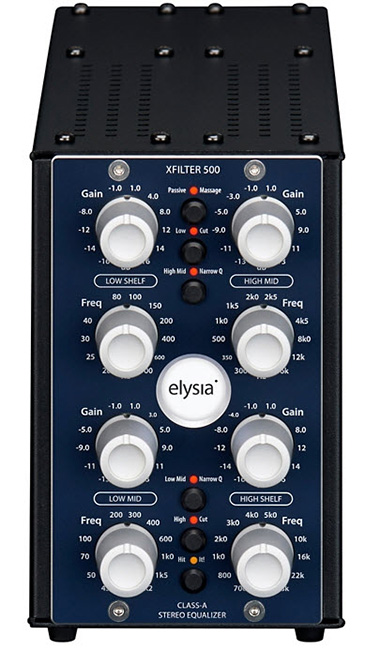

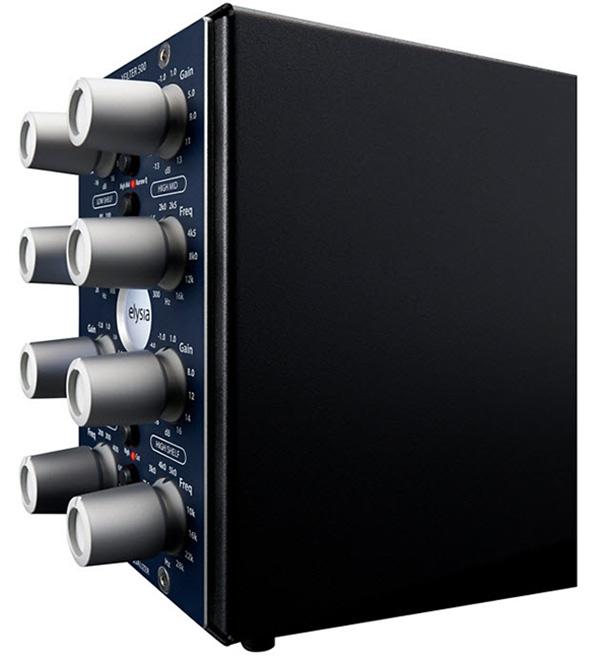

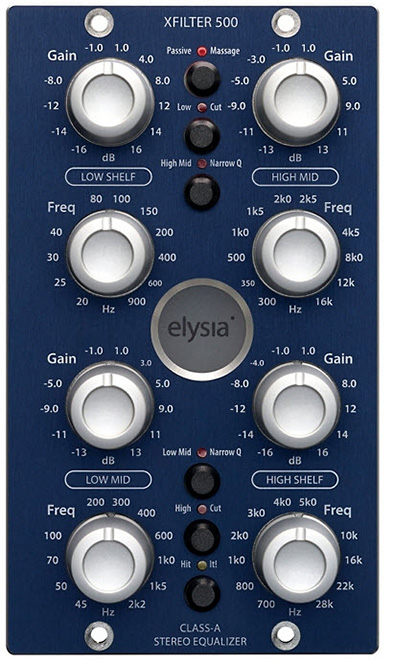

Elysia xfilter 500 Class A Discrete Stereo Parametric EQ

OVERVIEW
Top quality EQ in the popular 500 format.


The xfilter 500 is a true linked stereo EQ in the 500 series format. It gives you the expensive sound of an all class-A equalizer in a surprisingly affordable package, with a precise stereo image based on computer-selected, stepped potentiometers and low tolerance film capacitors. This EQ is serious about flexibility. It offers high and low shelf bands which can be switched into high and low cut filters with resonance, two mid peak filters with wide and narrow Q, plus additional passive LC stages with shielded coils for a glorious top end. With its exceptionally open sound, straight transient projection and solid punch, the xfilter is the perfect match for your xpressor – or any other piece of delicious outboard gear. • 100% Class-A Topology Expensive boutique sound made affordable. • True Stereo Operation Two channels, just one set of controllers. • Resonance High & Low Pass Filters Extremely useful secret weapons. • Additional Passive High-Band Magic LC polish for opening up the top end. • Switchable Filter Quality Wide and narrow Q for the parametric mids. • Special Low Tolerance Pots and Caps Computer-selected for better stereo accuracy. • Stepped Controllers Fast and easy recall guaranteed. • Made in Germany Build quality without compromise.



SPECIFICATIONS
xfilter 500 Class A Discrete Stereo Parametric EQ


Frequency response:
THD+N:


@ 0 dBu, 20 Hz - 22 kHz: 0.0018 %
@ +10 dBu, 20 Hz - 22 kHz : 0.005 %


Noise floor


20 Hz - 20 kHz (A-weighted): -98 dBu
Dynamic range
20 Hz - 22 kHz: 120 dB


Maximum level


Input: +21 dBu
Output: +21 dBu


Impedance


Input: 10 kOhm
Output: 68 Ohm


Power consumption


Total: 210 mA
Per slot: 105 mA
