DJI Inspire 1 Quadcopter with 4K Camera and 3-Axis Gimbal

Resources:

Guides & Manuals


Capture 4K video and take 12-megapixel still photos from the air with the DJI Inspire 1 Quadcopter with Integrated Camera and 3-Axis Gimbal. Forgoing the fixed landing gear design found on many earlier quadcopters, the Inspire 1 features a retractable arm system whereby the underside of each prop motor has a foot to act as a landing pod when the arms are lowered. In-flight, the arms lift up to provide the camera an unobstructed 360-degree view. A 3-axis gimbal keeps shots steady and the camera pointed the same direction as the quadcopter banks and turns. The camera records internally to microSDHC/SDXC memory cards (16GB inlcuded) and can also beam a live 720p feed to a mobile device running the DJI Lightbridge app or a monitor or FPV glasses with an HDMI input. One transmitter (radio controller) is included and a second can be added so that one operator can pilot and another can pan and tilt the camera. As with many other multi-rotor systems, the Inspire 1 relies on a GPS-based stabilization system that - thanks to spatial awareness - is able to hold a position even when experiencing wind interference, can compensate for overzealous pilot inputs to help avoid stalling, automatically brings the aircraft home in the event of signal loss or at the press of a button, and makes possible a number of semi-automated flight modes that can be enabled through the app. There is also an "indoor" mode which relies on Optical Flow technology - essentially a special camera - provide stability indoors or in other contexts where GPS is unavailable (Note: certain features will be unavailable in indoor mode). This bundle includes the Inspire 1 along with gimbal and camera, a transmitter, a flight battery, a battery charger, and a tablet holder that mounts on the transmitter. To store and transport the aircraft, a case with fitted cut-outs is included. It holds the Inspire with rotors detached, one or two transmitters, props, spare flight batteries, and more.


What Ready-to-Fly Means
This Inspire 1 bundle comes ready-to-fly (RTF). This means a pre-bound transmitter (radio controller) is included and that no major assembly is required - in particular, no assembly that requires soldering. It is important - as with any multi-rotor - to follow the user guide to ensure proper calibration before embarking on your first flight

Integrated 4K Camera

4K and HD Video Capture

The Inspire 1 Camera shoots 4K video at 24p and 30p, and can shoot HD video frame rates from 24p to 60p. It features a 1/2.3" CMOS sensor with a 94-degree field of view (FOV) lens. This field of view works out to about 20mm in 35mm equivalent, which gives you a wide but not extremely wide or fisheye framing - while not as immersive as a fisheye, this FOV features less distortion and gives the subject more emphasis



3-Axis Gimbal
The camera is mounted via an integrated 3-axis gimbal which uses brushless servo motors to keep the shot stable and the horizon level. The camera pans a full 360-degrees so that no matter which way the quadcopter turns, the camera can remain locked on the subject. Manual panning and tilting can be affected using controls on the transmitter


Live HD View
A real-time feed from the Inspire 1 Camera can be displayed in 720p HD on a mobile device or HDMI monitor, making this it a great choice for FPV (first-person view) flying as well as enabling videographers and photographers to monitor framing from the ground. This is made possible by the inclusion of the DJI Lightbridge system within the flight electronics, which features a range of up to 1.2 miles For connecting an FPV monitor or glasses there is an HDMI port on the transmitter. Plus there is a USB port to keep you mobile device's battery topped up. And included mount allows you to attach a smartphone or tablet directly to the transmitter


Modular Gimbal and Camera
Inspire 1's gimbal and camera can be removed from the aircraft for safe transport and future upgrades

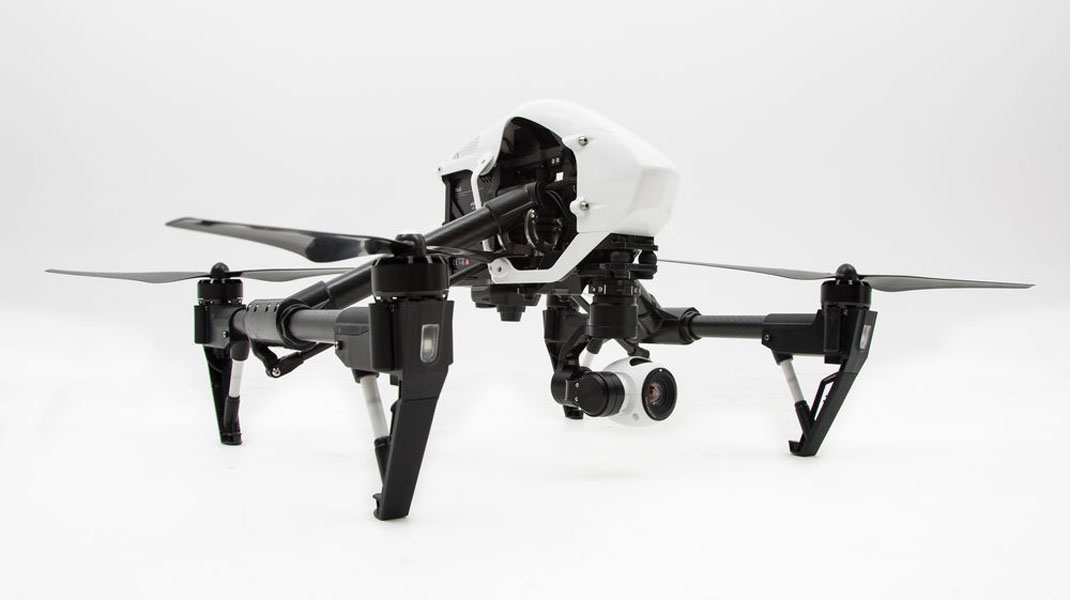

Airframe Design

Retractable Carbon Fiber Arms
The prop arms rest in a lowered position when the Inspire is on the ground, acting as landing gear. Once in the air, they can be retracted to give the camera unobstructed views across 360-degrees. Carbon fiber is used in the construction because of its high strength to weight ratio


Aerodynamic Design
Not only does it give the Inspire 1 a sleek look, the aerodynamic airframe helps reduce resistance for better performance and increased battery life

Flight Control System

Fly Indoors and Without GPS
DJI's Optical Flow technology uses a specially designed camera as well as sonic waves to provide the same stability function indoors as GPS does outdoors. This technology allows the Inspire to hold its location, stop when the controls are released, and quickly respond to pilot commands even when GPS is unavailable


App-Based Control Software
Everything from manual camera controls to flight telemetry - even auto takeoff and landing - can be accessed via the Inspire 1 Mobile app. It is also possible to create autopilot courses using waypoints, just as you would on the DJI iPad Ground Station System Note: The tablet must be connected to the transmitter via USB, and to use the waypoint map an Internet connection is required


Manual Mode
Change all of your camera settings, including ISO, White Balance, Exposure, and more on the fly ensuring every shot looks exactly the way you want


Live Map and Radar
See precisely where your Inspire 1 is at all times on the live map. The map can be enlarged when needed, and shows your most recent flight path


Dynamic Home Point
When GPS signal is available on the transmitter (remote control), the Home Point automatically refreshes. This becomes useful while traveling in a car or on a boat allowing the return-to-home point to move where the operator goes. Multiple configurations are available via the Dynamic Home Point function


Auto-Takeoff and Landing
Takeoff and landing are available with just a tap. Tap once to takeoff and your Inspire 1 will hover and transform, ready to start filming. Then tap again to make it transform into landing mode and auto land


Transmitter Customization
Put yourself in charge by tailoring the Inspire 1's controls to your personal needs. This way, your Inspire 1 moves and responds in ways you're most comfortable with

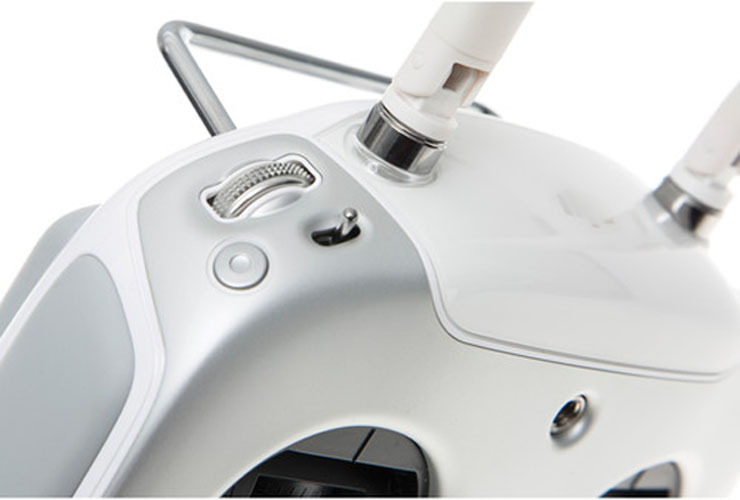

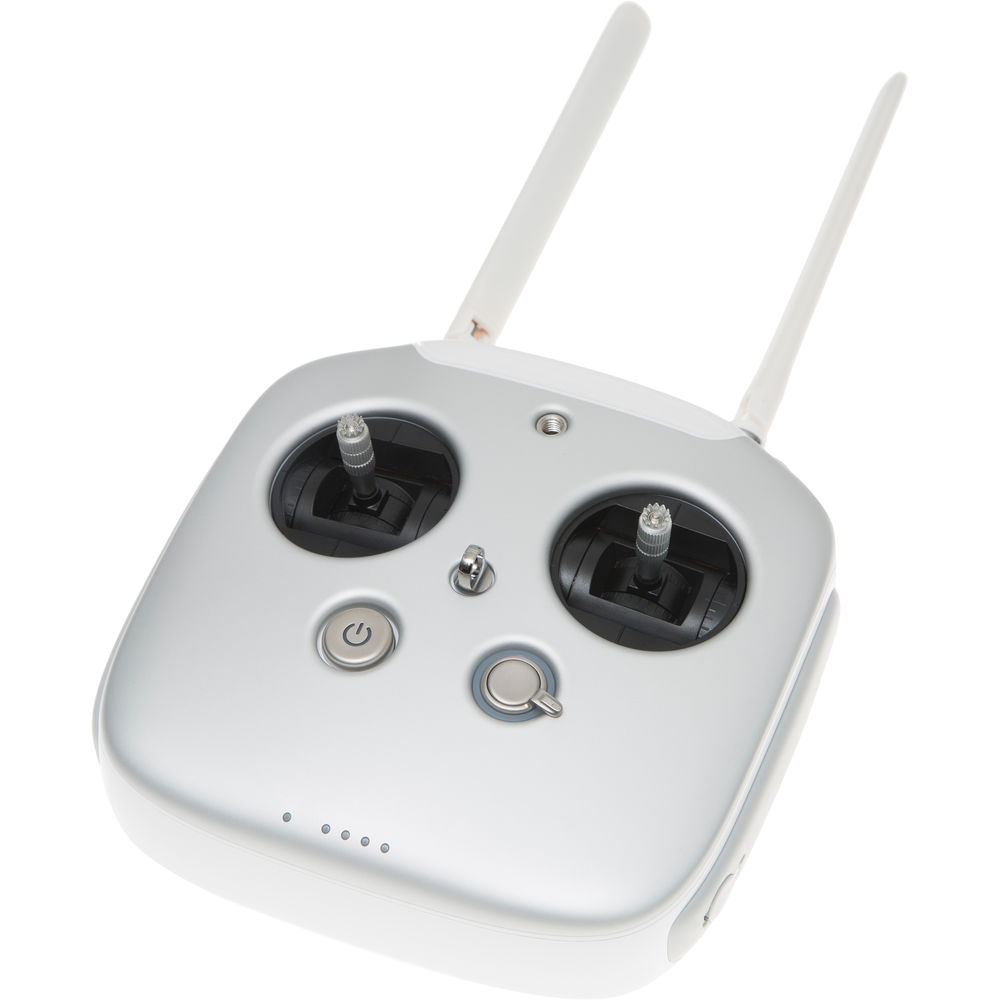

Transmitter (Radio Controller)

Take control of your Inspire 1 in the air with a dedicated transmitter (radio controller) designed specifically for it. Operating on 2.4 GHz, it features dedicated buttons for photo and video capture, a gimbal control dial, and more. It includes an integrated 6000mAh rechargeable battery


Use Two Transmitters
For an even greater level of precision, use a second transmitter and fly with a friend. With two people controlling the same quadcopter, one person pilots the flight path while the other aims the gimbal and camera. Each user can have their own screen to see exactly what is being shot in real-time

Smart Battery System

Smart Power Management
The flight battery constantly supplies the flight computer with remaining voltage. Using special algorithms the computer supplies the pilot with estimates of remaining flying distance and time to return home


Automated Charging
The battery tracks the voltage of each cell, the total number of charges and discharges, and the overall health and battery status






Performance


Hovering Accuracy (GPS Mode)
Vertical: 1.6' / 0.5 m Horizontal: 8.2' / 2.5 m


Maximum Angular Velocity
Pitch: 300°/s Yaw: 150°/s


Maximum Tilt Angle
35°/s


Maximum Ascent/Descent Speed
Ascent: 16.4 fps / 5 m/s Descent: 13.1 fps / 4 m/s


Maximum Speed
72.2 fps / 22 m/s (Attitude mode; no wind)


Maximum Flight Altitude
14,764' / 4,500 m


Maximum Wind Speed Resistance
32.8 fps / 10 m/s


Maximum Flight Time
Up to 18 minutes






Camera


Model
Name: X3 Designation: FC350


Sensor
Sony EXMOR 1/2.3" CMOS


Resolution
12.0 MP


Lens
Field of View: 94° Focal Length (35 mm Equivalent): 20 mm Aperture: f/2.8 Design: 9 elements in 9 groups; aspherical lens element Filters: Anti-distortion filter; UV filter


Video Recording
UHD (4K): 4096 x 2160: 24p, 25p 3840 x 2160: 24p, 25p, 30p FHD (1080p): 1920 x 1080: 24p, 25p, 30p, 48p, 50p, 60p HD (720p): 1280 x 720: 24p, 25p, 30p, 48p, 50p, 60p Maximum Bitrate: 60 Mbp/s


File Format
Photo: JPEG, DNG Video: MP4 in a .MOV wrapper MPEG-4 AVC/H.264


Recording Media
Type: microSD/SDHC/SDXC up to 64 GB Speed: Class 10 or faster Format: FAT32/exFAT


Photography Modes
Single shot Burst: 3, 5, 7 frames per second (AEB: 3/5 frames per second; 0.7 EV bias) Time-lapse


Operating Temperature
32 to 104°F / 0 to 40°C






Gimbal


Model
Zenmuse X3


Number of Axes
3-axis


Control Accuracy
±0.03°


Maximum Controlled Rotation Speed
Pitch: 120°/s Pan: 180°/s


Controlled Rotation Range
Pitch: -90° to +30° Pan: ±330°


Angular Vibration Range
±0.03°


Output Power
Static: 9 W In Motion: 11 W


Operational Current
Static: 750 mA In Motion: 900 mA


Mounting
Detachable






Flight Controller


Indoor Hovering
Enabled by default


Optical Sensor (Optical Flow)
Frequency: 50 Hz Velocity Range: Below 26.2 fps / 8 m/s (6.6' / 2 m above the ground) Altitude Range: 2 to 196.8" / 5 to 500 cm Operating Environment: Rich pattern surface with adequate lighting (> 15 lux) Operating Range: 0 to 8.2' / 0 to 2.5 m






Motor


Model
DJI 3510






Propeller


Model
DJI 1345






Transmitter


Operating Frequency
Transmitter to Transmitter: 5.728 to 5.850 GHz Transmitter to Aircraft: 2.400 to 2.483 GHz


Range
Line-of-Sight: Up to 6561.7' / 2000 m


Receive Sensitivity
1% PER:-93 dBm


EIRP
10 dBm at 900M; 8 dBm at 5.8G; 20 dBm at 2.4G


Connectivity
1 x USB type A female (for connecting mobile device) 1 x Micro-USB for firmware updates 1 x Mini-HDMI video output for FPV 1 x CAN-Bus port (for future accessory)


Dual User Capability
Host-and-slave connection


Mobile Device Holder
Tablet or smartphone


Output Power
9 W


Power Requirements
1.2 A at 7.4 VDC


Battery
6S LiPi; 6000 mAh


Charging Temperature
Less than 3 Months: -4 to 113°F / -20 to 45°C More than Three Months: 72 to 82°F / 22 to 28°C


Storage Temperature
72 to 82°F / 22 to 28°C -4°F / -20°C


Mobile Device Holder
Device Width: 2 to 6.7" / 5 to 17 cm






Flight Battery


Model
TB47


Voltage
6S LiPo; 22.2 VDC


Capacity
4500 mAh / 99.9 Wh


Maximum Charging Power
180 W


Operating Temperature
-4 to 104°F / -20 to 40°C


Storage Temperature
-4 to 113°F / -20 to 45°C 72 to 82°F / 22 to 28°C


Charging Temperature
32 to 104°F / 0 to 40°C


Weight
1.3 lb / 570 g






Charger


Model
A14-100P1A


Voltage
26.3 VDC


Output Power
100 W






Mobile App


System Requirements
iOS: 7.1 or later Android: 4.1.2 or later Note: The device must be connected to a transmitter via USB (wireless linking is not supporting). Additionally, waypoint navigation requires an active Internet connection in order to load the maps






General


Model
Aircraft: T600


Operating Temperature
14 to 104°F / -10 to 40°C


Dimensions
Diagonal Distance: Landing Gear Lowered: 22" / 559 mm Landing Gear Raised: 22.9" / 581 mm Overall Dimensions: 17.2 x 17.8 x 11.9" / 438 x 451 x 301 mm Transit Case: Exterior: 22.4 x 19.7 x 10.6" / 57 x 50 x 27 cm


Weight
With Battery: 6.5 lb / 2.9 kg
