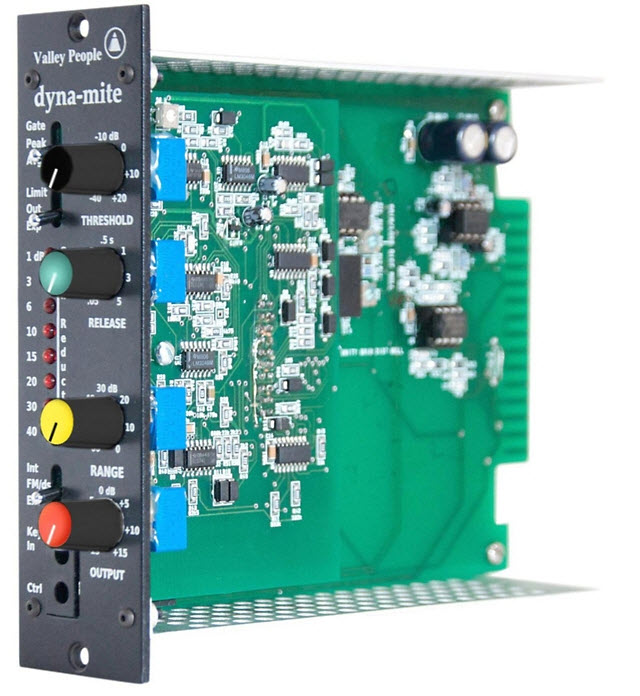

Valley People Dyna-Mite 500 Series Compressor/Limiter

OVERVIEW
Boutique compression and limiting.


The dyna-mite is the workhorse of the Valley product line. It was designed to solve problems during tracking and mixdown. In its peak limit mode, the dyna-mite could respond to transients in around 6 microseconds, while in the average mode, the integration time was closer to 10 ms. This doesn't mean it took 10 ms to respond to transient information, it just allowed some of the fast rising waveforms to pass through while it integrated them in order to adjust its gain. The result is a really fast limiter that doesn't "squash" the processed program, or a very unobtrusive average limiter that could perform 20 or more dB of gain reduction without producing large amounts of objectionable dynamic distortion. There is gain recovery coupling in the control, so it works as a high ratio compressor when the threshold is adjusted down below 0 dB, which is its nominal rotation point. As an expander and gate, the dyna-mite is exceptional due to the presence of the auto-release circuit, which was originally called Anticipatory Release. This circuit prevented the release circuit from interfering with the attacking portion of the control waveform, yet was capable of very fast release times when the device was not being called on to open up to unity gain by a rising signal wavefront.



FEATURES

Fast limiting
Transparent
Low dynamic distortion



Order now and bring the sheen of pro processing into your mixes.
SPECIFICATIONS
Dyna-Mite 500 Series Compressor/Limiter
INPUT

Signal Input Impedance: 94 kohm in parallel with 47 pF balanced, or 47 kohm in parallel with 47 pF unbalanced
Input Level for +4 dB Output: Nominally -II dB + 19 dB @ 1kHz sine input in bypass; -59 dB to +24 dB in limiting
Maximum Input Level Before Clipping: +24 db
External Input Impedance: Same as signal input specification
Maximum External Input: Sensitivity: -40 dB for ducking and keying (depends upon threshold setting)

OUTPUT

Output Impedance: 40 ohm unbalanced
Maximum Output Level: +21 dBm (600 ohm) Quiescent Distortion @ +10dB Input:0.04% 1kHz THD@ unity gain

MECHANICAL

Front Panel Controls: THRESHOLD -40 dB to +20 dB; RELEASE 0.05 s to 5 s/20 dB; RANGE 0 dB to -60 dB; OUTPUT -15 dB to + 15 dB
Front Panel Switches: pk/avg/gate DET (detector);
int/ds-fm/ext DET (source);
limit/out/exp MODE
LINK (connects control circuitry of both channels for stereo operation) POWER On , Off (as indicated by "power on " LED)
Metering: 8 LED gain reduction meter
1 LED clip warning indicator
Output Noise and Hum (@ unity gain, source impedance 1000 ohm) -83 dB (20 Hz to 20 kHz)
