Coleman Audio MBP4 Quad VU Meter Module

You Need Professional Metering
The Coleman Audio MBP4 is a lifesaver in your studio or live setup. Without VU meters, you're flying blind. Light meters can be off as much as 1dB per segment, which limits their usefulness in critical applications. Standard equipment in recording and broadcast, the VU meter is an indispensable reference tool no audio professional should be without. The MBP4 is a stand-alone package with four VU meters, -10/+4dB-switchable operating levels, buffer amps to prevent loading and distortion, input level trims, and an internal power supply. You need pro metering - outfit your rig with the Coleman Audio MBP4.
Coleman Audio MBP4 Features at a Glance:

Light meters don't cut it
Two switchable operating levels
Internal power supply

Light meters don't cut it

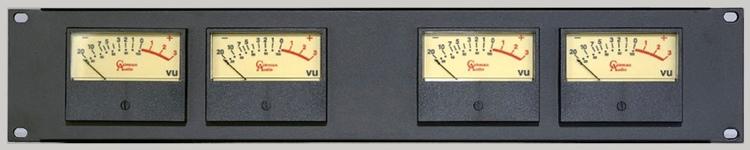

The Coleman Audio MBP4 is fitted with four honest-to-goodness VU meters - the gold standard for professional metering. Light meters are segmented and may be off by as much as 1dB per segment, which can throw off the balance of your mix bus - or worse. Face it: you need proper VU meters.
Two switchable operating levels
The Coleman Audio MBP4 features a button on the back panel that switches operation between professional +4 level and -10 consumer level. You can switch back and forth immediately according to the destination spec requirements of your projects. Very handy.
Internal Power Supply
The Coleman Audio MBP4 features an internal power supply. With no wall wart to annoy you, you get more freedom of placement, and a bonus: Coleman will set up the power supply for your country of choice - at no additional cost. Just let your Sweetwater Sales Engineer know where you'll be using your new MBP4.
Coleman Audio MBP4 Features at a Glance:

2 independent VU meters in a stand-alone package
Perfect for mixdown, SR, broadcast, duplication facilities, and test bench
Frequency response: 40Hz-40kHz (+/-.4dB)
2 switchable operating levels (-10dB/+4dB)
Input level trims for custom operating levels
Buffer amps to prevent loading and distortion
Internal power supply (set up for country of choice at no additional cost)

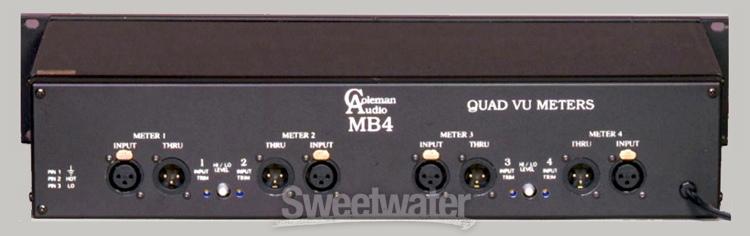

Balanced bridging XLR inputs; XLR through jacks
Desktop enclosure
Meters meet ANSI specifications
Adjustable peak indicators
2U chassis, 10" deep

The Coleman Audio MBP4 - you need this indispensable reference tool!


Tech Specs



Manufacturer Part Number
MBP4
