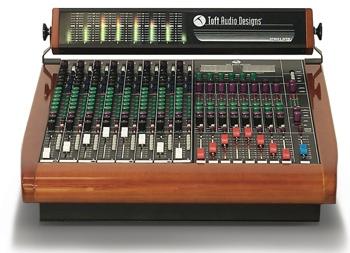

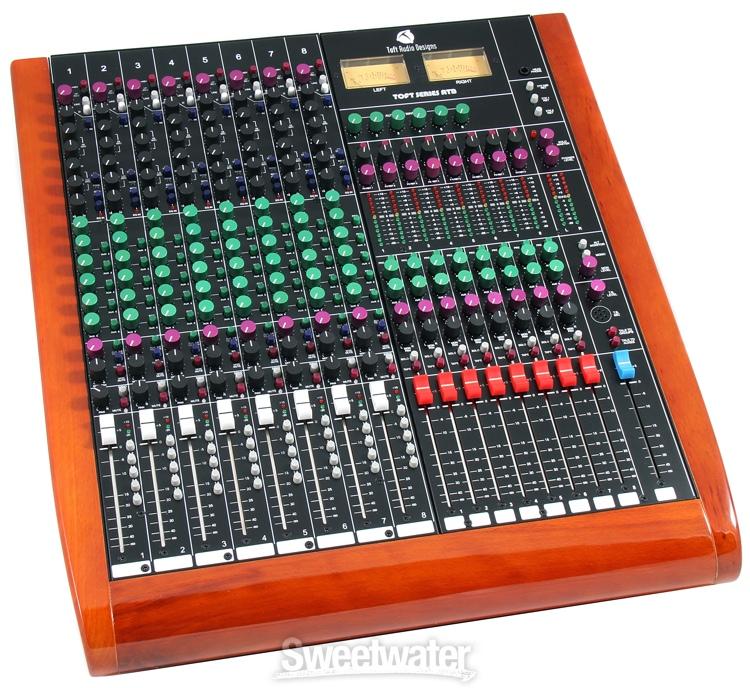

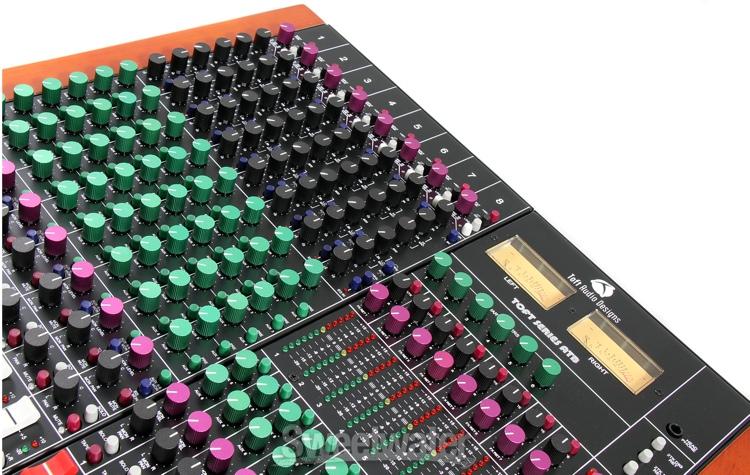

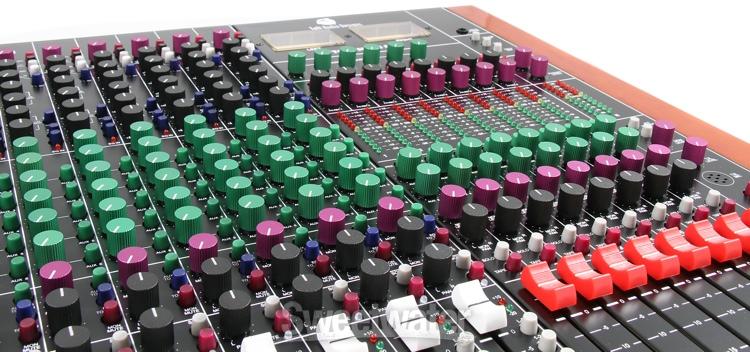

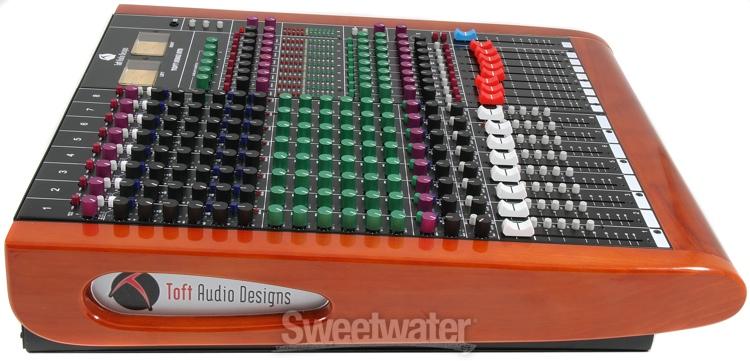

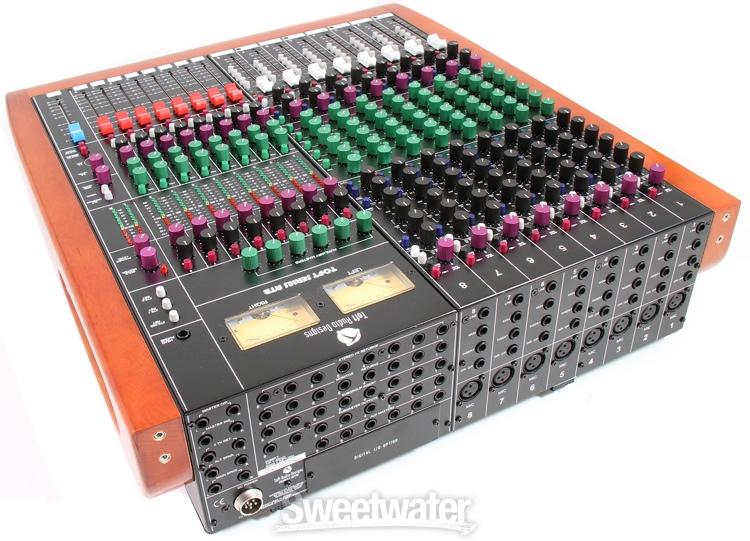

Toft Audio Designs ATB-08M 8 Channel Mixer w/ Meter Bridge

The Trident Series Console - Reborn!
The Toft Audio ATB08 gives you the chance to own an 8-channel Trident Series console, plus the 8-channel meter bridge, at an extraordinary value. A true 8-channel reincarnation of the world-famous Trident Series 80 board, the ATB08 was crafted by the original Trident co-designer, Malcolm Toft. The ATB08 gives you the musical 4-band equalization section and the powerful routing options that made the original Trident Series 80 board a legend in the eyes of many recording engineers. This is your chance to bring a piece of recording history into your studio.





Watch ATB Series - Sweetwater Video
Watch Bob Kulick and Brett Chassen at Wo...
Watch ATB08 and ATB16 - Overview Vi...




Toft Audio ATB08 Analog Mixing Console Features at a Glance:

8 premium channel strip modules
4-band musical EQ
8 mix buses with outputs
Direct outs on every channel
In-line monitoring for every input channel strip

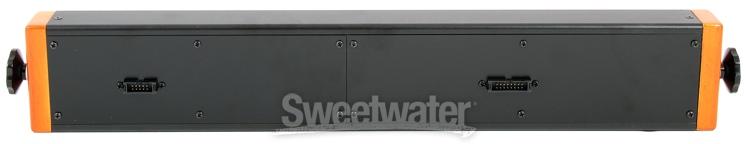

8-channel meter bridge included
Additional 8 monitor returns in group section
Vintage Series 80 EQ for every input channel
6 aux sends on every input channel strip
8 fully dedicated stereo aux returns

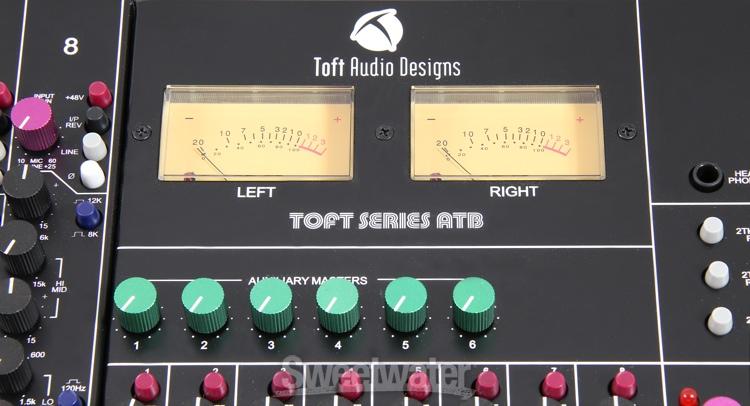

Super-accurate 12-stage LED meter

Add a piece of music recording history to your studio, with a Toft ATB08 8-channel Trident Series analog mixing console!


Tech Specs



Type
Analog


Channels
8


Inputs - Mic Preamps
8 x XLR (CH 1-8)


Inputs - Line
8 x 1/4" (CH 1-8), 8 x 1/4" (MON)


Outputs - Main
2 x 1/4"


Outputs - Direct
8 x 1/4" (CH 1-8)


Outputs - Other
2 x 1/4" (Alt), 2 x 1/4" (Master), 2 x 1/4" (2 TR RET), 8 x 1/4" (Sub)


Headphones
1 x 1/4"


Send/Return I/O
6 x 1/4" (Aux Masters), 8 x 1/4" (Monitor Returns), 8 x 1/4" (Stereo FX Returns)


Phantom Power
8


EQ Bands
4-band Sweepable Hi-Mid, Lo-Mid (CH 1-8)


Aux Sends
1 x Post, 5 x Pre/Post


Busses/Groups
8 x Bus


Faders
17 x 100mm


Channel Inserts
Yes (CH 1-8), 2 x 1/4" (Master Inserts), 8 x 1/4" (Subgroup Inserts)


Height
5"


Width
21"


Depth
22.5"


Manufacturer Part Number
ATB 08
