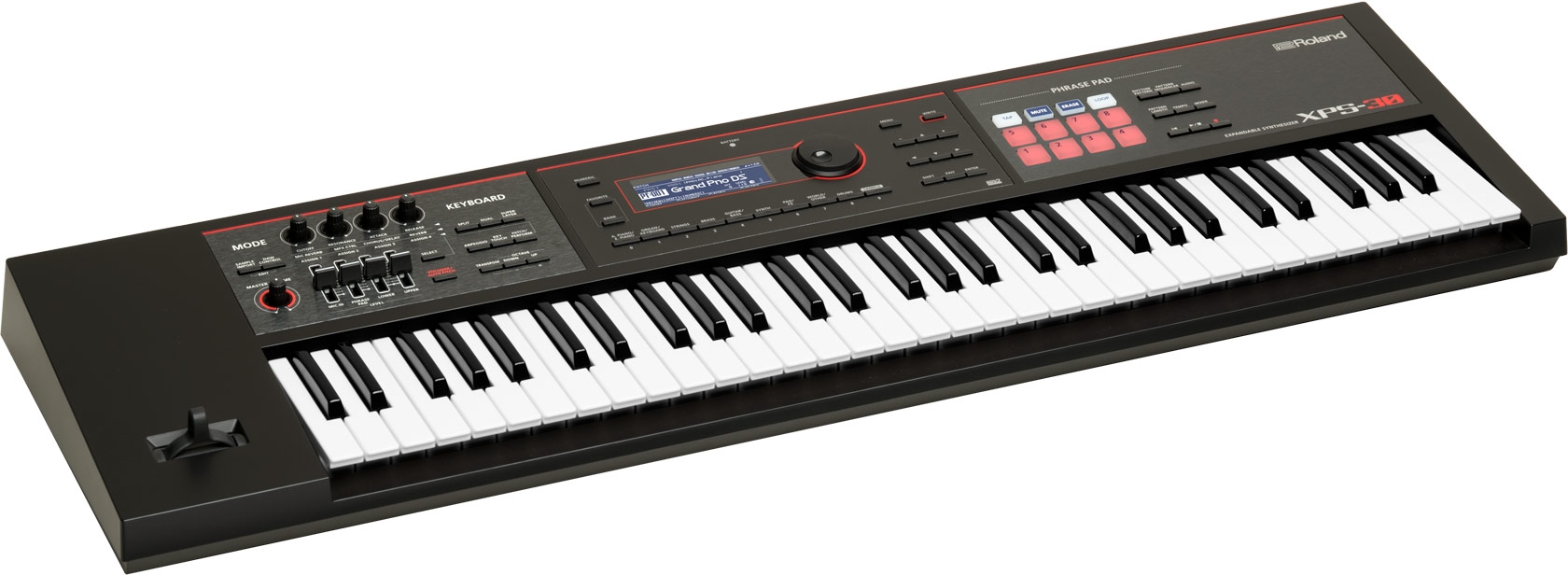

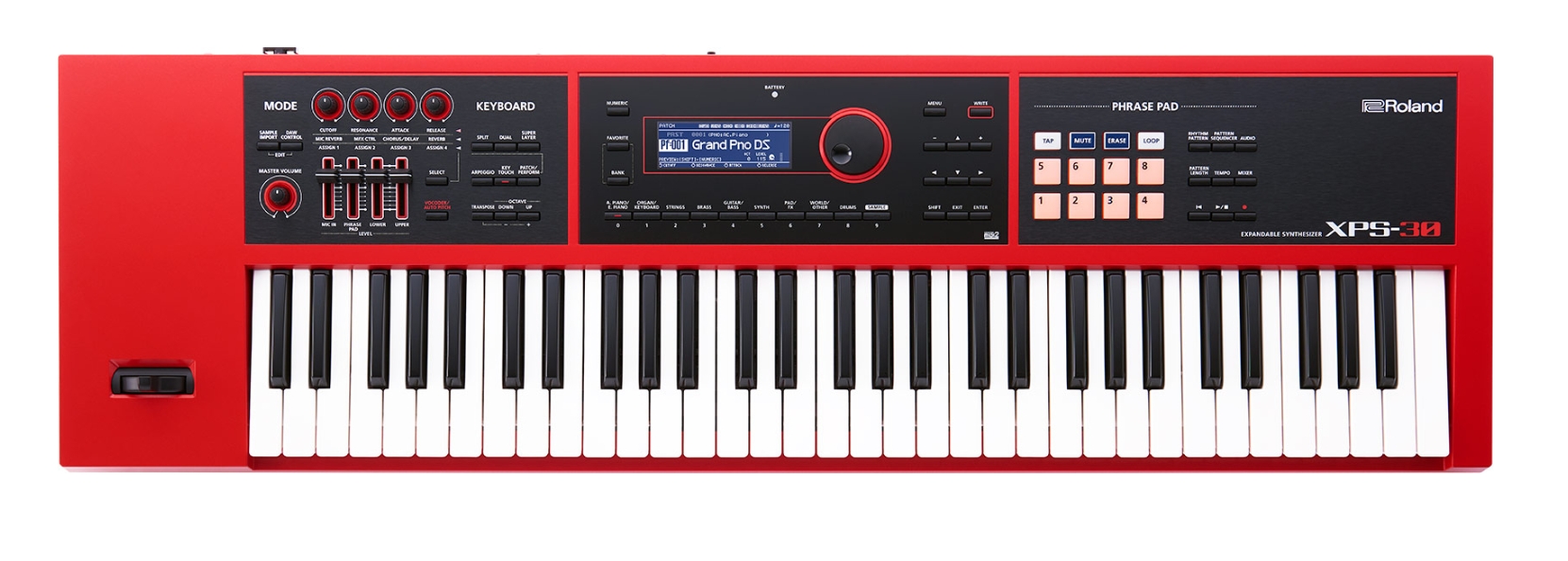

Roland XPS-30 Expandable Synthesizer

Power Performer
The XPS-30 starts with the great feature set of the popular XPS-10 and adds many powerful enhancements that performing players will love. Stage essentials like acoustic and electric piano sound even better, and the internal waveform set can be easily expanded with free sound collections from Roland’s Axial website. The selection of regional instrument sounds has been increased as well, and more user samples can be imported (including multi-sample import) thanks to the doubled onboard memory capacity. There’s also a built-in eight-track pattern sequencer for capturing songs and ideas, plus a convenient mic input with dedicated vocal effects.
Specs:

Keyboard
61 keys (with velocity)
Sound Generator
Maximum Polyphony
128 voices
Parts
16 parts
Preset Memory
- Patches: Over 1400 - Drum kits: Over 35 - Performances: 28 * GM2 compatible sounds are included.
User Memory
- Patches: 256 - Drum kits: 8 - Performances: 128 - Favorites: 100
Wave Expansion Slots
1 slot * The wave expansion slot is rewritable internal waveform memory. You can download data from the Axial sound library site and write it via a USB flash drive into the XPS-30's internal wave memory (slot).
Sample Import Function
File Format
Audio file: WAV (44.1 kHz, 16 bits) Supports multi-sample (System Program Ver. 2.00 or later, with JUNO-DS Tone Manager)
Effects
- Multi-effects: 3 systems, 80 types - Chorus: 3 types - Reverb: 5 types - Mic input reverb: 8 types
Audio File Player Section
File Format
Audio file: WAV, AIFF, MP3
Others
Rhythm Pattern
Preset: 30 groups x 8
Arpeggio
Preset: 128
Controllers
Pitch bend/Modulation lever Control knob x 4 Level slider x 4 Multicolor pad x 8
Display
Graphic LCD 256 x 80 dots
External Storage Device
USB flash drive (supports USB 2.0 Hi-Speed flash memory)

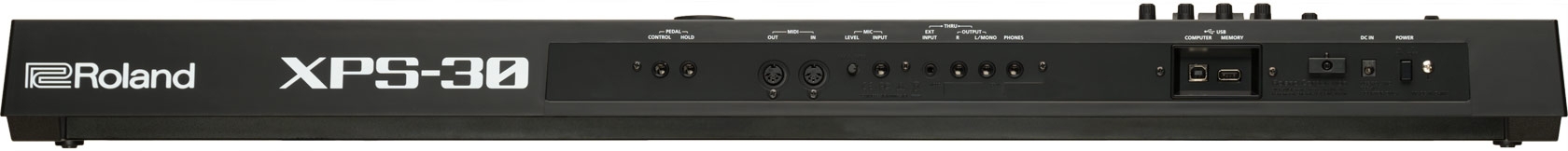

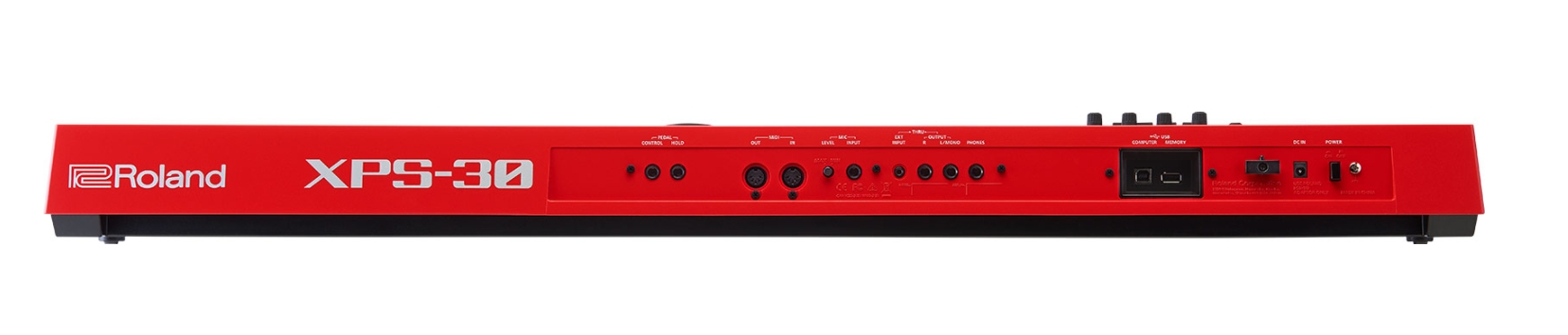

Connectors
PEDAL HOLD jack PEDAL CONTROL jack MIC INPUT jack: 1/4-inch phone type EXT INPUT jack: stereo miniature phone type OUTPUT jacks (L/MONO, R): 1/4-inch phone type PHONES jack: stereo 1/4-inch phone type MIDI connectors (IN, OUT) USB MEMORY port USB COMPUTER port (supports USB MIDI/AUDIO) DC IN jack

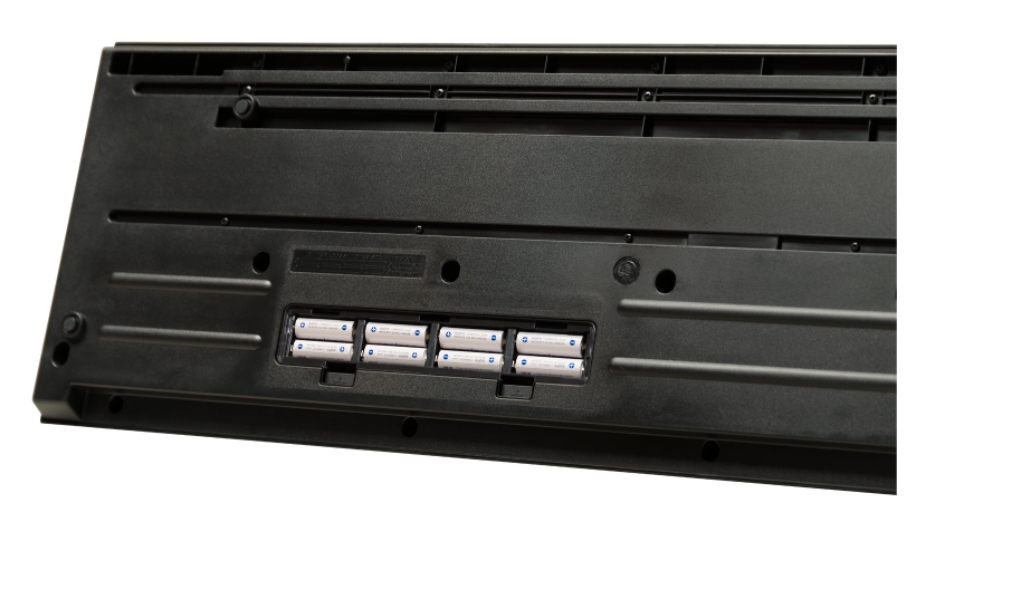

Power Supply
DC 9 V: AC adaptor or rechargeable Ni-MH battery (AA, HR6) (sold separately) x 8 * Battery life for continuous use (differs depending on the conditions of use) Rechargeable nickel metal hydride batteries: approximately 5 hours (when using batteries having a capacity of 1900 mAh) (approximately 4 hours if USB flash drive is connected) * Carbon-zinc or alkaline batteries cannot be used.
Current Draw
600 mA
Accessories
Owner's manual Leaflet “USING THE UNIT SAFELY” AC adaptor Power cord

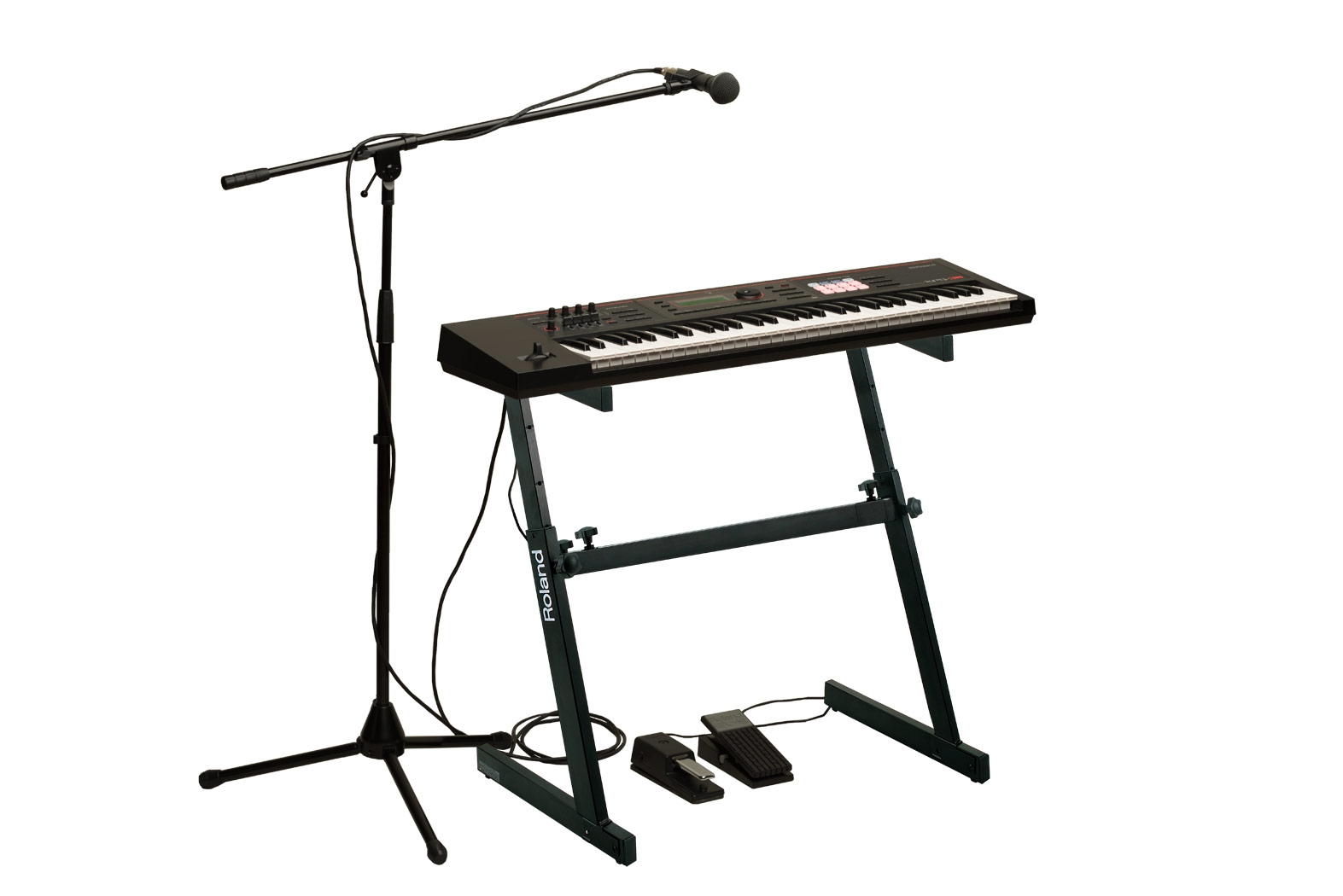

Options (sold separately)
Keyboard stand (*1): KS-18Z, KS-12 Pedal switch: DP series Expression pedal: EV-5 USB flash memory (*2) *1 When using the KS-18Z, ensure that the height of the unit is one meter or lower. *2 Use USB Flash Memory (supports USB 2.0 Hi-Speed Flash Memory) sold by Roland. We cannot guarantee operation if other products are used.
Size and Weight
Width
1,008 mm 39-11/16 inches
Depth
300 mm 11-13/16 inches
Height
97 mm 3-7/8 inches
Weight (excluding AC adaptor)
5.3 kg 11 lbs. 12 oz.
