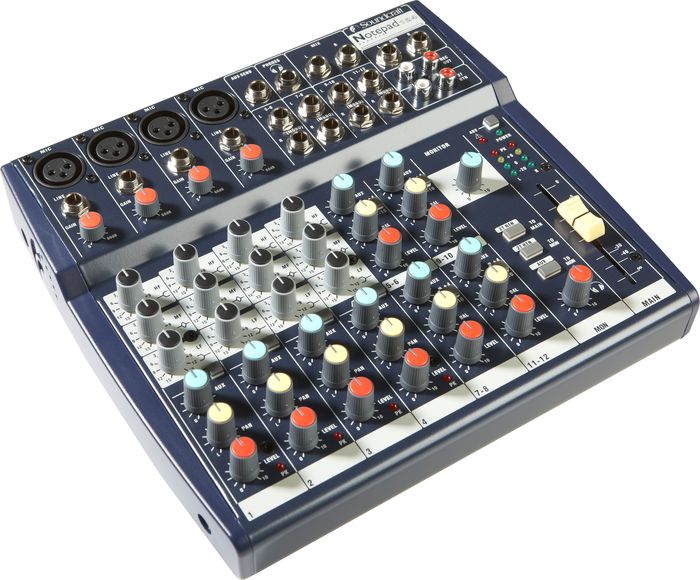

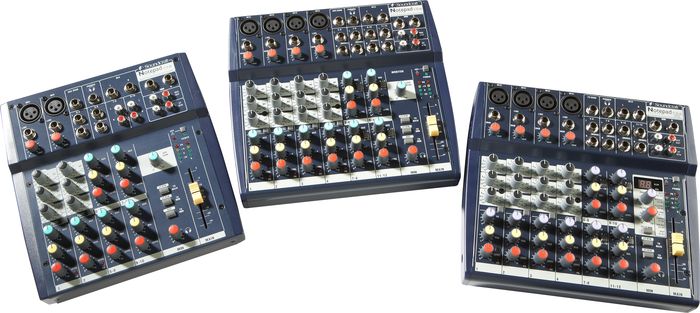

Soundcraft Notepad 124 Mixer

A compact mixer with 3-band British EQ suitable for a very wide range of applications

The Soundcraft Notepad 124 mixer boasts Soundcraft audio performance with the acclaimed GB30 mic preamp and EQ technology in a highly-compact and solid chassis. The 124 has 4 mono mic/line inputs. It also boasts 4 stereo line inputs, and suits a very wide range of applications where simple yet high-quality mixing is required, such as in home recording, small band/cabaret PA systems, AV presentation systems, small broadcast edit suites, educational environments and general contracting. The FX send is replaced by a standard AUX send with a dedicated output. It also provides a recording output of the mix on RCA/Phono connectors as well as a stereo input for CD playback etc. Other highly-desirable functions include a high-pass filter on the mono inputs, a 60mm fader for the mix output selectable sensitivity of +4dBu or -10dBV on each stereo input (Notepad 124 models only) and multi-segment led metering on the mix output along with a headphone monitoring output.


Features

Analog mixer
4 mic inputs with GB30 mic preamps:
4 stereo line channels for keyboards, MP3 player, etc.
Switchable +4dBu/-10dBV on stereo inputs
Classic-sounding Soundcraft GB30 3-band British EQ
100Hz high-pass filter on each mic input
+48V phantom power (global)
1 Aux/FX Sends
1 Return
L/R main Bus Outs



Order a full-featured compact mixer with Soundcraft quality!

Notepad 124 Mixer Specifications:


Frequency Response Mic / Line Input to any Output: +1/-1.5dB, 20Hz – 20kHz
T.H.D. Mic Sensitivity -30dBu, +10dBu @ Mix output: < 0.005% @ 1kHz


Noise


Mic Input E.I.N. (maximum gain): -128.5dBm (150&OMEGA; source)
Aux, Mix and Masters (@ 0dB, at unity) < -85dBu




Crosstalk (@ 1kHz)


Channel Faders: > 87dB
Master Faders: > 100dB


CMRR (@ 1kHz) Master Faders: > 90dB


EQ


High Pass Filter: 100Hz @ 12dB/Octave
HF: 12kHz, ±15dB,
MF: 1kHz, ±15dB
LF: 80Hz, ±15dB
Q: 0.7


Power Consumption: Less than 40W
Operating Conditions Temperature Range: 5°C to 40°C


Input & Output Levels


Mic Input: +10dBu max.
Line Input: +22dBu max.
Stereo Input: +20dBu max.
Mix Output: +25dBu max.
Headphones (@32&OMEGA;): 300mW




Input & Output Impedances


Mic Input: 2k&OMEGA;
Line Input: 18k&OMEGA;
Stereo Input: 20k&OMEGA;
Outputs: 150&OMEGA;


Dimensions (WxHxD):242mm (9-1/2") 45mm (1-13/16") 220mm (8-11/16")
Weight: 1.6 kg (3.5 lb.)
