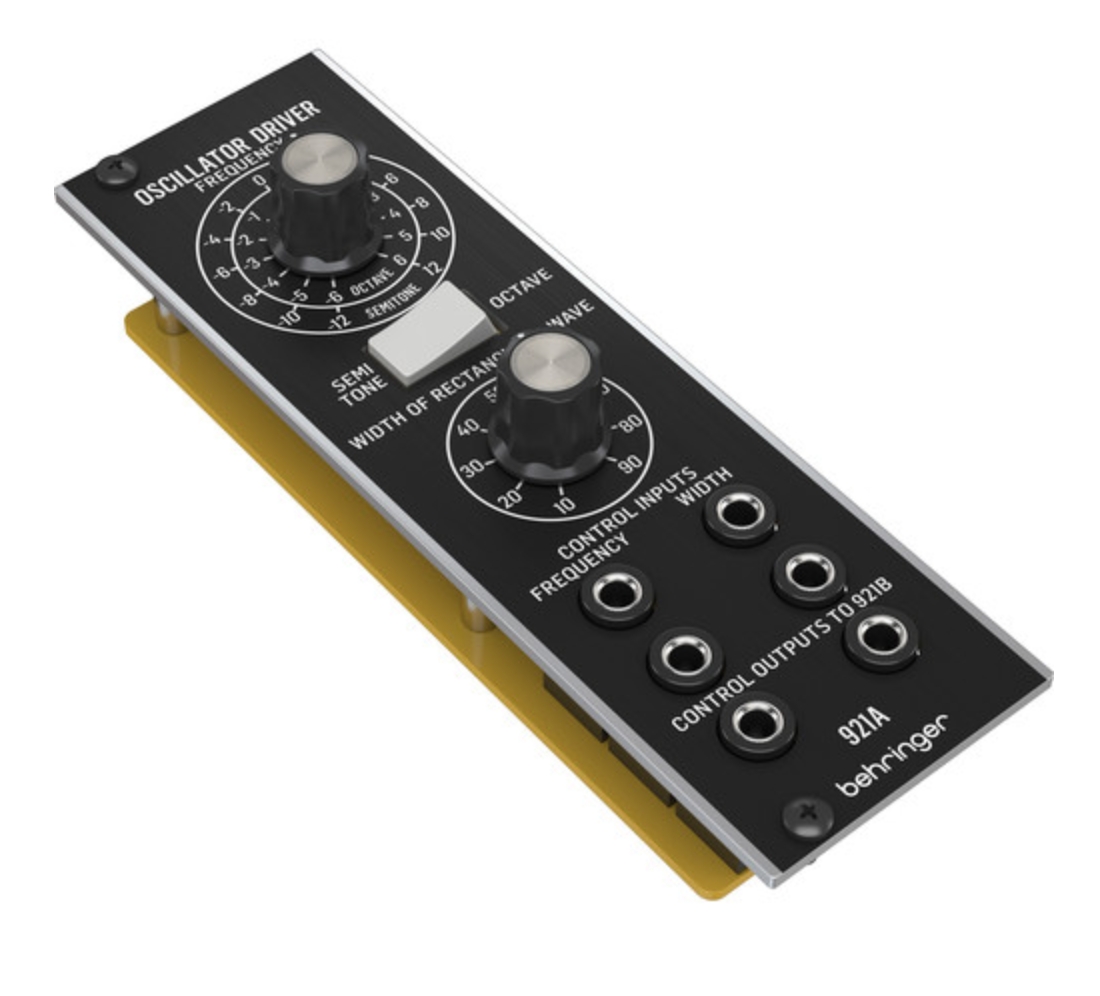

Behringer 921A Oscillator Driver Module for Eurorack

Behringer 921AOSCILLATORDRIVER Overview





The Behringer 921A Oscillator Driver is a Eurorack-compatible oscillator-control module based on the authentic circuit designs from the Moog Modular System 55 and 35. The discrete circuitry of the Moog Modular System has a very distinctive sound and was used by artists like Keith Emerson, Stevie Wonder, Tangerine Dream, and many other pop, rock, and jazz musicians.
The 921A Oscillator Driver features a frequency knob that can adjust between either octave or semitone frequencies and includes a rocker switch to select between the two types. The width of the pulse/square wave (PWM) is adjusted via a control knob that goes from 10 up to 90%. Additionally, there are two 3.5mm frequency inputs and two 3.5mm width inputs that allow you to patch in modulation or other control voltage signals. Two high-current outputs for frequency and pulse width are able to drive up to twelve 921B modules for vast flexibility and nuanced waveforms. A ribbon power cable and screws are included.









Controls up to 12 parallel 921B Oscillator modules
Authentic reproduction of the circuitry from the Modular 55 and 35 Series
Artist roster includes world’s most famous pop, rock, and jazz musicians
Two summed CV inputs for frequency control
Two summed CV inputs for PWM
High current outputs for frequency and pulse width to drive up to twelve 921B modules
Switchable semitone/octave selector and manual pulse width control
8 HP
Power: 15 mA +12 V, 15 mA -12 V
Includes power ribbon cable and mounting screws

THBS: www.music-blvd.com $78
