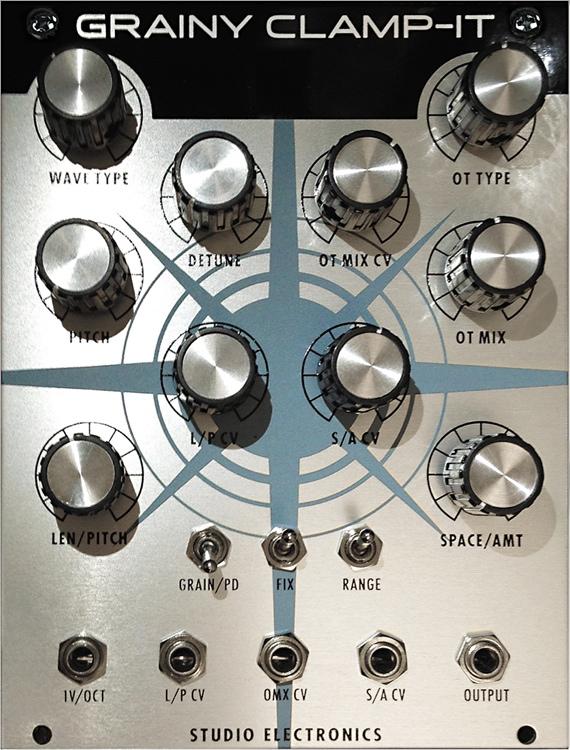

Studio Electronics Boomstar Grainy Clamp-It

Pure Voltage-controlled Ear Candy
If you're into insane, inorganic-sounding waveforms, the Studio Electronics Boomstar Grainy Clamp-It module belongs in your Eurorack. A great companion to Studio Electronics' Boomstar Oscillation module, the Grainy Clamp-It is also capable of '70s combo organ and CS-80-esque flavors if you tweak its straightforward controls just right. This multifaceted synth module provides you with additive mixing of several combinations of harmonics using your choice of 16 waveforms, followed by granular or phase-modulated processing, which give you phenomenal detuned and wave sequencing effects. You also get a sync option for further pitch variations. Sweetwater is home to a multitude of modular synth nuts, and they all love the Studio Electronics Boomstar Grainy Clamp-It module.
Two processing sections of awesome additive synthesis
The easiest way to understand the Grainy Clamp-It is to break it down into two sections. The additive section provides you with additive mixing of four harmonics using your choice of different waveforms and 16 combinations of harmonics. There's a separate control for mixing the selected harmonics. You also get a granular section, which gives you granular or phase-modulated mixing of your signal, with a sync option. This lets you use granular processing or phase distortion to further modify your waveform. Granular processing gives you control over grain length and grain position, for sync, detune, and wave sequencing effects. Phase distortion provides you with thick detuned sounds and wildly varying pitch/timbre effects. To put it plainly, the Grainy Clamp-It gives you additive mixing followed by granular and phase-modulated processing, so you can create all sorts of cool sounds!
Studio Electronics Boomstar Grainy Clamp-It Eurorack VCO Module Features at a Glance:

2 processing sections for multifaceted sound creation
Additive mixing of 16 combinations of harmonics using 16 different waveforms
Granular or phase-modulated processing provides detuned and wave sequencing effects
Sync option provides you with further pitch variations
Straightforward controls for easy sound tweaking

Add insane granular and phase-modulated additive sounds to your Eurorack with the Studio Electronics Boomstar Grainy Clamp-It!


Tech Specs



Sound Engine Type(s)
Additive oscillator synth module


Number of Presets
4 harmonics, 16 waveforms


Effects Types
Harmonics, phase distortion, detune


Analog Inputs
1 volt per octave control voltage input


Analog Outputs
1 x 1/4" (audio out)


Depth
1.37"


Power Supply
50mA draw, requires Eurorack case power supply
