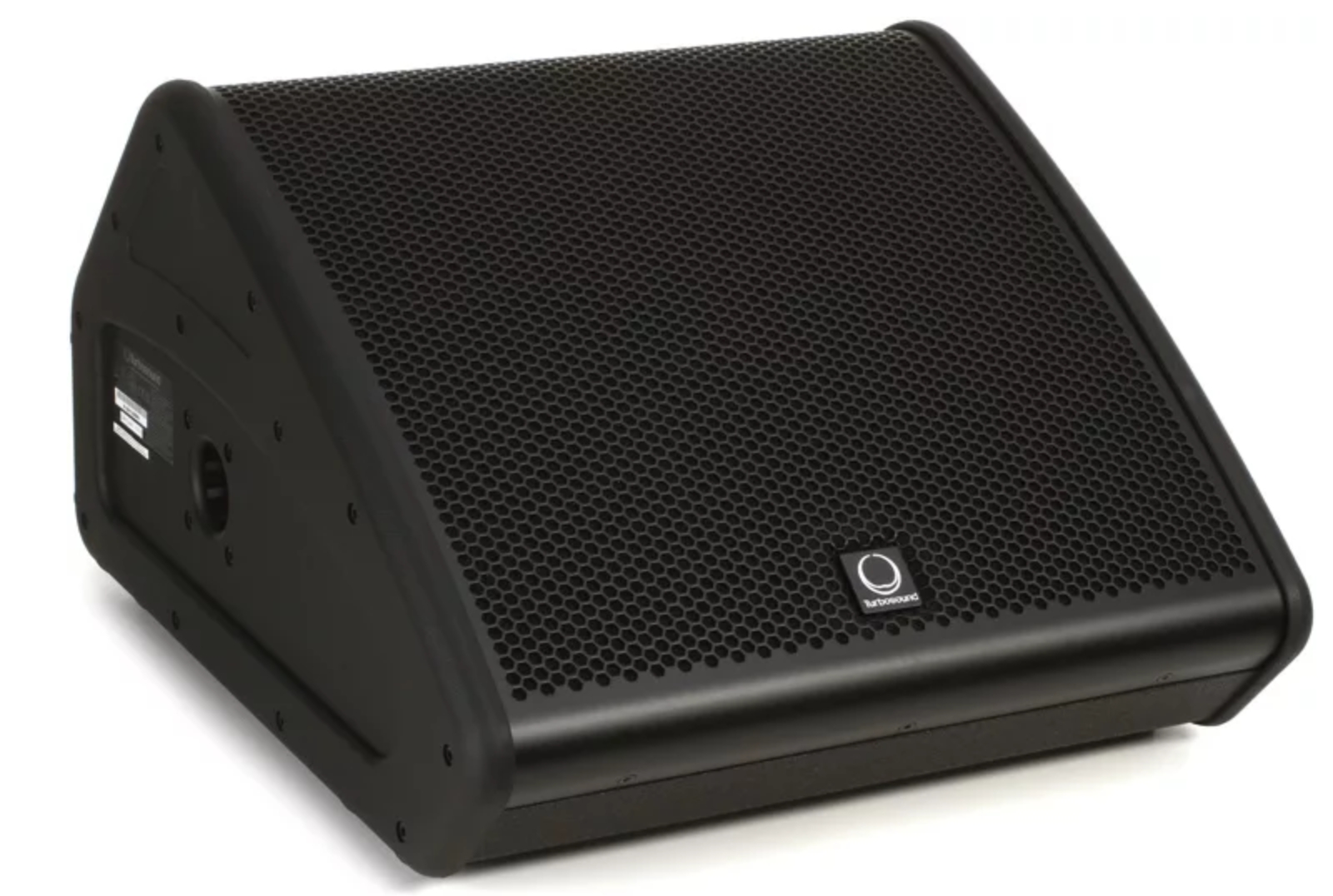

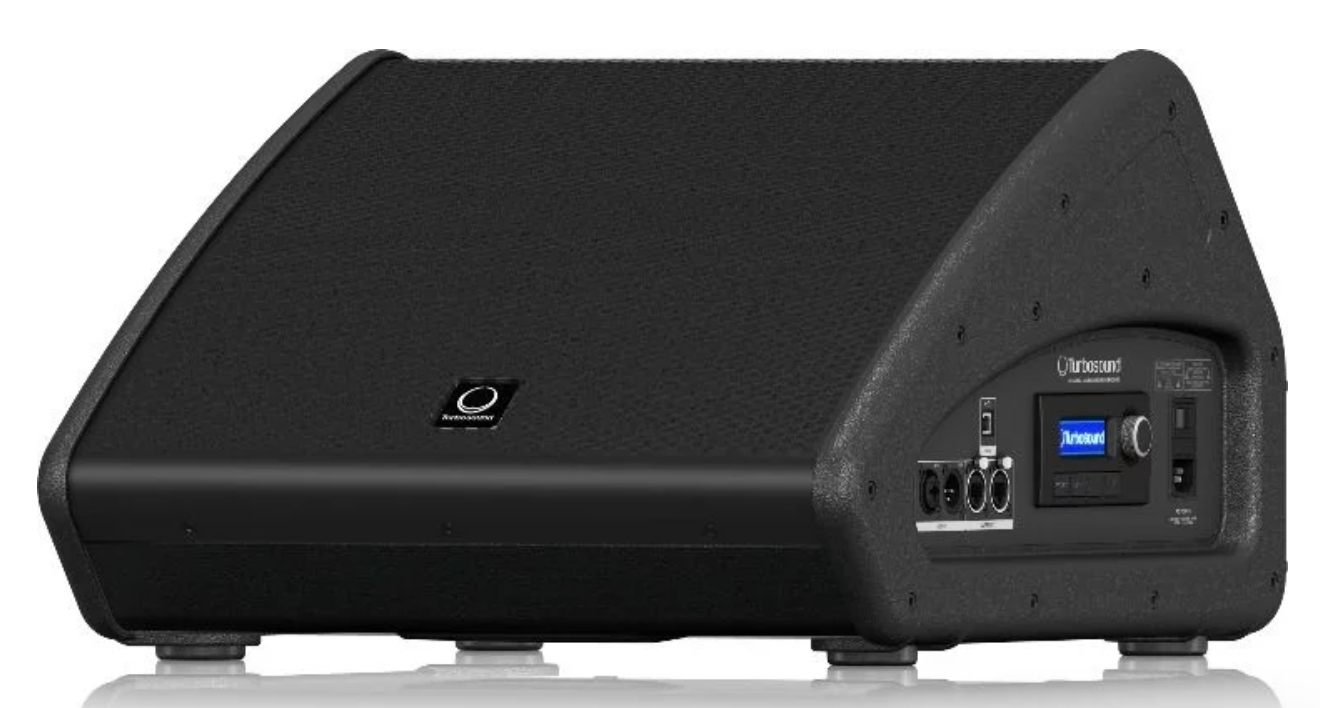

Turbosound TFX122M-AN 1100W 12 inch 2-way Flashline Series Stage Monitor

DSP and Ultranet in a Portable Stage Wedge
Few powered monitor wedges offer the kind of sophistication that makes the Turbosound TFX122M-AN such a valuable addition to your PA system. Loaded with a powerful Class D Klark Teknik amplifier, this monitor wedge delivers 1,100 watts of clear sound. What's more, custom coaxial drivers ensure that the sound is consistent, no matter where you're standing, and thanks to onboard Klark Teknik DSP, getting the perfect balance from your TFX122M-AN is easy. Top it off with Ultranet digital-audio connectivity, and you're ready to integrate your TFX122M-AN into your high-tech PA rig.


Coaxial speakers sound perfect anywhere onstage
Most monitor wedges come equipped with either a single full-range driver, which tends to miss a lot of high frequencies, or separate bass and treble drivers that make them sound different depending on which side is closer to you. Turbosound eliminates both of these problems with their custom 2-way coaxial speaker design. The TFX122M-AN's concentric speaker arrangement places a 1" high-frequency driver at the center of the 12" low-frequency driver, so all the sound projects from the same point. You'll be amazed by how clear these monitors sound.

Coaxial speakers deliver centralized sound for consistent monitoring
12" driver with low-mass coil provides strong lows and clear transients
Titanium-dome 1" compression driver reproduces smooth highs





Onboard Klark Teknik DSP delivers superb sound
Thanks to its built-in DSP from Klark Teknik, the Turbosound TFX122M-AN powered loudspeaker delivers superb sound, no matter where you are. You get easy-to-use dynamic EQ for impressive full-range response at low volume levels and transparent limiting for killer sound at high output levels. You also get DSP presets that have been optimized for a wide range of applications and speaker orientations.

Powerful onboard DSP lets you adjust critical settings
DSP covers input configuration, EQ, delay, and more

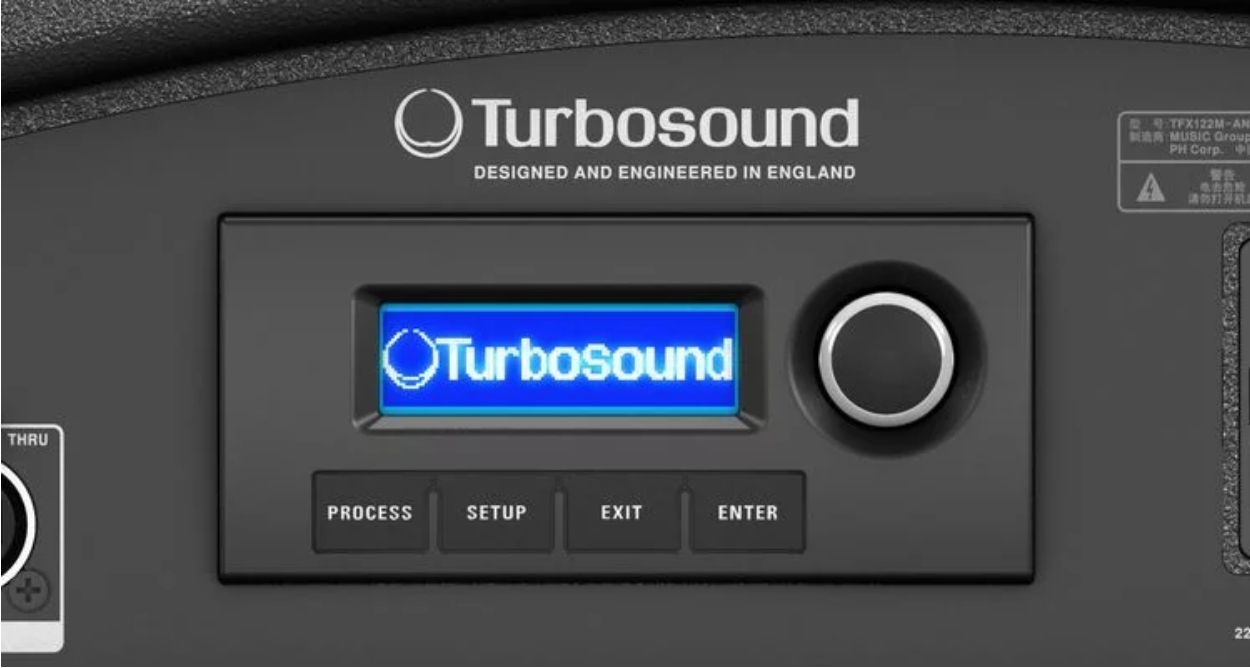

Program DSP via the LCD controls or USB/software


Ultranet technology makes digital audio easy
The TFX122M-AN features full compatibility with Behringer's Ultranet communications platform. Ultranet allows you to send digital audio between your compatible mixer and speakers (available


at Sweetwater) via standard Cat 5 Ethernet cables. It's perfect for long cable runs and delivers up to 16 channels of pristine digital audio on a single cable. What's more, each TFX122M-AN includes both an Ultranet input and an Ultranet output, allowing you to daisy-chain multiple speakers.

Receives digital audio from other Ultranet sources
Cat 5 Ethernet supports extremely long cable runs
Ultranet Thru port lets you daisy-chain speakers





Lightweight Class D amplifier for serious power
The Turbosound TFX122M-AN powered loudspeaker provides you with enormous power and incredible sonic performance in an easy-to-use, lightweight package. Klark Teknik's Class D amplifier technology makes all the difference, giving you phenomenal energy efficiency and eliminating the need for heavy power supplies and massive heat sinks.

High-power, lightweight Class D amp onboard
Produces 1100 watts of output with little heat
Capable of producing 125dB peak output SPL


Turbosound TFX122M-AN Powered Stage Monitor Features:

Sophisticated 2-way stage wedge that's perfect for mobile PA systems
Klark Teknik Class D power amp delivers 1100 watts of output
Coaxial 12" LF/1" HF drivers provide centralized sound for consistent projection
Klark Teknik DSP lets you easily dial in EQ, delay, and other critical system settings
Adjust settings via PC remote control software or LCD screen
Ultranet digital audio networking integrates with other mixers and speakers
Low-profile design looks good and provides 60-degree/40-degree dispersion
Fiberglass-reinforced 5/8" plywood provides added protection and stability

Tech Specs

Type: Powered Stage Monitor
Powered: Yes
LF Driver Size: 12" low mass voice coil driver
HF Driver Size: 1" Titanium dome compression driver
Total Power: 1100W Class D
Inputs: 1 x XLR-1/4" combo
Outputs: 1 x XLR
Maximum Peak SPL: 125 dB SPL @ 1m
Horizontal Coverage Angle: 60°
Vertical Coverage Angle: 40°
Enclosure Material: 15mm plywood with fibre glass composite ends
Power Source: Standard IEC AC cable
Height: 11.9"
Width: 17.8"
Depth: 19.9"
Weight: 37.2 lbs.
Manufacturer Part Number: 000-BMU02-00010
