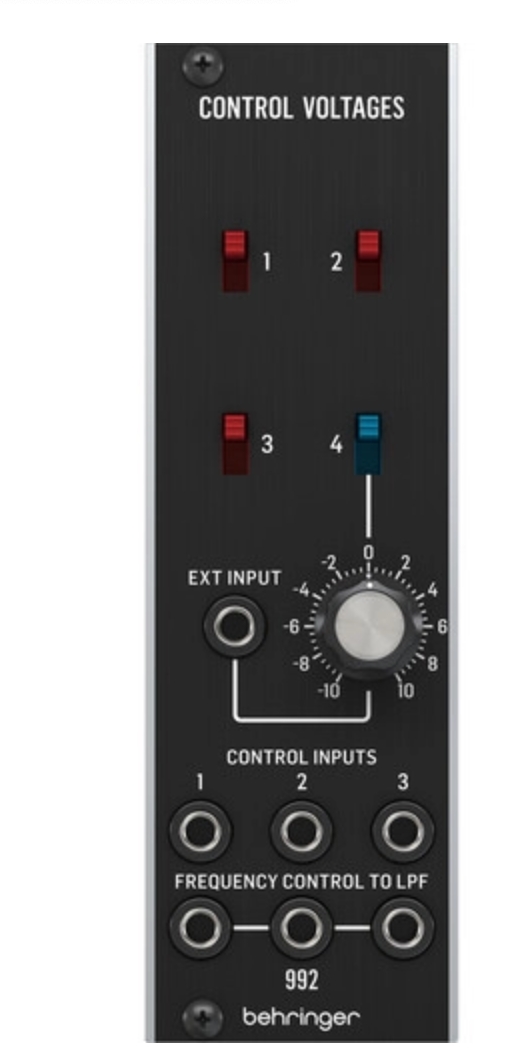

Behringer 992 Control Voltages Module for Eurorack

Behringer 992 Analog CV Routing Module Overview





The Behringer 992 Control Voltage Module is a Eurorack-compatible CV routing module based on the authentic circuit designs from the Moog Modular System 55 and 35. The discrete circuitry of the Moog Modular System has a very distinctive sound and was used by artists like Keith Emerson, Stevie Wonder, Tangerine Dream, and many other pop, rock, and jazz musicians.
The 922 Control Voltages module features four channels for CV signal routing to the 904A LPF or 904B HPF module. Freely connect/disconnect signals with a flip of a switch. The up position allows the signal to pass on the connected module. Additionally, there is an external input with an inverting attenuator knob that adjusts the incoming CV signal. The bottom of the module features three switch and summed CV inputs for the frequency control of VCF modules.
The 992 Control Voltages module allows you to send out the combined voltage from all 4 inputs via 3 parallel CV outputs, which can drive multiple 904A LPF and 904B HPF modules for an unlimited number of sonic combinations. A power ribbon cable and mounting screws are included.









Authentic reproduction of the circuitry from the Modular 55 and 35 Series
Artist roster includes world's most famous pop, rock, and jazz musicians
4-channel CV signal routing to 904A LPF module
Single external input with inverting attenuator control
3 switched and summed CV inputs for frequency control of VCF modules
3 parallel CV outputs can drive multiple 904A LPF and 904B HPF modules
8 HP
Power: 10 mA +12 V, 10 mA -12 V
Includes power ribbon cable and mounting screws

THBS: www.music-blvd.com $59
