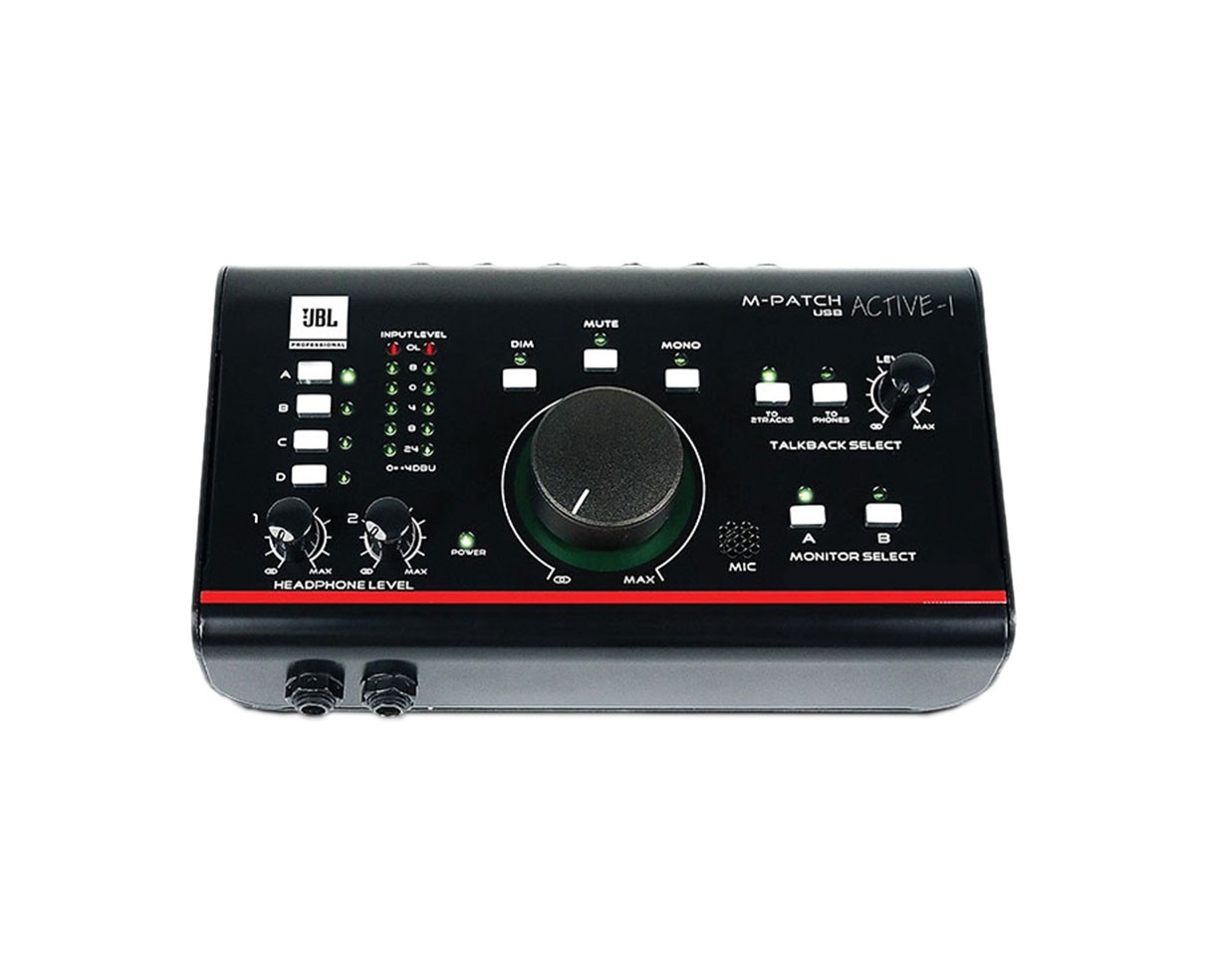

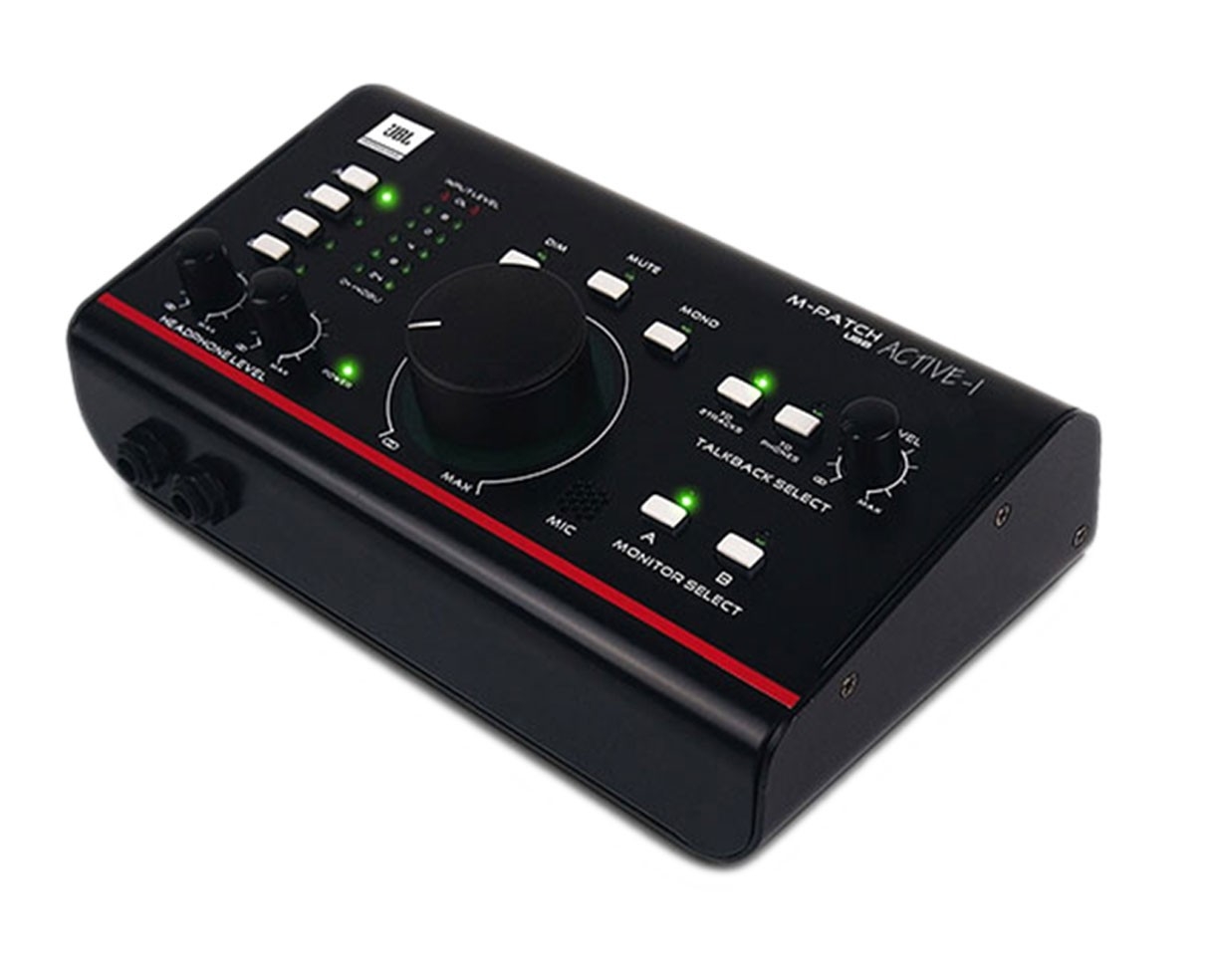

JBL M-Patch Active-1

Precision Monitor Control Plus Studio Talkback and USB Audio I/O
The M-PATCH ACTIVE-1 accommodates four input sources (3 x stereo analog and 1 x USB) and three stereo analog outputs plus USB. In addition to the core functionality of providing seamless A/B switching between input signals and output speaker monitor systems, the ACTIVE-1 delivers a full complement of audio monitoring functions, including precision volume control, mono summing, mute, and dim (ducking). A handy footswitch-activated talk-back function, complete with on-board condenser microphone and selectable routing, has also been integrated, making the ACTIVE-1 the ideal low-cost solution for a broad range of studio production applications.
Designed to provide the lowest-noise operation possible in an active monitor controller, the ACTIVE-1 is ideal for applications where both signal attenuation and boost is needed. In addition to the feature complement found on the PASSIVE-1, the ACTIVE-1 also includes LED level metering and convenient switch-selectable +4dBu/-10dBV input stage operation.
The ACTIVE-1 features on-board USB, allowing for direct digital audio recording and playback when used with a computer DAW. The USB output mirrors the signals appearing at the analog 2 Track outputs, while the computer’s L/R output feeds the USB in. Housed in a sturdy metal chassis and fitted with a durable array of switches and secure connectors, the ACTIVE-1 is built to provide years of worry-free operation.





Features


4 inputs, 4 outputs
USB Input and Output
2 headphone amps
Footswitch-Controlled Talkback
Built-in Talkback Mic
Mono summing
Dim switch
A/B Speaker Switching
Precision Rotary Attenuator
Level meters
Frequency Range : Line Level Inputs and Outputs +0.5 : -1dB 10hz to 30kHz
Noise : Monitor A B, Studio Outputs, 2-Track : -92dBu Typical

Outputs

Line Level (-10dB) : -10dBu/+8dBu (NOM/MAX)
Line Level (+4dB) : +4dBu/+22dBu (NOM/MAX)
Dynamic Range : Line Inputs to outputs : 114dB minimum
Crosstalk : Mute/Level OFF : 92dB @1kHz
Volume Control Range
Dim Switch : -20dB
Master Volume studio output gain : 34dB max

USB

Channels : 2
Drivers : Legacy type and ASIO
Compatibility : All current USB Audio systems







Shipping approx. 3.5 lbs
