Tascam TM-90BM

One way to improve the experience of viewers watching live streaming online is to ensure you're podcasting with a clear and high-quality audio. To improve your audio sound, the quality of your microphone is just as important as other audio gears you choose for sound improvement.
However, despite this, using standard condenser microphone may not be the best choice in circumstance where it requires multiple mics for guests in talk shows. In addition to this, these mics may be seen all the time in the entire video.

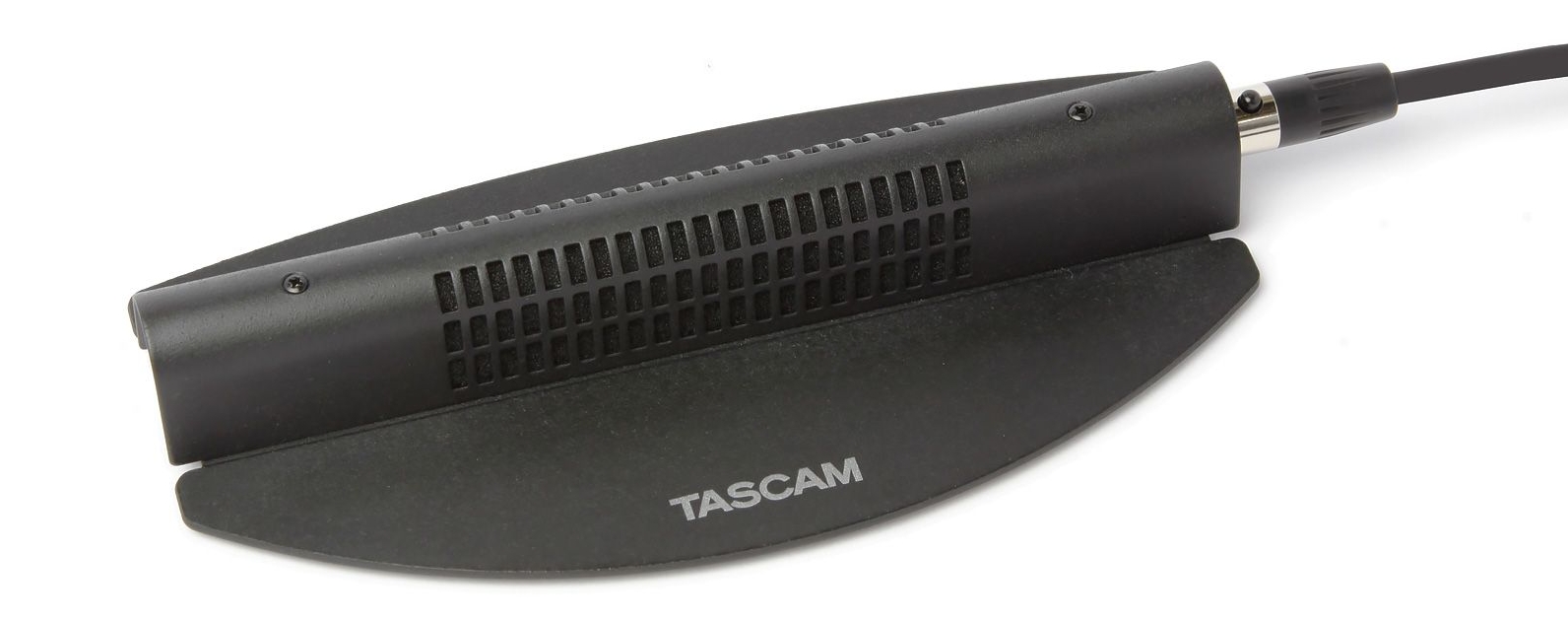

The TM-90BM is a boundary condenser microphone and is perfect for talk shows with a group of guests. It allows you to capture multiple voices simply by placing the microphone on a table, so you can record the conversation in high quality audio without the clutter of too many microphones. Of course, online streaming isn’t the only place this mic can come in handy. The TM-90BM can be used in many other ways as well, including audio recordings for meeting minutes.
Experience the difference in quality for your next talk show with this discrete yet powerful microphone.













Pocasting talk shows with guests
In online podcasting, talk shows often include invited guests. With the TM-90BM, all you have to do is place the mic on a center table, supply it with phantom power, and you're ready to go. Even in situations in which multiple guests are involved in a conversation, you can still record everyones’ voices clearly with only one unit of TM-90BM instead of preparing extra microphones for each guest.
If you set up a TM-95GN for another MC host, you'll have everything you need to facilitate and record a top quality talk show.






Recording conversation during a meeting
Transcribing meeting minutes demands clear audio to record content accurately. While supplying each participant in the meeting with their own microphone might be ideal, setting up an massive audio system would be difficult and costly. Using the TM-90BM means you can cut back on the number of microphones needed while still ensuring clear recordings. Its flat and compact design also prevents distraction by the presence of microphones for guests and will therefore be able to proceed the meeting efficienctly.








Boundary-type microphone picks up voices during a group talk with guests
Boundary microphone is a great option for capturing all voices in a room filled with guests such as television programs or recording meetings. Simply place the microphone on a desk and easily record multiple guests at once. The TM-90BM is a boundary-type condenser microphone that captures voices with clear sound quality.As TM-90BM is equipped with uni-directional type condenser mic, it should be positioned where the TASCAM logo is facing towards speaking voices. In addition, it should be connected to audio interfaces such as the MiNiSTUDIO and make sure phantom power supply is ready.





Flat design with height 24mm prevents from mic sticking out during the show
As the microphone body is only 24 mm high, it is unlikely to get caught on camera or obstruct the view of guests even when placed in front of guests. Even if the mic does get caught on camera, its sleek black design makes it discrete and unlikely to distract viewers.
Proven high sound pressure design for capturing loud sounds (Up to 140dB SPL)
The design of this unit allows it to record loud sound sources during talk shows or meetings without distorting. 140 dB SPL is a volume level same as an engine of airplane.
BASS TILT switch to eliminate unwanted low frequencies





When capturing voices in a room, the low frequencies are unnecessary in general. In addition, the low frequency noise may cause difficulties for viewers to hear recorded voices. The BASS TILT switch mounted on the bottom of the unit can eliminate the low frequencies directly by switching to CUT. Please select CUT at all time for conversations.
Included hard carry case and dedicated patch cable (2.9m)
The TM-90BM comes with a handy carry case that is convenient for mic packing or portable use. It also features a dedicated connector to meet the desire of flat and compact design. The microphone comes with dedicated cable in order to connect the mic to TASCAM audio interface or mixer that has XLR balanced connector with minimum noise.













Features at a glance

Back-electret condenser microphone
Half super cardioid (Unidirectional)
9-52V phantom power supply
BASS TILT switch to eliminate unwanted low frequencies
Includes hard carry case
Includes dedicated patch cable(XLR male output, 2.9m)



Spec description





Model
Back-electret condenser microphone


Directivity
Half Super Cardioid (Unidirectional)


Frequency response
50Hz - 18,000Hz


Output impedance
150Ω


Load impedance
>1kΩ


Sensitivity
-35dB +/-3dB (0dB=1V/Pa at 1kHz)


Max SPL
140dB (at 1kHz=1% THD)


S/N ratio
68dB


Connector
3 pin XLR, Male(dedicated patch cable)


Phantom power
9V to 52V


Dimensions
50.5 (W) × 187.5 (H) × 50.5 (D) mm


Weight
260g (device)


Accessories
Hard carry case, dedicated patch cable (converted)
