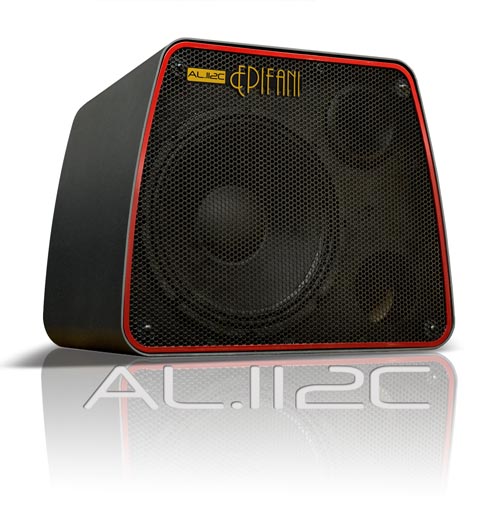

Epifani AL.112 COMBO

The Range The AL Series combos and extension cabinets feature the first ever solid-aluminum hybrid enclosure. Using Specially engineered wood baffles and high-performance ceramic drivers, the AL series are lighter than neo-based traditional cabinets. The aluminum enclosure provides super rigidity, which allows for enhanced output. This is the edge of sound. The Technology Epifani adds another 'first' to its long list of bass engineering accomplishments. The AL series is the first to utilize solid-aluminum for the main enclosure shell. At one time aluminum was more precious than gold - and its unique properties allow for a superior strength-to-weight ratio. This allows us to use the latest high-performance ceramic drivers and achieve a lower weight over similar neo-based wood cabinets. Aluminum's malleability also lets us craft a slightly bowed, trapezoidal structure for the combos that results in improved frequency response and power output without introducing unwanted tonal coloration. Extension cabinets use a bowed, rectangular shape for best coupling to the AL combos. With the Epifani AL Series, the future has been drawn. The Sound The legendary Epifani sound is based on getting your bass tone revealed to you and your audience intact. That means the broad clarity of the midrange, the full fundamental of the low end, and the singing highs of the upper register - all played with the fastest, most powerful dynamics anywhere. All of your notes are full, round and defined. That's because you hear the whole note, and nothing but the whole note. Simple as it sounds, it's what made our tone sought after by the worlds most inspired musicians.


CONFIGURATION Single Channel Preamp Class-D Power amp Switch-Mode Power Supply 1 x 12"-300 Watt Dual Voice Coil Epifani Ceramic Driver 100 Watt Bullet Tweeter Adjustable Tweeter Control SPEAKER IMPEDANCE Switchable 8 or 4 Ohms Using DIST Technology AMPLIFIER POWER RATING 385W RMS @ 8 Ohms 600W RMS @ 4 Ohms SPECS Amplifier Response 20Hz - 25kHz Cabinet Response 44Hz - 16kHz Sensitivity 98dB (1W@1m) HARDWARE Solid Aluminum Enclosure Powder Coat Finishes White w/Red Graphite w/Red Specially Engineered Wood Baffle CONNECTORS INPUT - 1/4" TS Phone Jack SEND - 220k Ohms------- |---Mix controlled RETURN - 50k Ohms------ TUNER OUT FOOTSWITCH - 1/4" TRS DI Low impedance XLR Direct Out

level Control
Pre and Post EQ selector Switch
Ground Lift

TONE CONTROLS Bass - Shelving + 22dB @ 40 Hz Mid - Shelving + 17dB @ 550 Hz Treble - Shelving + 22dB @ 3 kHz MID CUT - -8 dB @ 800 Hz VINTAGE TONE -Proprietary Circuit selectable switch engages tube emulated 'warmer' tone VOLTAGE Voltage selector 120/240V - 50/60Hz

DIMENSIONS 19.5"w x 16.5"h x 16.5"d Metric(mm) 495w X 419d X 419h Weight 39.8 lbs (18 Kg)
