Fostex 6301ND

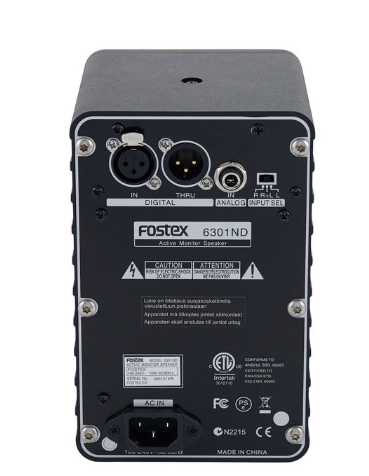

The 6301ND from Fostex is a compact monitor speaker for use in professional mobile, project, or home studios and features a 4" full-range driver powered by an integrated 20W D-class amplifier. Inputs include a 1/4" unbalanced connector and a digital AES/EBU XLR connector. Additionally, a digital AES/EBU XLR thru connector is provided for digitally chaining multiple 6301NDs, while an input selector is offered for selecting left, right and left+right on each speaker.

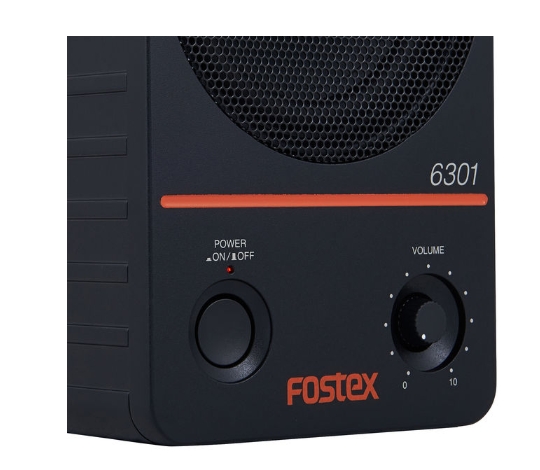

The front panel features a power switch and a rotary level control for easy volume adjustments. An automated protection circuitry prevents overloads and short circuits, while the die-cast aluminum enclosure is made to withstand the rigors of professional use. The 6301ND ships with a standard IEC power cord.





Compact aluminum design
4" full-range driver
20W Class-D amplifier for powerful performance
1/4" input connector
Front-panel rotary volume control
Selector switch for left, right, or left/right
Protection circuitry keeps the speaker operating smoothly
Magnetically shielded for safe use near video monitors
Multi-voltage power supply
Auto Standby Mode engages after 25 minutes, power consumption reduced to 0.5W
Optional bracket available separately for mounting





Spec



Type
Sealed powered speaker system


Speaker
Cone Type Driver: 4" / 102 mm


Amplifier
20 W Class-D


Frequency Range
70 Hz to 15 kHz


Output Sound Pressure Level
85 dB/W @ 1 m


Maximum Output
Maximum SPL: 98 dB


Rated Output
20 W


THD
0.05% (at 1 kHz 1 W output)


Input Terminal
Input: 1/4" TS, unbalancedInput: Digital XLR-3-31 type IEC60958 (AES/EBU), sampling frequency 44.1 to 96 kHz


Output Terminal
Output: Digital XLR-3-32 type


Input Impedance
Analog Input: 10 kOhms or More


Input Sensitivity
Analog (Unbalanced): -14 dBV (0.2 VRMS)Digital: -12 dBFS


Residual Noise
−65 dBV


Controls
1 x Power switch1 x Volume control1 x Left/right selector switch


Indicator LEDs
Unlit: Power offLit In Green: Device connected to [digital in] terminal and digital signal is lockedLit In Orange: Plug inserted in the analog input terminal (phone)Lit In Red: In standby


Enclosure Material
Aluminum die-casting


Shielded
Yes


Power Consumption
Power Consumption: 10 WAuto Standby: 0.5 W


Dimensions (HxWxD)
7.4 x 4.7 x 4.7" / 189.0 x 120.0 x 120.0 mm


Weight
4.9 lb / 2.2 kg






Packaging Info


Package Weight
6.25 lb


Box Dimensions (LxWxH)

9.8 x 9.4 x 7.2"
