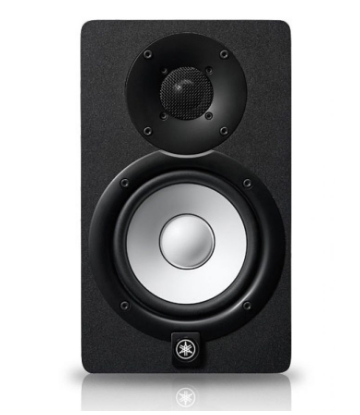

Yamaha HS5I Monitor Speaker with Integrated Mounting Points (Each)

Overview

2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
54Hz - 30kHz (-10dB), 74Hz - 24kHz (-3dB) frequency response
45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
ROOM CONTROL and HIGH TRIM response controls
XLR and TRS phone jack inputs accept balanced or unbalanced signals
Mounting points on 4 surfaces
Packaging single


Specs
General specifications




Speaker type
2-way bi-amp powered studio monitor


Frequency response (-10dB)
54Hz - 30kHz


Frequency response (-3dB)
74Hz - 24kHz


Components
LF
5" cone


HF
1" dome


Crossover
2kHz


Output power
70W (LF:45W, HF:25W)


Input sensitivity
-10 dBu/10k ohms


I/O connectors
XLR3-31 type (balanced), PHONE (balanced)


Indicators
Power ON (White LED)


Power consumption
45W


Shape
Bass-reflex type


Cabinet material
MDF


Flying and mounting hardware

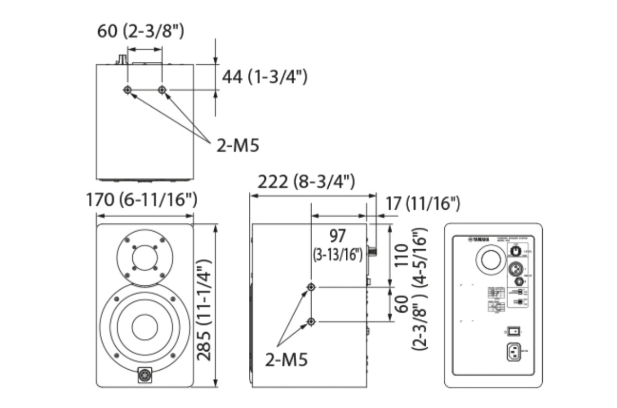

Four surfaces x 2 x M5 (60 mm pitch)


Dimensions
W
170mm (6-11/16")


H
285mm (11-1/4")


D
222mm (8-3/4")


Net weight
5.5 kg (12.1 lbs.)


Accessories
Owner's Manual, Power cord, Screws for installing brackets x 2


Options
Wall / ceiling bracket BWS20, Ceiling bracket BCS20


Packaging
Single


Others

LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
