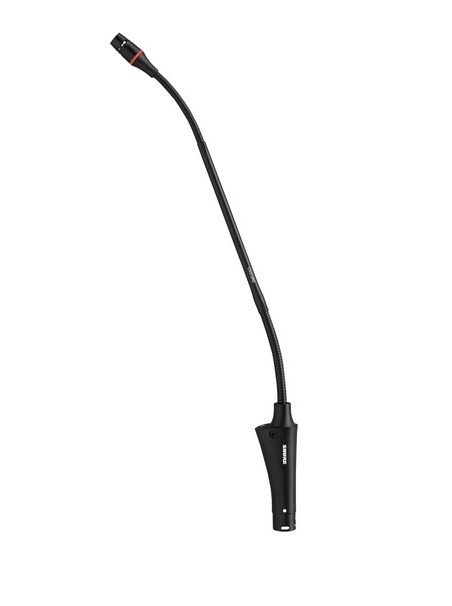

Shure CVG12-B/C Centraverse 12 Gooseneck Condenser Microphone

Shure CVG12-B/C


The black Shure CVG12-B/C Centraverse 12" Condenser Microphone features a fully articulating dual-section gooseneck design that facilitates ease of use and positioning. Suitable for use in installed sound reinforcement applications such as corporate facilities, houses of worship, government institutions, boardrooms, conference tables, conventions, and meeting rooms. This microphone features CommShield technology for shielding against RF interference from portable wireless devices. In addition, it comes with a windscreen and a mounting flange.


Note: Mute switch/LED and Mute switch/Light ring options are not sold in the Americas region.

Cardioid polar pattern cartridge with a tailored response for speech


CommShield technology guards against unwanted RF interference from portable wireless devices and provides high resistance to intense radio signals


Frequency response suitable for capturing fast transients in a wide variety of locations such as podiums and desktops


2-Section gooseneck design and rugged, dependable construction


Included flange mount and snap-fit windscreen






Cartridge Type
Electret condenser


Frequency Response
70 to 16,000 Hz


Polar Pattern
Cardioid


Output Impedance
180 Ω


Sensitivity
At 1 kHz, open circuit voltage: -33 dBV/Pa (22 mV)


Maximum SPL
1 kHz at 1% THD: 120 dB SPL


Signal to Noise Ratio
Referenced at 94 dB SPL @ 1 kHz: 67 dB


Dynamic Range
93 dB


Self Noise
Equivalent SPL, A-weighted (typical): 27 dB SPL


Common Mode Rejection
>45 dB (10 Hz to 100 kHz)


Clipping Level
Preamplifier Output 1 kHz @ 1% THD: -7 dBV


Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3


Power Requirement
11 to 52 VDC, 2.0 mA


Relative Humidity
0 to 95%


Operating Temperature Range
0 to 135°F (-18 to 57°C)


Storage Temperature Range
-20 to 165°F (-29 to 74°C)


Weight
6.3 oz (178.6 g)






Packaging Info


Package Weight
0.9 lb


Box Dimensions (LxWxH)
25.5 x 3.1 x 1.7"
