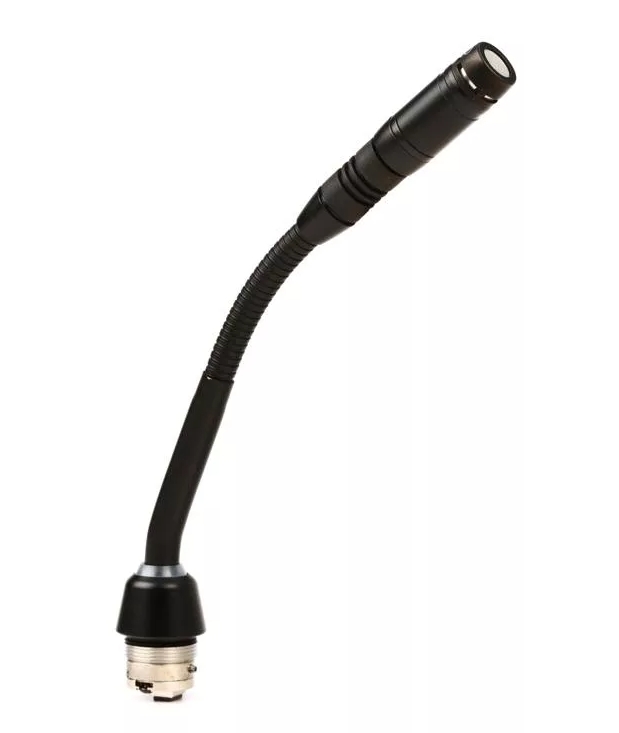

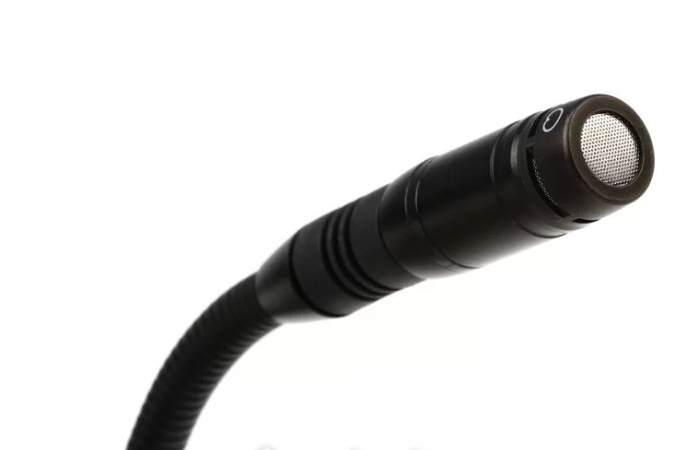

Shure MX405LP/C

FEATURES

Available in 5 inch (127 mm) and 10 inch (254 mm) lengths
Cardioid and supercardioid polar patterns
Bi-color status indicator or single color light ring
Programmable mute switch (desktop models only)
Logic input/output for remote LED and mute control
Surface-mount and wired or wireless desktop base options
CommShield® Technology for improved RF filtering

Mounting Options:

MX400DP: Desktop Base for MX405 and MX410 models
MX890: Wireless Desktop Base for MX405 and MX410 models
MX400SMP: Surface Mount Preamp for MX405 and MX410 models

SPECIFICATIONS


TypeCondenser (electret bias)
Frequency Response50 to 17000 Hz
Polar PatternMX405/C, MX410/C: CardioidMX405/S, MX410/S: Supercardioid
Output ImpedanceEIA Rated at 150 Ohms (170 Ohms actual)
Output ConfigurationActive balanced
Sensitivity (at 1 kHz , open circuit voltage)Cardioid: -35 dBV/Pa (18 mV)Supercardioid: -34 dBV/Pa (21 mV)1 Pascal=94 dB SPL
Maximum SPL (1 kHz at 1% THD, 1 kilohm load)Cardioid: 121 dBSupercardioid: 120 dB
Equivalent Output Noise (A-weighted)Cardioid: 28 dB SPLSupercardioid: 27 dB SPL
Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz)Cardioid: 66 dBSupercardioid: 68 dB
Dynamic Range (1 kilohm load at 1 kHz)3 dB
Common Mode Rejection (10 Hz to 100 kHz)45 dB minimum
Preamplifier Output Clipping Level (1% THD)
-8 dBV (0.4 V)Polarity3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector
Net WeightMX405: 0.054 kg (0.119 lbs)MX410: 0.068 kg (0.150 lbs)MX400DP: 0.516 kg (1.138 lbs)MX400SMP (w/ Kit): 0.125 kg (0.275 lbs)
Logic ConnectionsLED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50VLOGIC OUT: Active low (≤1.0V), sinks up to 20mA, TTL compatibleAbsolute maximum voltage: -0.7V to 50V (up to 50V through 3 kilohms)
Mute Switch Attenuation-50 dB minimum
CableMX400DP: 6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control
Environmental ConditionsOperating Temperature: -18 to 57 deg. C (0 to 135 deg. F)Storage Temperature: -29 to 74 deg. C (-20 to 165 deg. F)Relative Humidity: 0 to 95%
Power Requirements48 to 52 Vdc phantom, 8.0 mA
