Shure MX415R/N

SHURE MX415R/N Gooseneck Microphone with Surface Mount Preamp, No Cartridge

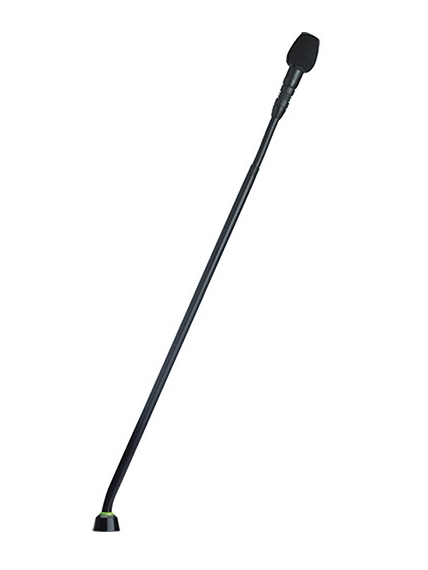

The Shure MX415R/N Miniature Gooseneck Microphone is suitable for boardrooms and other sites where aesthetics are important. It can either be permanently mounted or with a moveable desktop base, which includes a configurable mute button with logic output. It is also compatible with the MX890 wireless desktop base.
Features


Low profile, aesthetic design
Wide dynamic range and smooth frequency response
RF filtering with CommShield technology
Surface mount preamp
Single color light ring

Specifications



Transducer Type
Condenser


Polar Pattern
NONE: Cartridge NOT Included with this Model, Must Use One of the Following: Supercardioid, Cardioid


Frequency Response
50 Hz - 17 kHz


Output Impedance
EIA Rated at 150 Ohms (170 Ohms actual)


Output Configuration
Active balanced


Sensitivity (1 kHz)
Cardioid -35 dBV/Pa; Supercardioid -34 dBV/Pa / Cardioid 18 mV/Pa; Supercardioid 21 mV/Pa


Equivalent Output Noise (A-weighted)
Cardioid: 28 dB(A)Supercardioid: 27 dB(A)


Maximum SPL
Cardioid: 121 dBSupercardioid: 120 dB


Signal-to-Noise Ratio
(referenced at 94 dB SPL at 1 kHz) Cardioid: 66 dB Supercardioid: 68 dB


Dynamic Range (1 kilohm load at 1 kHz)
3 dB


Common Mode Rejection (10 Hz to 100 kHz)
45 dB minimum


Preamplifier Output Clipping Level
-8 dBV (0.4 V) (1% THD)


Polarity
3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector 5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector


Logic Connections
LED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V LOGIC OUT: Active low (=1.0V), syncs up to 20mA, TTL compatible Absolute maximum voltage: -0.7V to 50V (up to 50V through 3 kilohms)


Mute Switch Attenuation
-50 dB minimum


Operating Temperature
-18 to 57 deg. C (0 to 135 deg. F)


Storage Temperature
-29 to 74 deg. C (-20 to 165 deg. F)


Relative Humidity
0 to 95%


Power Requirements
48 to 52 Vdc phantom, 8.0 mA


Weight

0.154 lbs (0.07kg)
