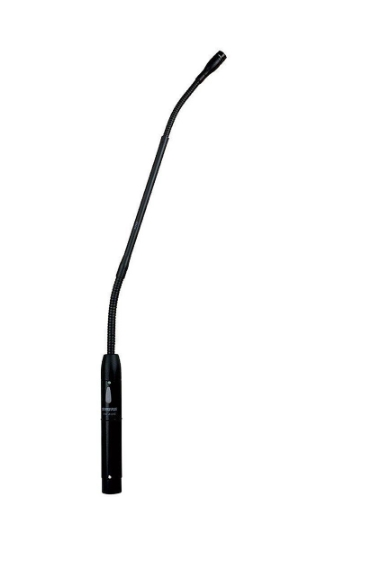

Shure MX418S/S

Shure MX418/S Specifications


Transducer
Condenser
Polar Pattern
Supercardioid
Frequency Response
50 to 17,000 Hz
Output Impedance
180 ohms actual (EIA rated at 150 ohms)
Sensitivity (At 1,000 Hz)
(open circuit voltage) -33.5 dBV/Pa (21.1 mV)
Maximum SPL
122.7 dB (1 kHz at 1% THD, 1 kilohm load)
Equivalent Output Noise (A-weighted)
26.5 dB SPL
Signal to Noise Ratio
67.5 dB (referenced at 94 dB SPL)
Dynamic Range at 1 kilohm load 96.2 dB
100 dB at 0 gain
Common Mode Rejection
45.0 dB minimum
Preamplifier Output Clipping Level
(1% THD)-6.0 dBV (0.5 V)-12 dBV at 0 gain
Polarity
Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector
Power Requirements
11 to 52 Vdc phantom, 2.0 mA
Operating Temperature Range
-18 to 57 degrees C (0 to 135 degrees F)
Relative Humidity
0 to 95%
Dimensions
Microphone: 22.5 x .79" (571.44 x 20.07mm) (L x Diameter)Mounting Flange: 2.62" (66.54mm) in Diameter
Weight
1.82 lbs. (0.82 kg)
