Shure MX415/C

OVERVIEW

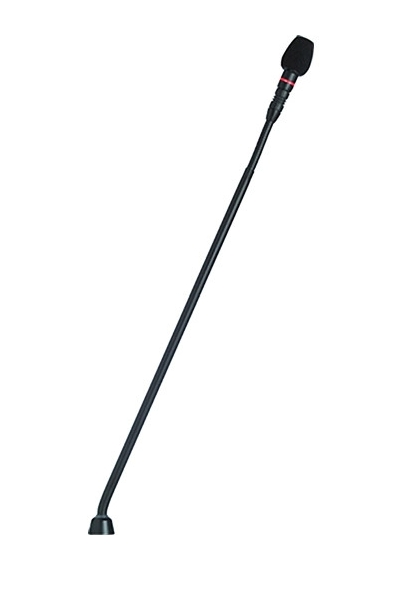

The Shure MX415/C Microflex Modular Cardioid 15" Gooseneck Microphone with Preamp is suitable for use in boardrooms, conference rooms, and classrooms. This mic can be mounted on desktops, conference tables, or lecterns by using optional surface or desktop mounts, and is fully compatible with the SLX Wireless Systems when used with the MX890 Wireless Desktop Base (sold separately).



15" (38.1 cm) long gooseneck design


Cardioid polar pattern cartridge


Bi-color status indicator


Comes with a preamp


Programmable mute switch (desktop models only)


Snap-fit foam windscreen to reduce interference from wind noise


Logic input/output for remote LED and mute control


Surface-mount and wired or wireless desktop base options


CommShield Technology for improved RF filtering


CE certified, EMC Directive 2004/108/EC conformant, and meets applicable tests and performance criteria in European Standard EN55103 (1996) parts 1 and 2, for residential (E1) and light industrial (E2) environments.






Type
Condenser (electret bias)


Frequency Response
50 to 17000 Hz


Polar Pattern
Cardioid polar pattern (at 1 kHz)


Output Impedance
EIA Rated at 150 (170 actual)


Configuration
Output: Active balanced


Sensitivity
-35 dBV/Pa (18 mV) / at 1 kHz, open circuit voltage


Maximum SPL
121 dB (1 kHz at 1% THD, 1 kW load)


Output Noise
28 dB SPL (A-weighted)


Signal-to-Noise Ratio
66 dB (referenced at 94 dB SPL at 1 kHz)


Dynamic Range
93 dB (1 k load at 1 kHz)


Common Mode Rejection
45 dB minimum (10 Hz to 100 kHz)


Clipping Level
Preamplifier Output (1% THD): -8 dBV (0.4 V)


Polarity
3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector


Attenuation
Mute Switch: -50 dB minimum


Connections
LED IN: Active low (≤1.0 V); TTL compatible; Absolute maximum voltage: -0.7 V to 50 VLOGIC OUT: Active low (≤1.0 V), sinks up to 20 mA; TTL compatible; Absolute maximum voltage: -0.7 V to 50 V (up to 50 V through 3 kΩ)


Power Requirements
48 to 52 VDC phantom, 8.0 mA


Operating Temperature
0 to 135°F (-18 to 57°C)


Storage Temperature
-20 to 165°F (-29 to 74°C)


Relative Humidity
0 to 95%


Weight
0.154 lb (0.069 kg)


Dimensions (L x W)
14.8 x 0.7 (37.6 x 1.9 cm)






Packaging Info


Package Weight
1.5 lb


Box Dimensions (LxWxH)

24.8 x 5.5 x 2.9"
