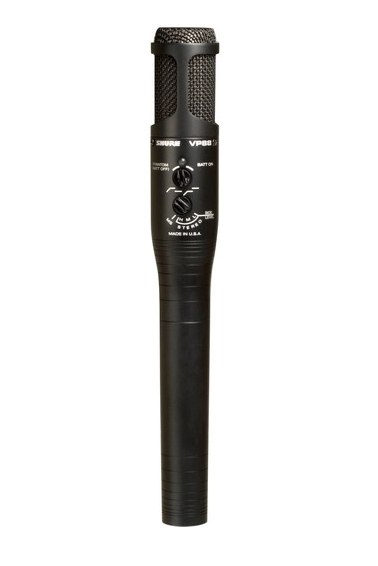

Shure VP88

The Shure VP88 is a professional single-point reference, stereo condenser microphone. Ideal for location, broadcast and live performance recordings, the VP88 features a unique selectable stereo-imaging matrix output and filter adjustments that provide recording and broadcast engineers with the flexibility necessary to faithfully capture the realism of live events. It runs on phantom power or 6V battery.




Time-coherent, Mid-Side (M-S) design for optimal stereo imaging


Built-in stereo matrix for direct control of the stereo spread; direct M-S outputs available


Mono compatibility ideal for broadcast applications


Switch-selectable, low-frequency rolloff (12 dB/octave below 80 Hz) for reduced pickup of ambient noise and stand vibration


Operates on phantom power or a 6V camera battery


LED power indicator


Internal shockmount for reduced stand vibration and handling noise


Built-in "pop" screen





Spec



Transducer
Single-point stereo (M-S configuration) condenser


Polar Pattern
Cardioid, bidirectional


Frequency Response
40 Hz-20 kHz


Dynamic Range (Typical)
105 dB


Signal-to-Noise Ratio
70 dB


Maximum Input Sound Level
800 W Load: 129dB150 W Load: 119 dB


Power Requirements
Phantom Power, (9-52v DC)


Output Impedance
150 ohms (100 ohms Actual)


Output Connectors
Included 'Y' cable with 5-pin female XLR connector on microphone end, 2x 3-pin male XLR connectors on equipment ends


Pad
None


Low Frequency Roll-Off
Yes, (12 dB/Octave Below 80 Hz)


Applications
Field Recording, ENG, Stereo Studio Miking, Broadcast


Dimensions
11.44 x 1.56" (290 x 39.7mm) LxDiameter


Weight
14.7 oz. (417 g)






Packaging Info


Package Weight
2.6 lb


Box Dimensions (LxWxH)
17.2 x 5.3 x 4.0"
