Neumann TLM 107 Condenser Microphone

Not an imitation of the past, but a modern studio microphone for the future.

For decades Neumann has been setting standards in the world of studio microphones, and the TLM 107 follows closely to a tradition of innovation. With five directional characteristics and a novel-operating concept, this standard-setting large-diaphragm microphone provides sound without any coloration. Featuring equally impressive level stability and low self-noise, it captures everything from the softest whisper to thundering drums. Use the TLM 107 for everything from broadcasting, to studio and demanding home recording applications. The TLM 107 doesn't try to imitate a vintage sound or dated relic, in fact it's just the opposite, a modern studio mic with detailed, high-precision sound reproduction that is very close to the original source. Neumann Engineering The newly developed sound transducer, which was designed especially for this microphone, is impressive with its outstanding impulse fidelity. The great consistency of the five polar patterns, omnidirectional, cardioid and figure-8, with the intermediate patterns wide-angle cardioid and hypercardioid, is also unusual for a large-diaphragm capsule. The TLM 107 provides optimal sound not only for the cardioid setting; it also ensures maximum precision over the entire frequency range for all of the other directional characteristics. The sound always remains balanced, with an almost linear reproduction up to 8 kHz, and a slight boost in the highest frequencies that lends presence and freshness to the voice. Here particular attention has been paid to the natural reproduction of speech sounds, especially the critical “s” sound. The grille is acoustically optimized for low sensitivity to pop sounds. In addition, the sound transducer is edge-terminated, with both diaphragms at ground voltage. Specifically, this ensures considerably reduced sensitivity to dust and humidity. No-Compromise Sound Design Transformerless circuitry permits a high degree of linearity and a large dynamic range. The self-noise of only 10 dB-A is practically inaudible, while at the same time, the TLM 107 features high level handling. The maximum sound pressure level of 141 dB SPL can be increased to 153 dB SPL via pre-attenuation (Pad). This enables the TLM 107 to transmit the sound of even the loudest instruments without distortion. The Low Cut settings of Linear, 40 Hz, and 100 Hz are precisely adapted to practical recording situations. Without side effects, the 40 Hz setting cuts interference noise below the range of fundamental tones (where 41 Hz is the frequency of the double bass open E string), while the 100 Hz setting is optimized for speech and vocals (where 100 Hz corresponds to the lowest notes of a baritone). Innovative Operating Concept For the first time, all of the microphone switch functions are controlled intuitively via a navigation switch. A visual highlight is the illuminated pattern display in the chrome ring, while the Pad and Low Cut status is displayed by LEDs to the left and right of the switch. In order not to distract singers, the switch and display are located on the back of the microphone. After ten seconds, the displays are turned off automatically.



Features

Multipattern large diaphragm microphone with 5 polar patterns (omni, wide cardioid, cardioid, hypercardioid, figure-eight)

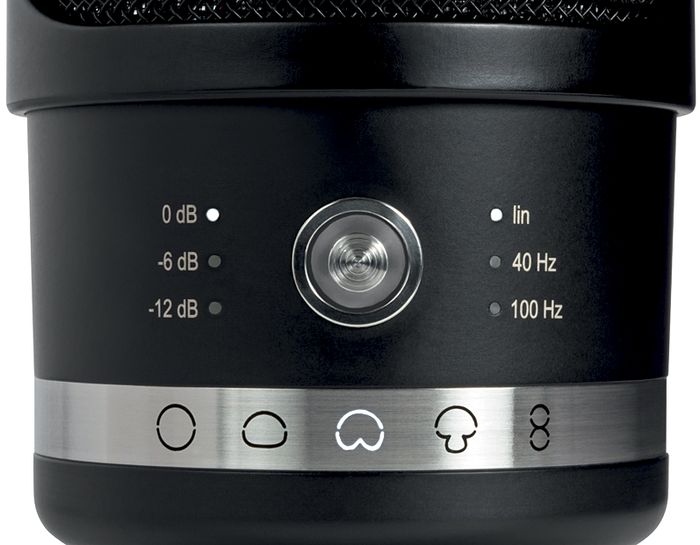

Navigation switch with LED illuminated display for polar pattern, PAD and low cut
Sound characteristics: transparent, natural reproduction of human voice, outstanding transient response



Add this versatile tool to your mic locker today.



TLM 107 Condenser Microphone Specifications:


Acoustical operating principle Pressure gradient transducer
Directional pattern Omni, wide angle cardioid, cardioid, hypercardioid, figure-8
Frequency range 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohms 11 mV/Pa
Rated impedance 50 ohms
Rated load impedance 1000 ohms
Equivalent noise level, CCIR1) 22 dB
Equivalent noise level, A-weighted1) 10 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL) 72 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL) 84 dB
Maximum SPL for THD < 0.5%2) 141 dB
Maximum SPL for THD < 0.5%2) with pre-attenuation -6 dB 147 dB
Maximum SPL for THD < 0.5%2) with pre-attenuation -12 dB 153 dB
Maximum output voltage 10 dBu
Supply voltage (P48, IEC 61938) 48 V ± 4 V
Current consumption (P48, IEC 61938) 3.2 mA
Matching connectors XLR3F
Weight 445 g
Diameter 64 mm
Length 145 mm
