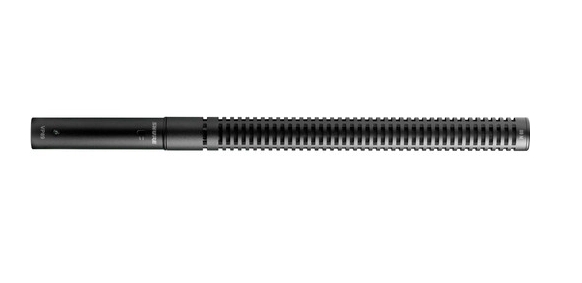

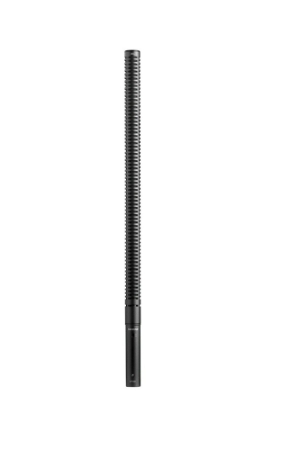

Shure VP89M

The Shure VP89M Modular Shotgun Microphone features an interchangeable capsule that displays high RF (Radio Frequency) rejection, superior side noise rejection, and is paired with the detachable VP89 Preamp. Long, short and medium sized capsule barrels are available to suite various recording needs, rejection angles and frequency response types.

This model ships with the medium capsule, and includes a windscreen and zippered pouch. The state-of-the-art low noise preamplifier design features a low frequency roll-off switch for eliminating noise below 200Hz. The usefulness of the microphone can be further extended by buying one of the other length capsule and simply attaching it to the already included preamp.


State-of-the-art preamplifier redesign


Superior RF immunity


Internal low-frequency roll-off


Recessed low-cut filter switch for additional control


Smaller footprint


Superior Shure design and rugged, roadworthy construction


Medium Capsule Design

Features a narrow pickup angle and wide target aperture for greater degree of ambience (audience response, talk shows, live concerts)


Unmatched quality of off-axis rejection





Transducer
Electret Condenser


Polar Pattern
Hypercardioid / Lobar


Frequency Response
100Hz to 20kHz


Dynamic Range (Typical)
Dynamic Range (@ 1 kHz)2500 Ohms load: 117.0dB1000 Ohms load: 113.5dB


Signal-to-Noise Ratio
79.0dB


Maximum Input Sound Level
2500 Ohms load: 132.0dB SPL1000 Ohms load: 128.5dB SPL


Input Clipping Level
Clipping Level (@ 1 kHz, 1% THD)2500 Ohms load: 4.0 dBV1000 Ohms load: 0.0 dBV


Power Requirements
11-52V DC phantom power (IEC-61938),


Output Impedance
115.0 Ohms


Sensitivity
-33.5 dBV/Pa (2.11 mV)


Noise
Self Noise (equivalent SPL, A-weighted, typical):15.0dB


Output Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3


Low Frequency Roll-Off
200Hz


Temperature
Operating: -18°C (0°F) to 57°C (135°F)Storage: -29°C (-20°F) to 74°C (165°F)


Power Requirements
11-52VDC phantom power (IEC-61938), < 2.0 mA


Weight
VP89L: 174g (6.1 oz.)VP89M: 138g (4.9 oz.)VP89S: 117g (4.1 oz.)






Packaging Info


Package Weight
1.85 lb


Box Dimensions (LxWxH)
16.0 x 3.6 x 3.4"
