Shure VP82

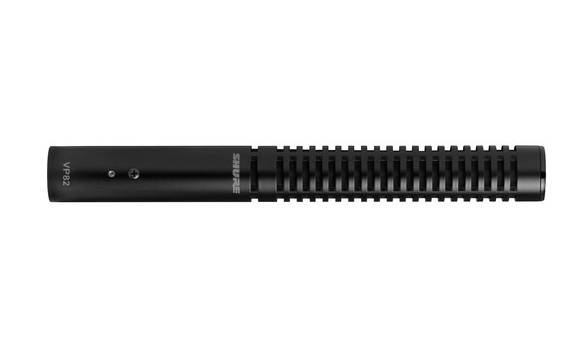

SHURE VP82 End-Address Shotgun Condenser Microphone
The VP82 is a professional shotgun microphone for use in A / V sound reinforcement.

Compact and lightweight with a wide aperture and excellent off-axis rejection, the VP82 is the affordable and reliable choice for camera-mounted broadcast and media production applications.

Integrated preamplifier design (not modular)


Wide aperture for near-field sound sources


Provides natural off-axis rejection


Zipper pouch and foam windscreen (included)


Compatible with VP89S premium accessories


Rugged, roadworthy construction

Specs.
11-52 V DC phantom power (IEC-61938),



Transducer
Electret Condenser


Polar Pattern
Supercardioid / lobar


Frequency Response
150 to 20,000 Hz


Dynamic Range (Typical)
@ 1kHz 500 Ω load: 122.5dB1000 Ω load: 116.5dB


Clipping Level
@ 1 kHz, 1% THD 2500 Ω load: 7.0 dBV1000 Ω load: 0.0 dBV


Signal-to-Noise Ratio
Self Noise (equivalent SPL, A-weighted, typical) 15.0 dB SPL-A


CMR
20 to 20,000 Hz ≥ 55 dB


Operating Temperature
Operating: 0 - 135°F (-18 to 57°C)


Relative Humidity
0 to 95%


Power Requirements


Output Impedance
144 Ω


Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3


Housing
Satin-black vinyl painted aluminum alloy with stainless steel screen


Weight
2.9 oz (76g)
