Tascam TM-Drums, 4-Microphone Kit

Tascam TMDRUMS Overview

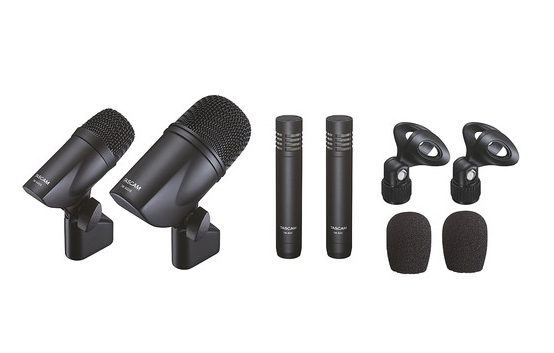

The TM-Drums, 4-Microphone Kit from Tascam includes one TM-50DB dynamic kick-drum mic with integrated stand mount, one TM-50DS dynamic snare mic with integrated stand mount, two TM-50C overhead condenser mics with mic clips and windscreens, and a hard carry case. It is a specific toolset for harnessing the power of drums and percussion in today's modern music, and can be used to capture audio and provide the recording- or live-sound engineer with everything needed to obtain a truly inspiring soundscape.
Tascam TMDRUMS Specs

Kick Drum Microphone



Model
TM-50DB


Type
Dynamic


Polar Pattern
Cardioid (unidirectional)


Frequency Response
50 to 15 kHz


Output Impedance
400 Ohms +/-30% (at 1 kHz)


Load Impedance



Sensitivity
-55 dB +/-3 dB (0 dB= 1 V/Pa at 1 kHz)


Connector
3-pin XLR, male


Dimensions (W x H x D)
2.3 x 4.7 x 4.5" (59 x 118 x 115 mm)


Weight
16 oz (460 g) microphone body only





Snare Microphone



Model
TM-50DS


Type
Dynamic


Polar Pattern
Cardioid (unidirectional)


Frequency Response
50 Hz to 14 kHz


Output Impedance
350 Ohms +/-30% (at 1 kHz)


Load Impedance



Sensitivity
-56 dB +/-3 dB (0 dB= 1 V/Pa at 1 kHz)


Connector
3-pin XLR, male


Dimensions (W x H x D)
1.7 x 4.1 x 3.9" (42.5 x 105.0 x 98.0 mm)


Weight
12 oz (330 g) microphone body only





Overhead Microphones



Model
TM-50C


Type
Condenser


Polar Pattern
Cardioid (unidirectional)


Frequency Response
30 Hz to 18 kHz


Output Impedance
100 Ohms +/-30% (at 1 kHz)


Load Impedance



Sensitivity
-38 dB +/-3 dB (0 dB= 1 V/Pa at 1 kHz)


Maximum SPL
130 dB


Signal to Noise Ratio
74 dB


Connector
3-pin XLR male


Dimensions (W x H x D)
0.8 x 4.6 x 0.8" (21 x 117 x 21 mm)


Weight
3.0 oz (85 g) microphone body only





Packaging Info



Package Weight
2.95 lb


Box Dimensions (LxWxH)
11.2 x 6.6 x 4.1"
