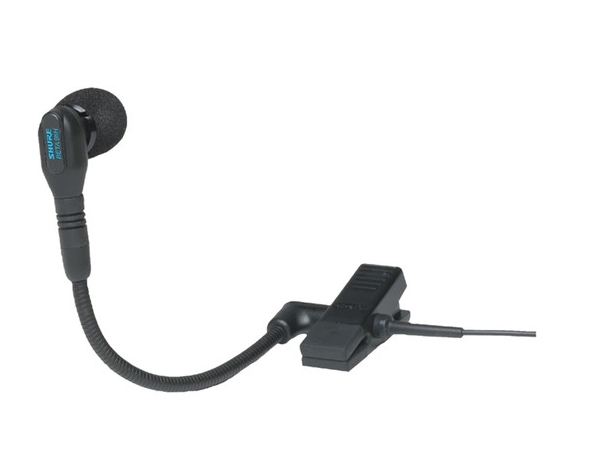

Shure WB98H/C BETA 98 Clip-On Condenser Instrument Microphone with TA4F (Mini 4-Pin) Connector

Shure WB98H/C Specs

Microphone



Form Factor
Instrument-Mount


Instrument Mic Type
Percussion/Drum, Saxophone, Trombone, Trumpet


Sound Field
Mono


Capsule
Electret Condenser


Polar Pattern
Cardioid


Pad
None


Windscreen
Foam (Included)





Performance



Frequency Range
20 Hz to 20 kHz


Maximum SPL
155 dB SPL (1 kHz, 1% THD, 1-Kilohm Load)


Impedance
150 Ohms


Sensitivity
-56 dBV/Pa at 1 kHz (Open Circuit Voltage)


Output Level
3 dBV (Max)


Dynamic Range
124 dB (1 kHz, 1-Kilohm Load)132 dB (1 kHz, 1-Kilohm Load)


Signal-to-Noise Ratio
63 dB A-Weighted (1 kHz, at 1 Pa/94 dB SPL)


Equivalent Noise Level
31 dB SPL A-Weighted





Connectivity



Output Connectors
1 x TA4/Mini XLR 4-Pin Female


Cable Length
5.3' / 1.62 m





Power



Operating Voltage
11 to 52 V





Physical



Color
Black


Mounting
Instrument Clamp





Packaging Info



Package Weight
0.72 lb


Box Dimensions (LxWxH)
10.15 x 5 x 3.3"
