Mackie MDB-1P 1-Channel Passive Direct Box

Mackie MDB-1P Passive Direct Box
Di Box หรือ Direct Box แบบ Passive Mackie MDB-1P, Converts Unbalanced to Balanced, Converts High Impedance to Low Impedance, 1/4″ Unbalanced Input, XLR Balanced Output, Switchable Pad Prevents Overloading, Ground-Lift Switch Minimizes Hum, No Power Source RequiredThe Mackie MDB-1P is a passive direct box designed to connect a single instrument such as a guitar, bass, or keyboard to a microphone preamp for musicians and audio engineers in recording sessions, houses of worship, and live stage applications.It converts a high-impedance, instrument-level signal via its 1/4″ TS unbalanced input to a low-impedance, mic-level output via its balanced XLR 3-pin jack. A 1/4″ thru jack allows simultaneous connection to an amplifier or pedalboard.A -15 dB pad reduces the input level to prevent distortion when using a high-gain source, and the ground-lift switch inhibits hum caused by ground loops. Due to its passive design, the MDB-1P requires no batteries or power supply. A sturdy steel chassis enables confident use in the studio or on the road.



Features:

Connect an instrument such as a guitar, bass, or keyboard to a microphone preamp
Converts a high-impedance, unbalanced 1/4″ input to a low-impedance, balanced XLR mic-level output

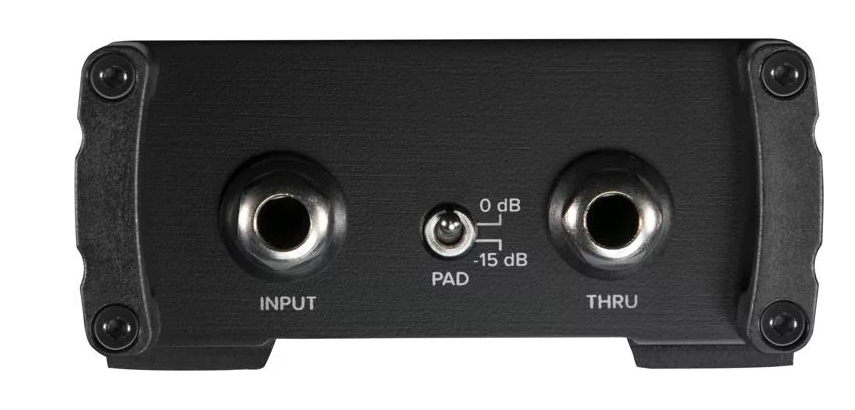

1/4″ thru jack for routing to an amplifier
-15 dB pad prevents overloading when accepting signal from a loud source
Ground-lift switch minimizes hum
Passive design requires no batteries or power supply
