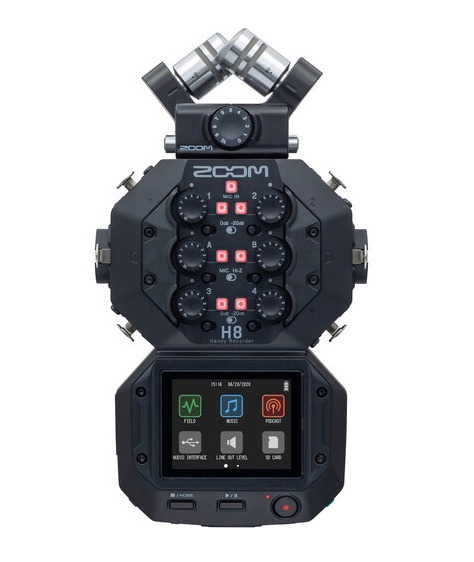

Zoom H8 8-Input / 12-Track Portable Handy Recorder

Key Features

Podcast/Music/Field Recording Modes
Swappable X/Y Stereo Mic Capsule
4 x XLR Mic Inputs with Pads and +48V
2 x XLR-1/4" Mic/Line/Hi-Z Inputs

With three app-driven modes that instantly configure the color touchscreen for podcasting, music production, or location recording, the Zoom H8 portable handheld recorder lets you quickly record up to eight simultaneous input signals via a workflow that's highly optimized for your task. Plus, it's compatible with an array of capsules (available separately) for easy


Portable Recorder



Number of Tracks
WAV:12 (8 Inputs + Stereo Mix)


Max Sample Rate/Resolution
96 kHz / 24-Bit


Microphone
Interchangeable Cardioid Condenser Stereo Pair, X/Y Configuration


Built-In Speaker
Yes, 400 mW Mono


Display
2.4" / 6.1 cm Color LCD Touchscreen


Memory Card Support
SD (Up to 2 GB)SDHC (4 GB to 32 GB)SDXC (64 GB to 512 GB)


Internal Storage
None





Recording



Audio File Formats
BWF, MP3, WAV


Sample Rates
WAV:44.1 / 48 / 96 kHz


Bit Depth
16 / 24-Bit


Bit Rates
128 kb/s192 kb/s320 kb/s


Signal Processing
Compressor, Limiter, Low-Cut Filter


Timecode
No





Connectivity



Analog I/O
4 x XLR 3-Pin Female Balanced Mic Input (Lockable)2 x Combo XLR-1/4" TRS Female Balanced Instrument/Line/Mic Input (Lockable)1 x 1/8" / 3.5 mm TRS Female Unbalanced Line/Mic Input1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output


Digital I/O
None


Phantom Power
+12 / 24 / 48 V (Selectable on Individual Inputs)


Host Connection
1 x Micro-USB





Power



Power Options
Batteries, USB Bus Power, AC/DC Power Adapter


Battery Type
4 x AA (Included)


Approximate Battery Life
20 Hours


AC/DC Power Adapter
5 VDC at 1 A (Not Included)





Physical



Mounting Options
1/4"-20 Female (Bottom)


Dimensions
4.6 x 1.9 x 6.4" / 116.4 x 48.6 x 163.3 mm (Recorder)3.1 x 1.8 x 2.4" / 78.9 x 45.2 x 60.2 mm (X/Y Mic)


Weight
12.5 oz / 354 g (Recorder)4.6 oz / 130 g (X/Y Mic)



www.music-blvd.com $400
