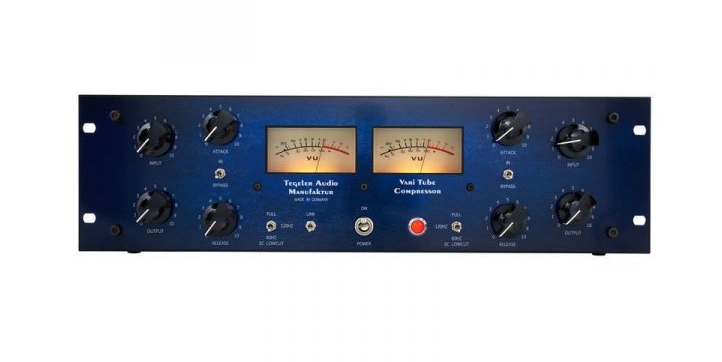

TEGELER AUDIO VTC VARI TUBE COMPRESSOR

PRODUCT DESCRIPTION

The Tegeler Audio VTC Vari Tube Compressor is built after the Vari-Mu principle, like it was used in the Fairchild 670 compressor, has a particularly distinct sound which sounds very musical and already adds the finishing touch to a lot of mixes.
Many hours of fitting, hearing and testing were spent on the VTC. The VTC starts the compression very gently and only intervenes more strongly at higher compression. A high-pass filter in the analysis circuit reduces the influence of low frequencies on the compression. Together with the appropriate attack and release settings, these measures ensure that the VTC is able to compress the sum without audible pumping, even with a compression of up to 6 dB.
The signal passes through a total of 3 transformers and 4 triode tubes per channel in the VTC.
Why is that important? Tubes (especially triodes) add overtones to the signal that the human ear perceives as pleasant and improves the perception of the individual sound sources. The individual instruments receive an additional presence through the tube. Transformers convert the current to a magnetic field and back as current and their non-linearities to provide a pleasant compression of the sound before it is compressed. The bass becomes tidier and more defined. The treble is pleasantly rounded off.
FEATURES:

Stereo or dual mono
Class-A circuit
All tube signal path
Stepped potentiometers
Transformer balanced XLR inputs and outputs
Frequency response: 20 Hz – 40 kHz ±1.5 dB
Dynamic Range: >110 dB un-weighted
Crosstalk attenuation L/R >90 dB @ 1 kHz
Internal power supply (25 W) with high-quality toroidal transformer
Height: 132 mm (3 units), Width: 483 mm, Depth: 250 mm
New: Lowcut filter in side chain 60/120 Hz






PRODUCT SPECIFICATIONS



CONDITION
New


CHANNELS
Dual-Channel


CHASSIS
19-inch Rack-mount


RACK SPACES
3u


INPUT CONNECTORS
Analog XLR


OUTPUT CONNECTORS

Analog XLR




www.music-blvd.com $1,850
